Sony HCD-RX9 - Printed Wiring Boards; CD Section Printed Wiring Board

– 37 – – 38 –
HCD-GRX8/R800/RX88/RX99

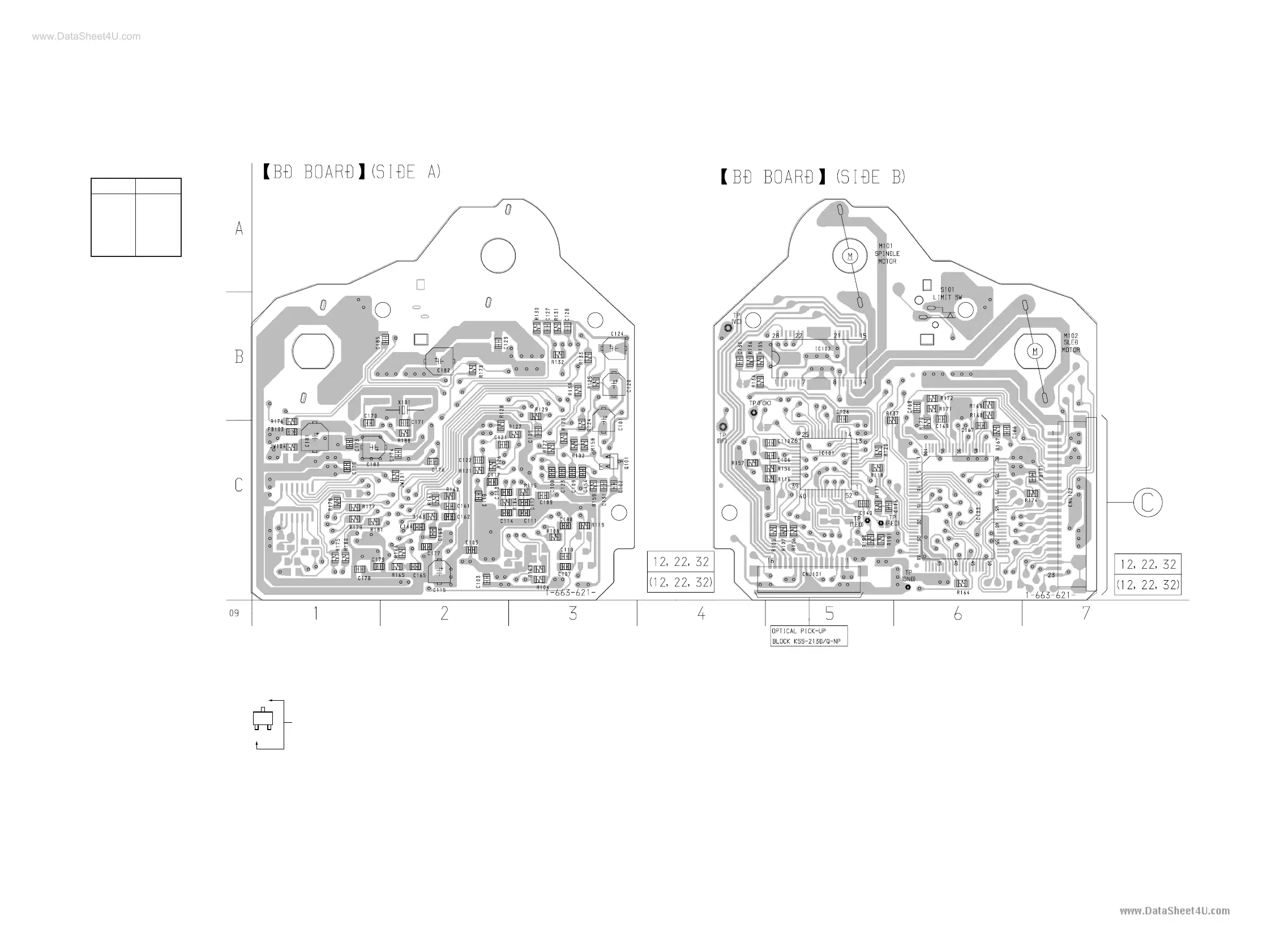

7-3. PRINTED WIRING BOARD — CD SECTION —
• See page 20 for Circuit Boards Location.
Ref. No. Location
• Semiconductor
Location
IC101 C-5
IC102 B-5
IC103 C-6
Q101 C-3
• Indication of transistor
(Page 38)
Q
C
These are omitte
d
EB
