Sony HCD-RX9 - Printed Wiring Boards; Power Section Printed Wiring Board

– 63 – – 64 –
HCD-GRX8/R800/RX88/RX99

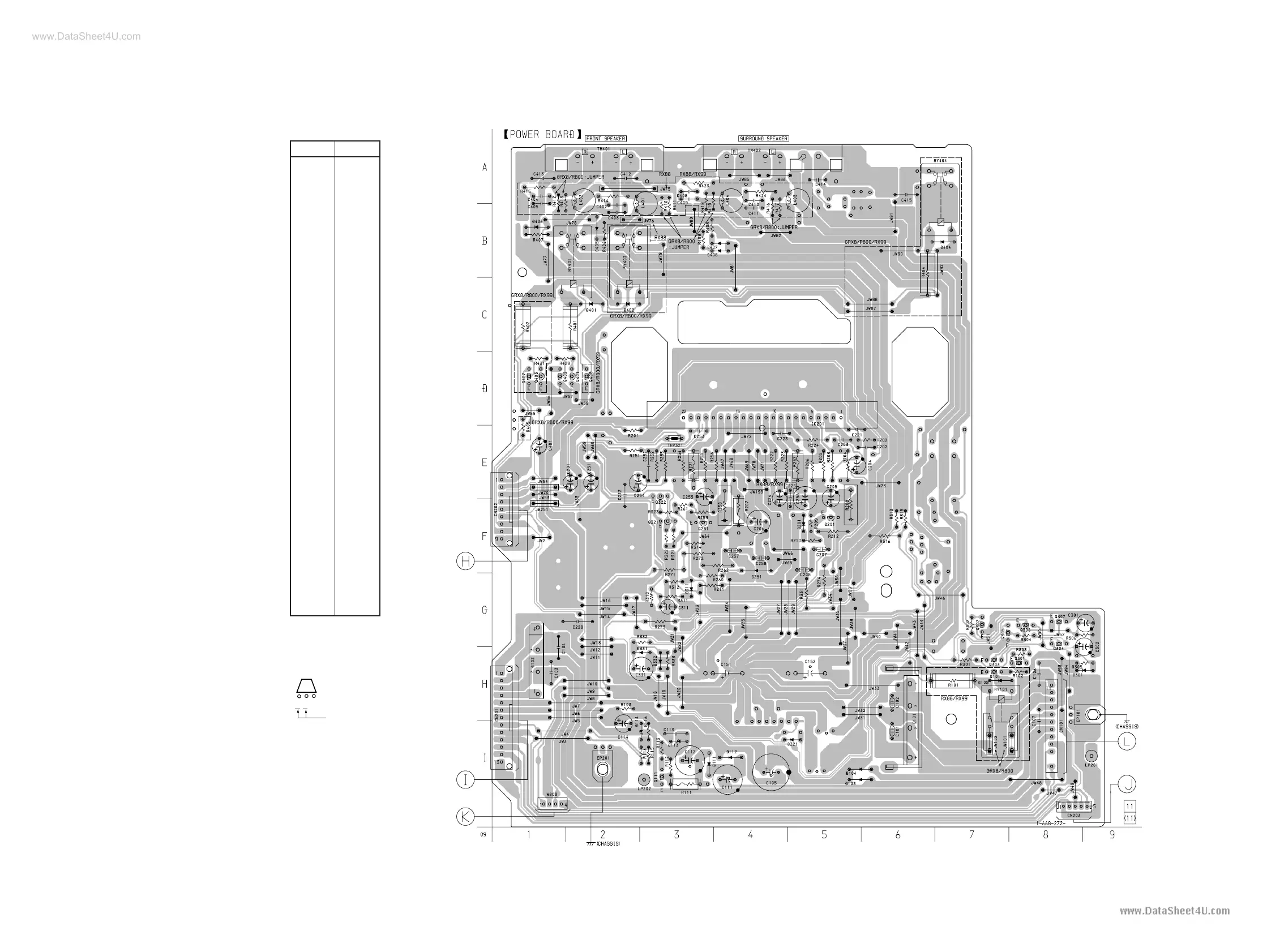

7-18. PRINTED WIRING BOARD – POWER SECTION –
• See page 20 for Circuit Boards Location.
Ref. No. Location
• Semiconductor
Location
D101 H-6
D102 H-1
D103 I-5
D104 I-5
D105 H-7
D111 I-3
D112 I-4
D113 I-3
D114 I-3
D201 F-5
D251 F-4
D301 H-9
D311 G-3
D321 I-5
D331 H-3
D332 H-3
D401 C-2
D402 C-2
D404 B-7
D405 B-2
D406 B-1
D407 B-4
D408 B-4
IC201 D-5
Q101 H-7
Q111 I-3
Q201 F-5
Q251 F-3
Q301 H-8
Q302 G-7
Q303 H-7
Q304 G-8
Q305 G-7
Q306 G-8
Q307 G-8
Q321 F-3
Q322 E-3
Q401 D-2
Q402 D-1
Q403 D-1
Q407 D-1
Q408 D-2
• Indication of transistor
(Page 52)
(Page 51)
(Page 62)
(Page 62)
(Page 69)
C
These are omitted
EB
