Sony HCD-RX9 - Printed Wiring Boards; Main Section Printed Wiring Board

– 51 – – 52 –
HCD-GRX8/R800/RX88/RX99

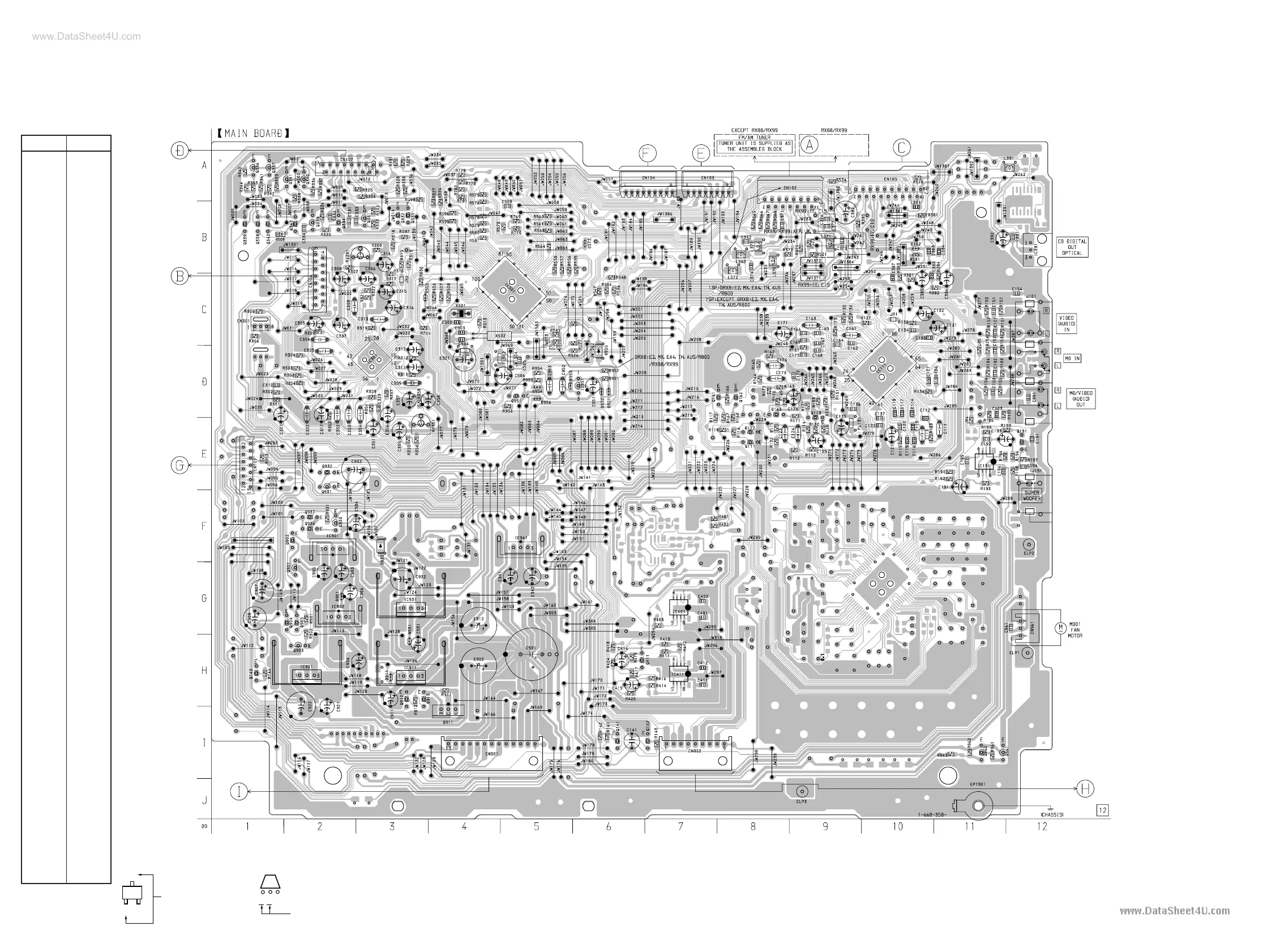

7-11. PRINTED WIRING BOARD – MAIN SECTION –
• See page 20 for Circuit Boards Location.
Ref. No. Location
• Semiconductor
Location
D381 B-10
D382 B-10
D502 C-3
D508 B-1
D572 B-6
D901 G-2
D911 H-3
D931 H-3
D932 F-3
D951 D-6
D952 D-6
D953 D-5
D954 D-5
D955 D-6
D956 D-5
IC111 D-10
IC191 E-11
IC301 D-3
IC391 B-12
IC401 G-7
IC411 H-7
IC501 C-5
IC901 F-2
IC902 G-2
IC911 H-3
IC921 H-2
IC931 G-3
IC941 F-5
IC951 D-6
Q111 E-8
Q112 E-8
Q113 E-9
Q141 I-6
Q142 I-7
Q143 H-1
Q161 D-8
Q162 D-8
Q163 D-8
Q191 E-12
Q331 B-3
Q332 B-3
Q333 B-2
Q334 B-2
Q335 B-3
Q336 A-1
Q337 A-1
Q338 B-1
Q339 B-1
Q340 A-2
Q341 A-2
Q342 B-1
Q343 B-2
Q411 H-6
Q901 G-2
Q902 F-2
Q903 H-2
Q904 G-2
Q905 G-2
Q911 I-4
Q912 H-3
Q913 H-3
Q931 E-2
Q932 E-2
Q933 F-2
Q934 F-2
Q937 F-2
Q951 D-5
Q961 I-11
Q962 I-11
• Indication of transistor
Q
C
These are omitte
d
EB
C
These are omitted
EB
(Page 70)
(Page 49)
(Page 71)
(Page 63)
(Page 63)
(Page 38)
(Page 81)(Page 81)
(Page 43, 44)
