Sony HCD-RX9 - Printed Wiring Boards; Deck Section Printed Wiring Board

– 49 – – 50 –
HCD-GRX8/R800/RX88/RX99

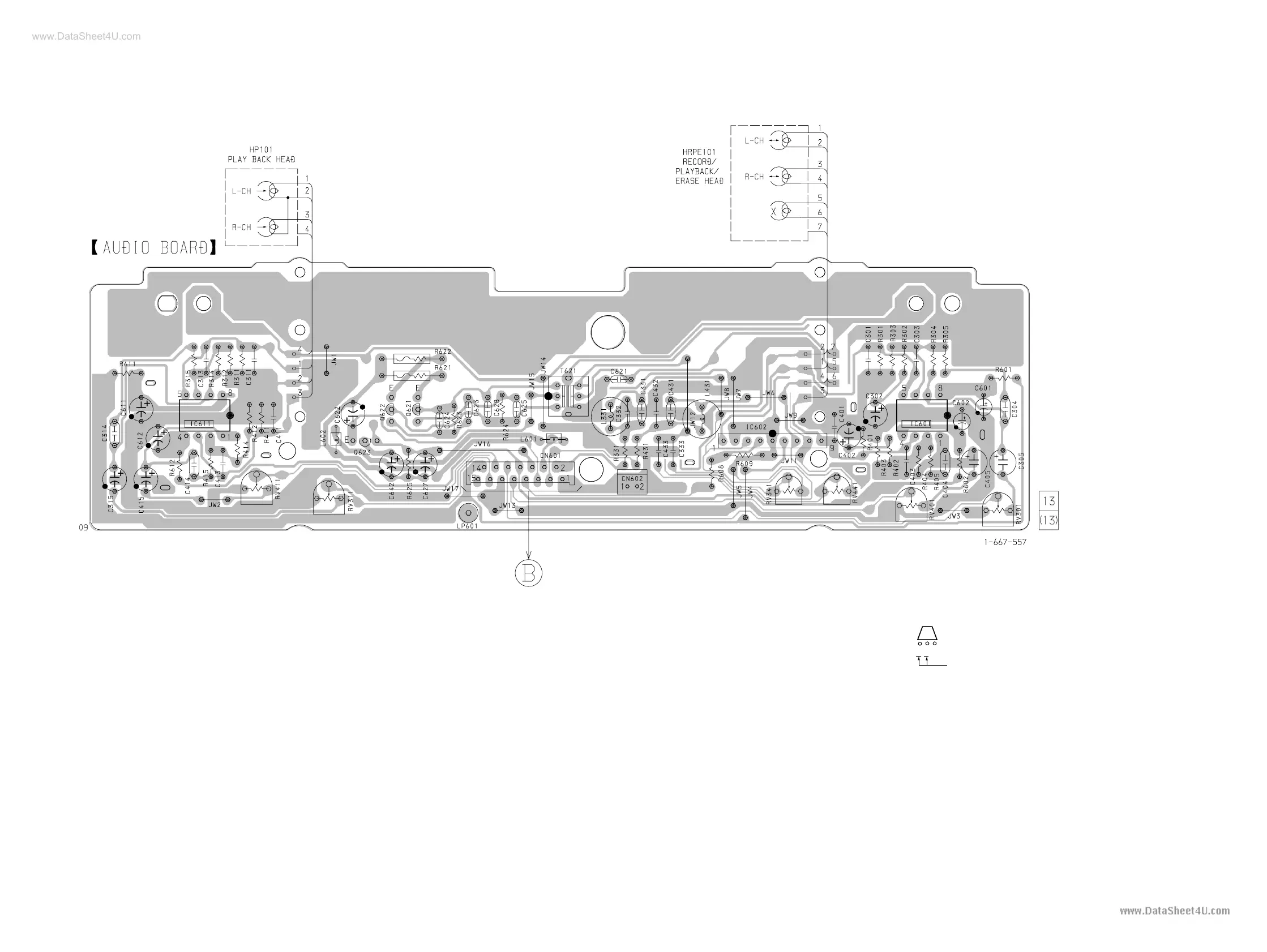

7-10. PRINTED WIRING BOARD – DECK SECTION –
• See page 20 for Circuit Boards Location.
• Indication of transistor
(Page 51)
C
These are omitted
EB
