Sony HCD-RX9 - Exploded View and Parts List; SS-GRX8;GRX10;RX99 Parts List

– 2 –
NOTE:
• -XX, -X mean standardized parts, so they may have
some difference from the original one.
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark

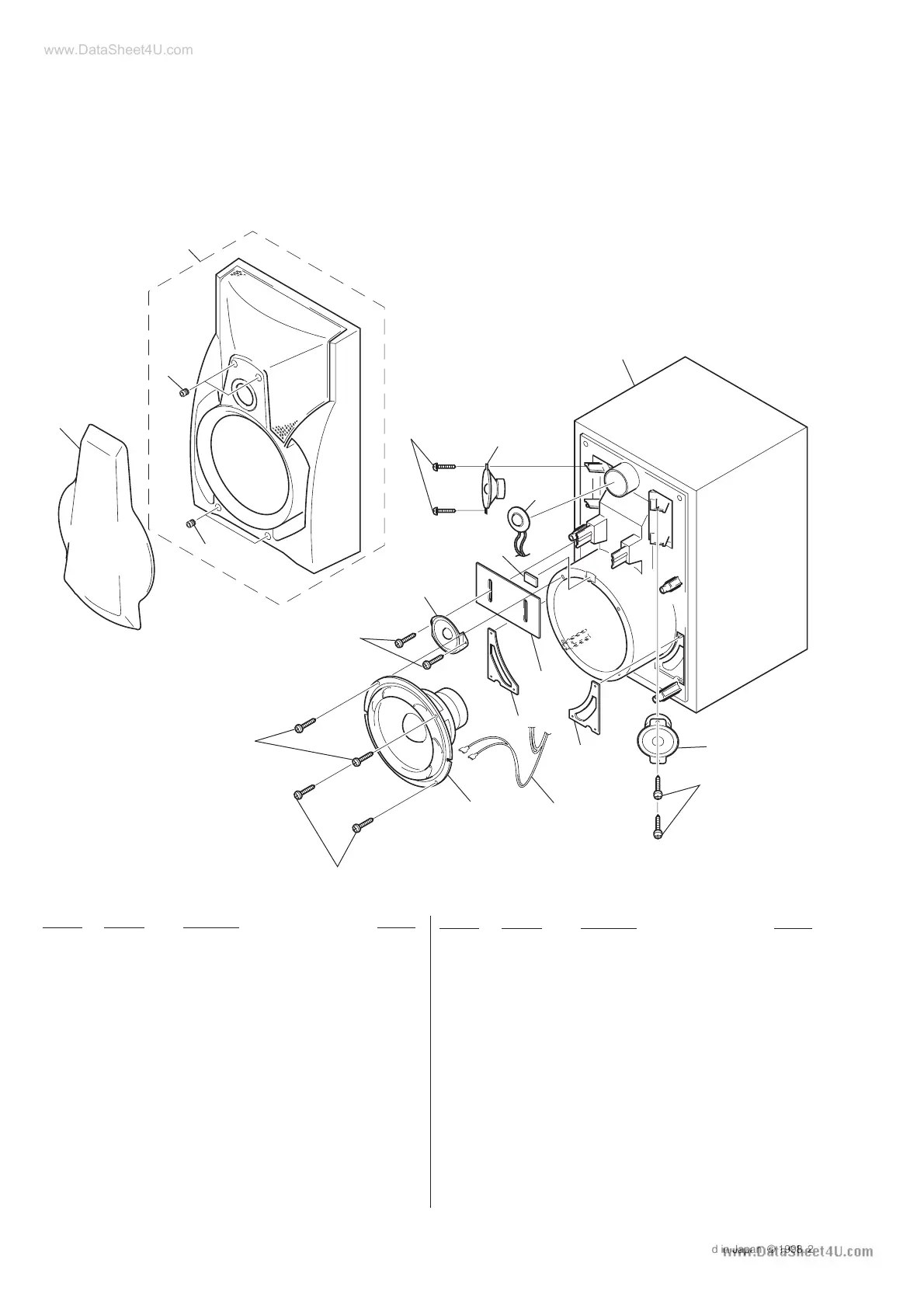

EXPLODED VIEW AND PARTS LIST
1 4-874-614-21 SCREW (4) (3.5X14), TAPPING
2 4-997-191-01 PACKING
3 4-997-169-01 PACKING
* 4 A-4384-938-A CABINET ASSY, SPEAKER
(INCLUDING TERMINAL BOARD)(EXCEPT G, AED)
* 4 A-4384-965-A CABINET ASSY, SPEAKER
(INCLUDING TERMINAL BOARD)(G, AED)
5 X-4949-353-1 FRAME ASSY, GRILLE
6 X-4949-354-1 PANEL ASSY, FRONT
* 7 4-963-075-01 CATCHER
8 1-783-580-11 CORD
9 4-942-029-01 PACKING
SP1 1-505-841-11 SPEAKER (2cm)
SP2 1-505-510-11 SPEAKER (5cm) (RX99)
SP2 1-505-583-11 SPEAKER (5cm) (GRX8/GRX10)
SP3 1-505-518-11 SPEAKER (5cm) (GRX8/GRX10)
SP3 1-505-861-11 SPEAKER (5cm) (RX99)
SP4 1-505-510-11 SPEAKER (5cm) (RX99)
SP4 1-505-583-11 SPEAKER (5cm) (GRX8/GRX10)
SP5 1-505-857-11 SPEAKER (17cm) (RX99)
SP5 1-505-858-11 SPEAKER (17cm) (GRX8/GRX10)
************************************************************
ACCESSORIES & PACKING MATERIALS
********************************
1-769-306-11 CORD, SPEAKER
3-862-818-11 MANUAL, INSTRUCTION
(ENGLISH,FRENCH,GERMAN,SWEDISH,RUSSIAN) (RX99)
Sony Corporation
Home A&V Products Company
9-922-763-11
98B091671-1
Printed in Japan © 1998. 2
Published by General Engineering Dept.
(Shibaura)
SS-GRX8/GRX10/RX99
• Abbreviation
G : German model
AED : North European model
