Sony HCD-RX9 - Printed Wiring Boards; Display Section Printed Wiring Board

– 71 – – 72 –
HCD-GRX8/R800/RX88/RX99

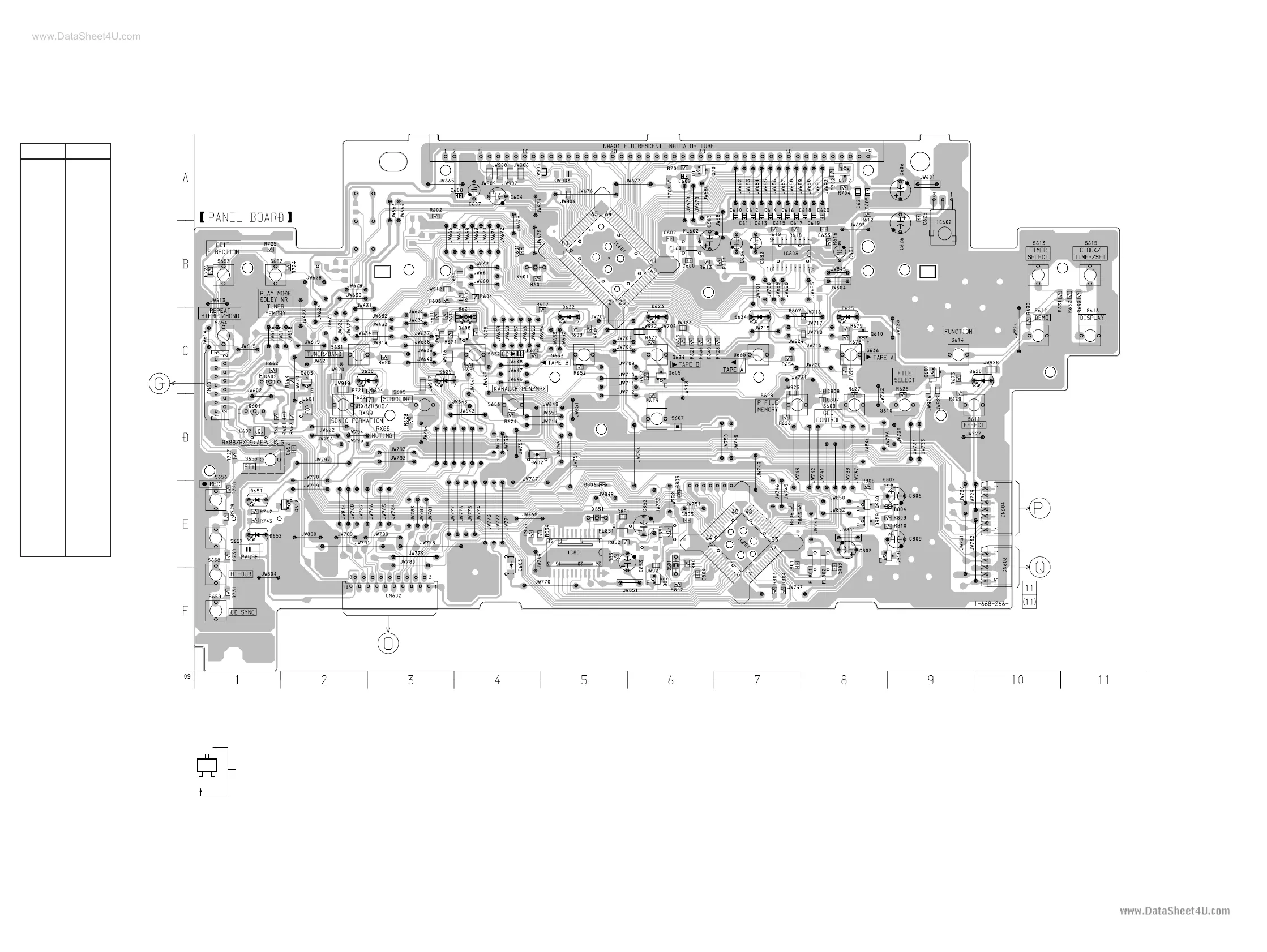

7-24. PRINTED WIRING BOARD – DISPLAY SECTION –
• See page 20 for Circuit Boards Location.
Ref. No. Location
• Semiconductor
Location
• Indication of transistor
D601 D-2
D602 D-4
D603 D-4
D620 C-10
D621 C-4
D622 C-5
D623 C-6
D624 C-7
D625 C-8
D629 C-3
D630 C-2
D651 E-1
D652 E-1
D804 I-17
D805 E-6
D806 E-5
D807 E-9
IC601 B-5
IC602 A-9
IC603 B-7
IC801 E-7
IC851 E-5
Q601 D-1
Q602 C-1
Q603 C-2
Q607 C-9
Q608 C-4
Q609 C-6
Q610 C-8
Q618 E-2
Q701 A-6
Q702 A-8
Q851 F-6
Q958 E-9
Q959 E-8
Q960 E-8
(Page 51)
(Page 77)
(Page 78)
(Page 78)
Q
C
These are omitte
d
EB
