– 100 –
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
* 56 4-988-533-01 HOLDER, PWB
57 4-965-822-01 FOOT
! 58 1-569-007-11 ADAPTOR, CONVERSION 2P (E3)
! 58 1-569-008-11 ADAPTOR, CONVERSION 2P (SP,MY,EA3)
! 58 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (UK,HK)
! 59 1-558-943-41 CORD, POWER (E2,E3,MX,)
! 59 1-575-651-21 CORD, POWER
(AEP,UK,G,EE,CIS,SP,MY,HK,TW,EA3,EA4,AR)
! 59 1-696-845-31 CORD, POWER (AUS)
! 59 1-751-326-21 CORD, POWER (TH)
60 1-773-011-11 WIRE (FLAT TYPE)(15 CORE)(170mm)
61 1-773-112-11 WIRE (FLAT TYPE)(19 CORE)(140mm)
! T501 1-431-708-11 TRANSFORMER, POWER (AEP,UK,G,EE,CIS,TH)
! T501 1-431-709-11 TRANSFORMER, POWER
(E2,E3,SP,MY,MX,HK,EA3,EA4,TW,AUS,AR)
* 51 A-4407-260-A POWER BOARD, COMPLETE (GRX8/R800)
* 51 A-4407-300-A POWER BOARD, COMPLETE (RX88)
* 51 A-4407-722-A POWER BOARD, COMPLETE (RX99)
* 52 1-668-274-11 TRANSFORMER BOARD
* 53 A-4405-131-A MAIN BOARD, COMPLETE
(GRX8:E3,SP,MY,HK,TW,EA3)
* 53 A-4405-146-A MAIN BOARD, COMPLETE
(RX88/RX99:AEP,UK,G)
* 53 A-4407-252-A MAIN BOARD, COMPLETE (GRX8:E2,MX/R800)
* 53 A-4407-322-A MAIN BOARD, COMPLETE (RX99:EE,CIS)
* 53 A-4407-723-A MAIN BOARD, COMPLETE (GRX8:AUS)
* 53 A-4407-749-A MAIN BOARD, COMPLETE (GRX8:EA4,TH)
54 1-773-041-11 WIRE (FLAT TYPE) (17 CORE)
55 3-703-244-00 BUSHING (FBS001), CORD
(AEP,UK,G,EE,CIS,SP,MY,HK,TW,EA3,EA4,AUS,AR)
55 3-703-571-11 BUSHING (S) (4516), CORD (E2,E3,MX,TH)
The components identified by mark !
or dotted line with mark ! are critical
for safety.
Replace only with part number
specified.

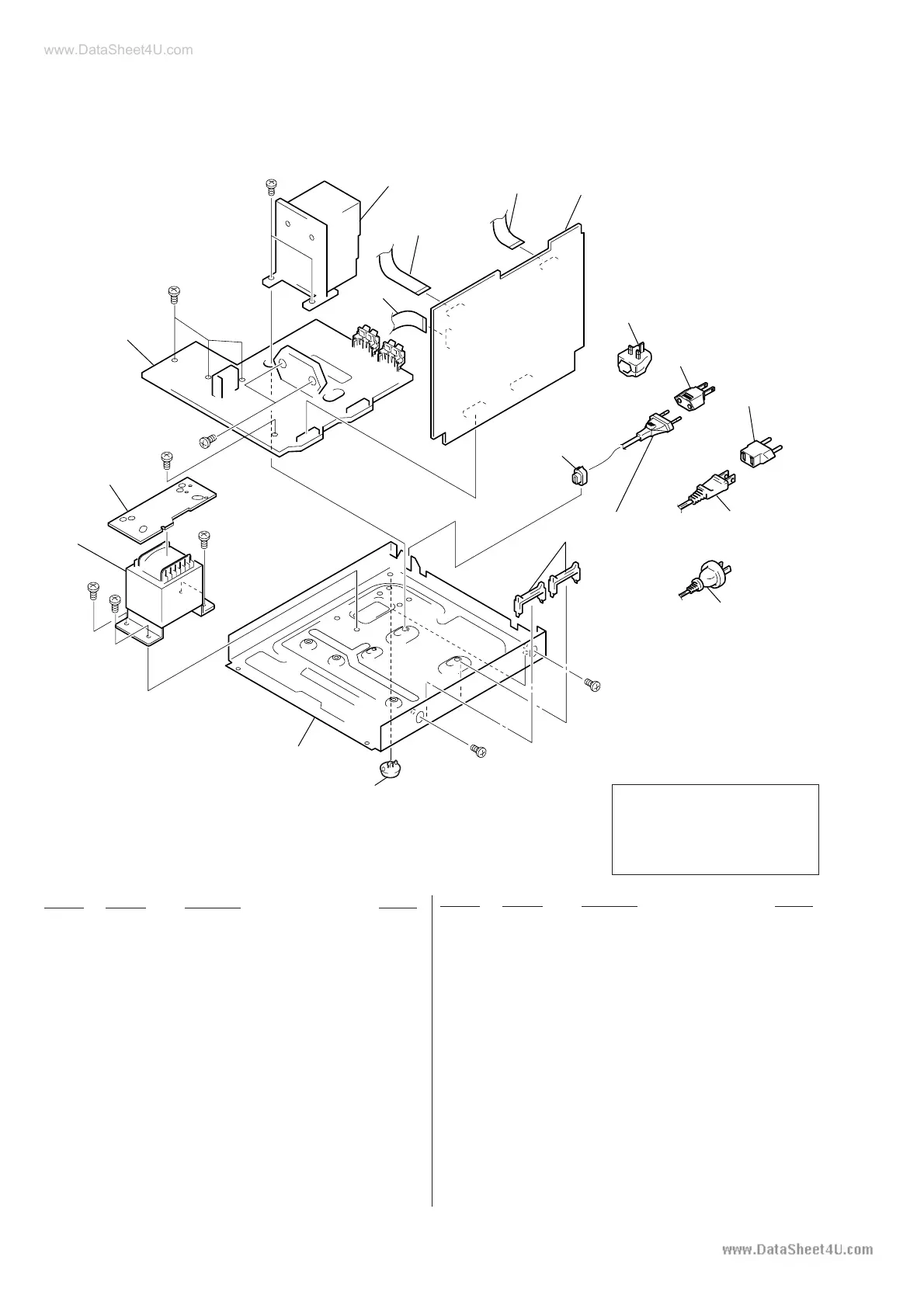

8-2. CHASSIS SECTION
51
52
53
54
61
60
55
#5
#5
#5
#5
T501
not supplied
not supplied
#5
#4
#6 #6
#6
56
57
58
(SP,MY,EA3)
58
(UK,HK)
58
(E3)
59
(AEP,UK,G,EE,
CIS,SP,MY,HK,
TW,EA3,EA4,AR)
59
(E2,E3,MX,TH)
59
(AUS)
To Next Page
