Sony HCD-RX9 - Printed Wiring Boards; Tuner Section Printed Wiring Board (AEP, UK, German Model)

– 43 –
HCD-GRX8/R800/RX88/RX99
Ref. No. Location
• Semiconductor
Location
D21 D-1
D41 D-2
D42 E-3
D1751 F-2
IC21 D-1
IC41 C-3
IC1751 E-1
IC1752 F-3
Q1 D-1
Q2 D-1
Q3 C-2
Q4 C-2
Q5 C-2
Q9 B-1
Q11 B-3
Q12 A-3
Q13 A-2
Q14 A-2
• Indication of transistor

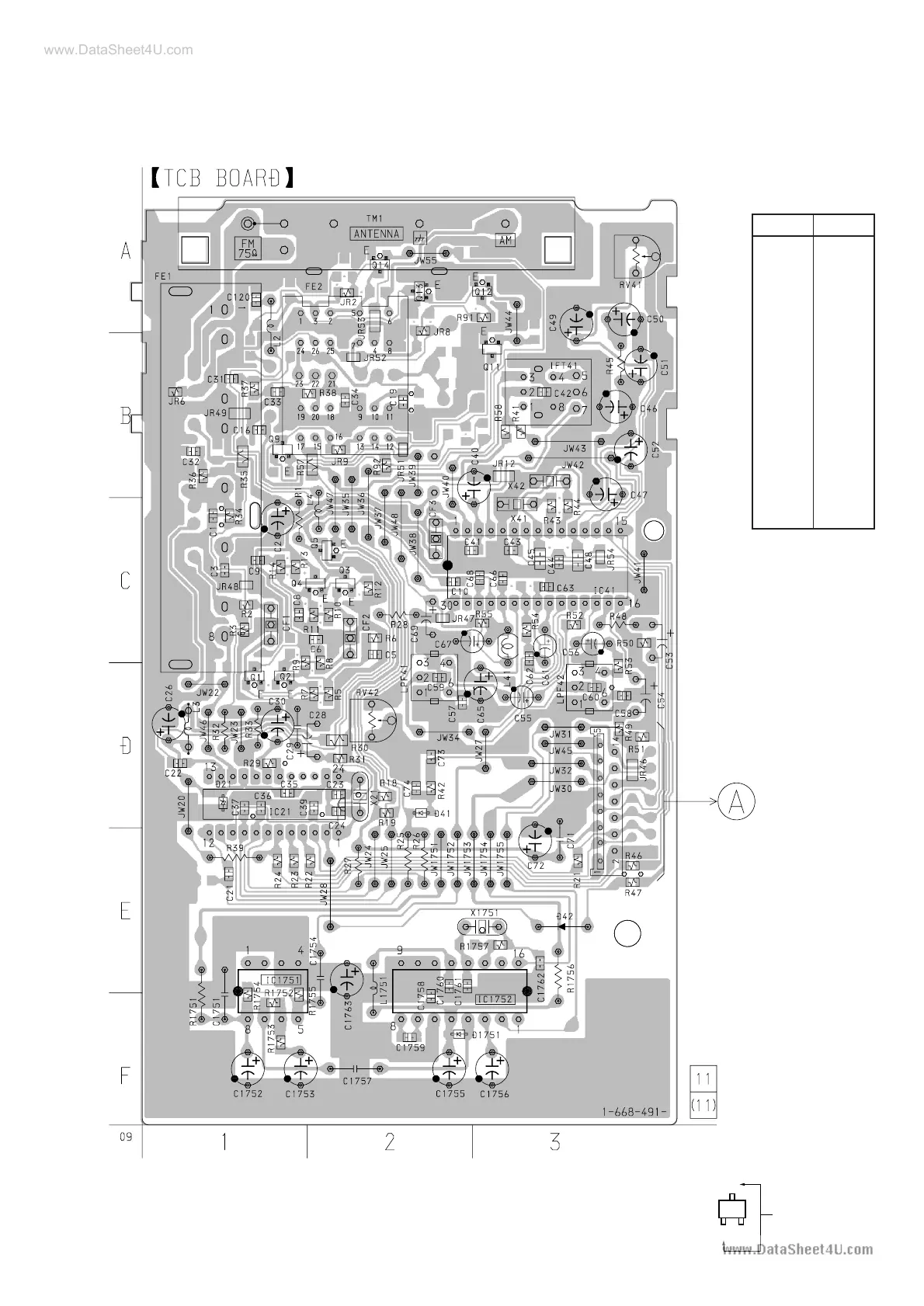

7-6. PRINTED WIRING BOARD – TUNER SECTION – (AEP, UK, German model)
• See page 20 for Circuit Boards Location.
(Page 52)
Q
C
These are omitte
d
EB
