Sony HCD-SC8 - 3-4. Power Board

12
HCD-SC5/SC6/SC8

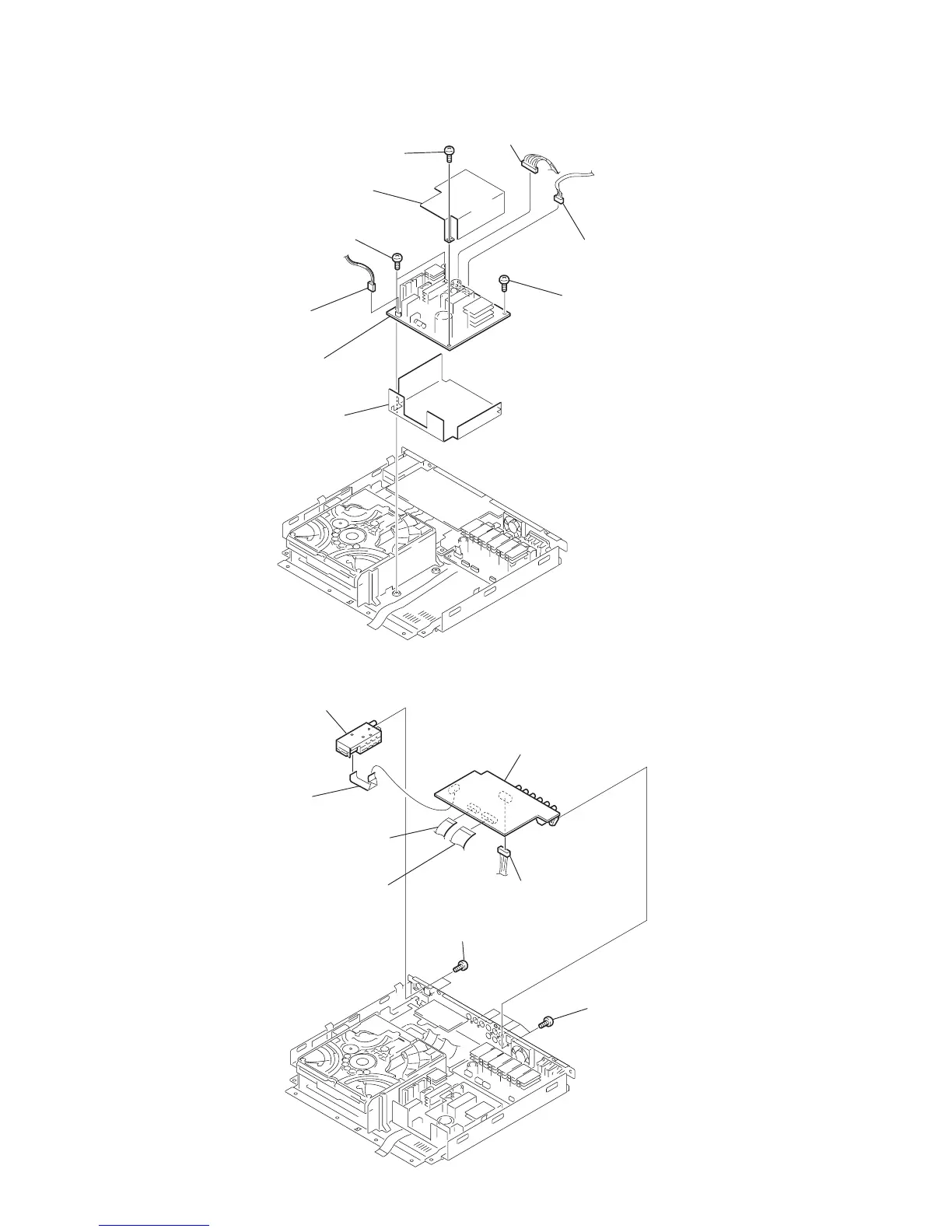

3-4. POWER BOARD
9 POWER board
4 screw
(+BV SUMITITE B3)
7 screw
(+BV SUMITITE B3)
6 two screws
(+BV SUMITITE B3)
3 connector (CN902)
2 connector (CN904)
1 connector (CN903)
5 power sheet
8 power sheet
3-5. I/O BOARD
4 connector (CN205)
(used only for AEP,UK and
Russian models)
2 wire (flat type)
(CN203)
5 wire (flat type)
3 wire (flat type)
(CN202)
7 two screws
(+BVTP 3
× 8)
1 five screws
(+BVTP 3
× 8
)
6 I/O board
8 tuner unit
