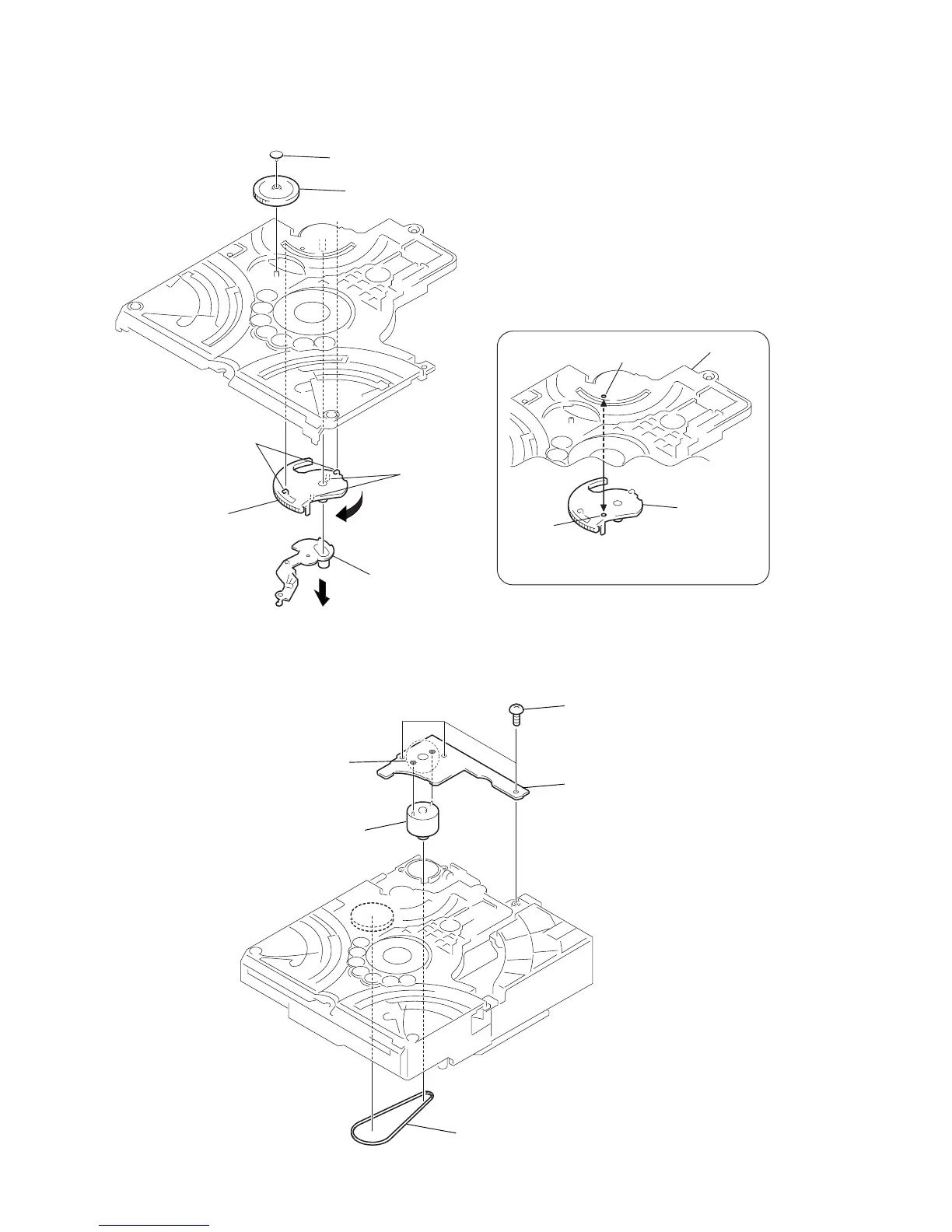

3-11. DISC STOP LEVER, DISC SENSOR LEVER
chassis (top)
hole
Install the disc stop lever so that the both holes
are aligned.
hole
1 gear (cap)
3 two claws
5 two hooks
6 disc stop lever
disc stop lever
4 disc sensor lever
PRECAUTION DURING DISC STOP LEVER INSTALLATION
2 gear (IDL L)
3-12. DRIVER BOARD
3 Remove soldering
from the two points.
2 three screws
(+BVTP 2.6
× 8
)
5 DRIVER board
4 motor (pully) assy
1 belt (MOT)
