HCD-SC5/SC6/SC8
6-5. PRINTED WIRING BOARD – DRIVER SECTION – • See page 30 for Circuit Boards Location.
• : Uses unleaded solder.

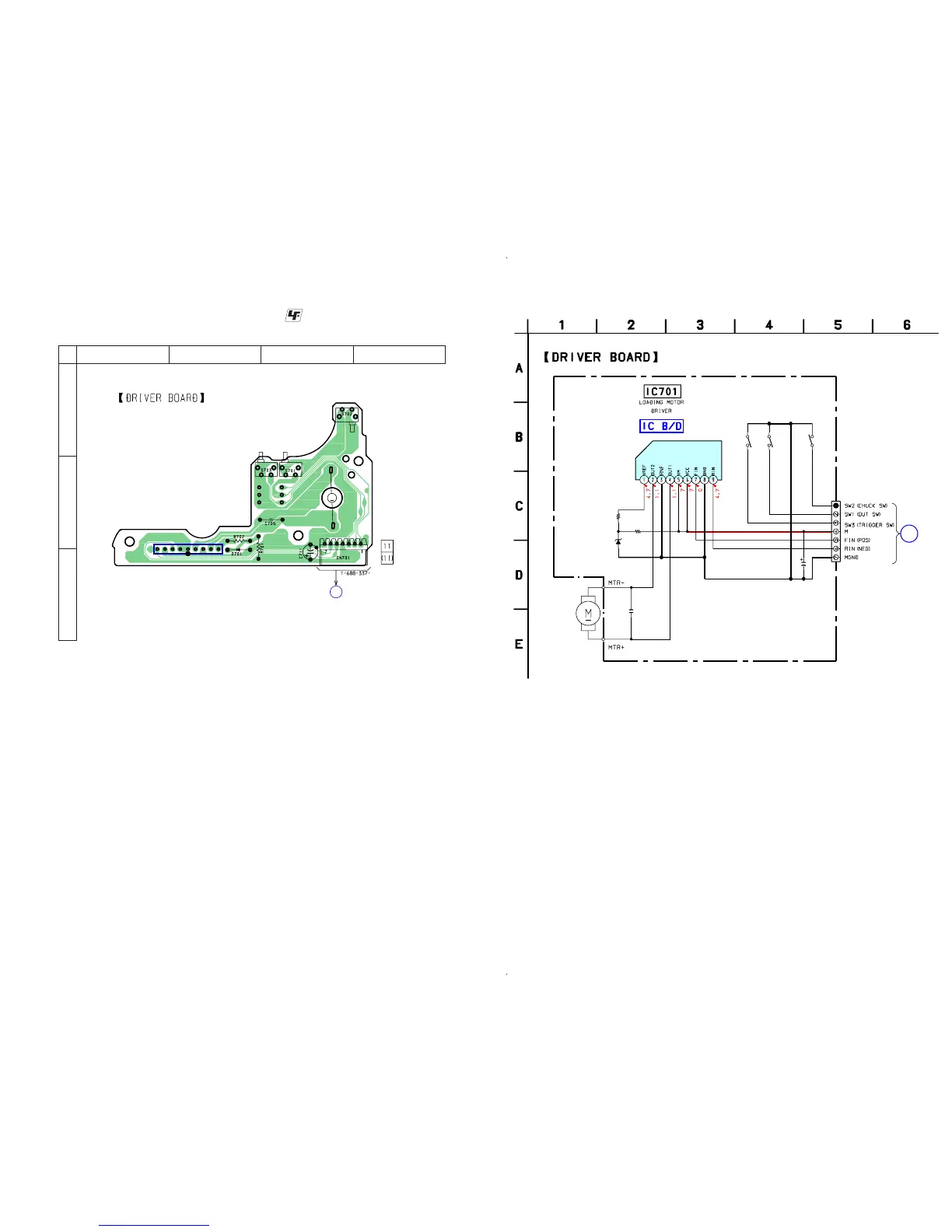

6-6. SCHEMATIC DIAGRAM – DRIVER SECTION – • See page 65 for IC Block Diagram.
12
A
B
C
34
IC701
TO
DVD
BOARD
CN007
(Page 40)
M701
(LOADING)
(TRIGGER) (DISC IN/OUT)
(CHUKING)
1
9
M
B
No mark : DVD STOP
+7V
B
TO
DVD BOARD (9/10)
CN007
(Page 50)
IC701
CN701
R702
R701
C711
C705
D701
S703 S701 S702
M701
BA6956AN
7P
CT-L
100
680
10
50V
0.01
MTZJ-T-77-4.7C
(TRIGGER) (DISC IN/OUT) (CHUKING)
(LOADING)
