Sony HCD-SC8 - 7-3. Chassis Section-1

96
HCD-SC5/SC6/SC8

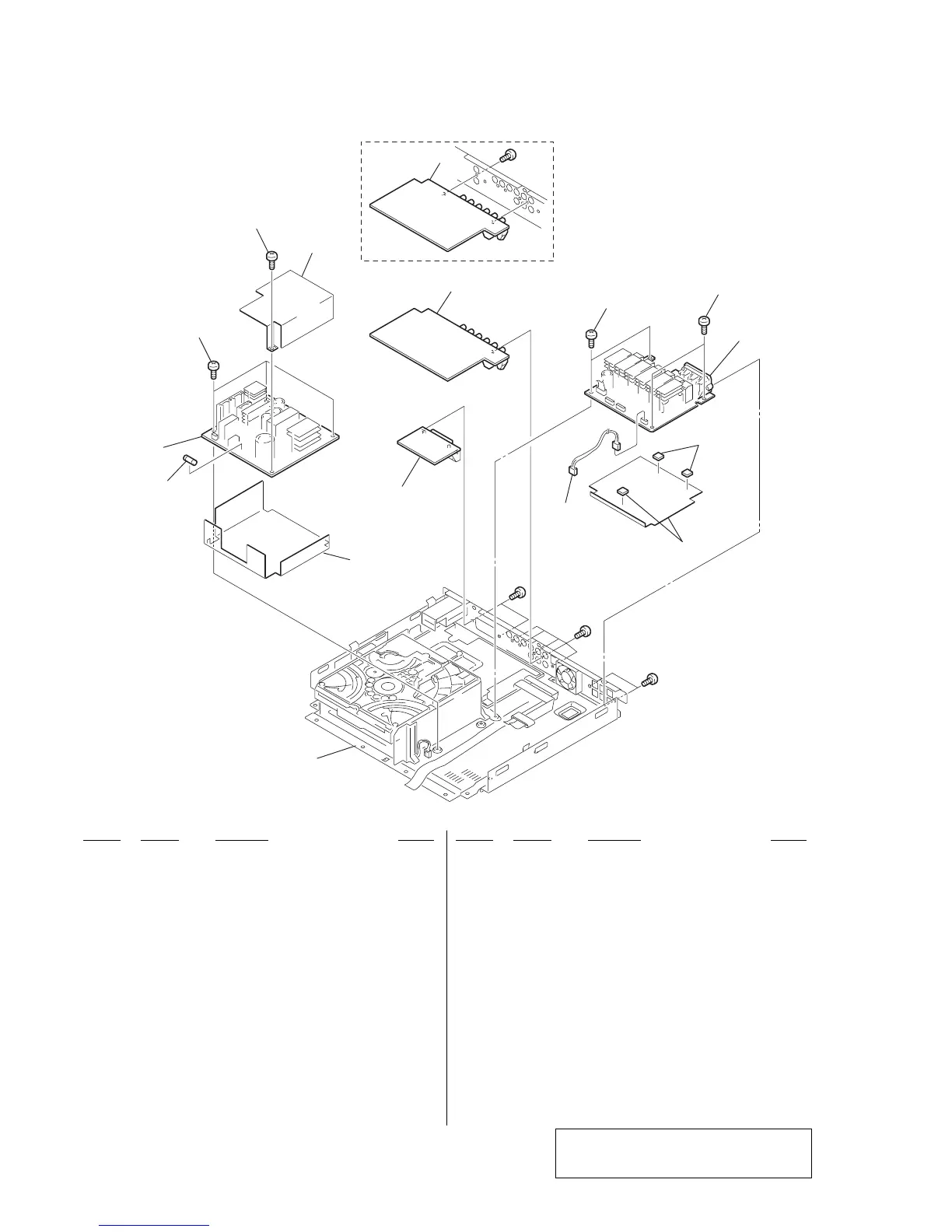

7-3. CHASSIS SECTION-1
101 1-468-790-11 POWER SWITCHING (including Ref.No.201)
(SC6:AEP,UK/SC8:AEP,UK)
101 A-4748-367-A POWER BOARD, COMPLETE
(SC5:AEP,UK,RU,SP,EA,HK,KR/SC6:RU,SP,EA,KR,AUS/
SC8:RU,SP,EA,HK,KR,AUS)
101 A-4749-310-A POWER BOARD, COMPLETE (SC8:MX)
101 A-4749-714-A POWER BOARD, COMPLETE (SC5:E32/SC8:E32)
101 A-4749-845-A POWER BOARD, COMPLETE (SC5:TW/SC8:TW)
102 A-4748-355-A I/O BOARD, COMPLETE
(SC5:AEP,UK,RU/SC6:AEP,UK,RU/SC8:RU)
102 A-4749-237-A I/O BOARD, COMPLETE (SC8:E32,MX)
102 A-4749-589-A I/O BOARD, COMPLETE (SC8:AEP,UK)
102 A-4749-712-A I/O BOARD, COMPLETE
(SC5:E32,HK,SP/SC6:EA,SP/SC8:HK,SP)
102 A-4749-752-A I/O BOARD, COMPLETE
(SC5:KR,EA/SC6:KR,AUS/SC8:KR,AUS,EA)
102 A-4749-857-A I/O BOARD, COMPLETE (SC5:TW/SC8:TW)
103 1-689-360-11 SCART BOARD (AEP,UK,RU)
104 A-4748-358-A AMP BOARD, COMPLETE
(SC5:AEP,UK,RU,KR,EA/SC6:AEP,UK,RU,KR,AUS)
104 A-4749-319-A AMP BOARD, COMPLETE (SC8:MX)
104 A-4749-707-A AMP BOARD, COMPLETE
(SC5:E32,HK,SP/SC6:EA,SP)
104 A-4749-778-A AMP BOARD, COMPLETE
(SC8:AEP,UK,RU,KR,EA,AUS)
104 A-4749-789-A AMP BOARD, COMPLETE (SC8:E32,HK,SP)
104 A-4750-126-A AMP BOARD, COMPLETE (SC8:TW)
105 3-970-608-01 SUMITITE (B3), +BV
0 F901 1-532-465-31 FUSE (T3.15AL/250V)
(EXCEPT SC5:TW/SC6:AEP,UK/SC8:AEP,UK,MX,TW)
0 F901 1-533-453-12 FUSE, GLASS TUBE (DIA. 5) (T5AL/125V)
(SC5:TW/SC8:MX,TW)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
104
#1
#1
#1
#1
chassis section-2
not supplied
not supplied
not supplied
105
105
105
105
101
103
102
102
F901
not supplied
not supplied
EXCEPT AEP, UK, RU
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
