Sony HCD-SC8 - Amp Section (Side B)

5353
HCD-SC5/SC6/SC8

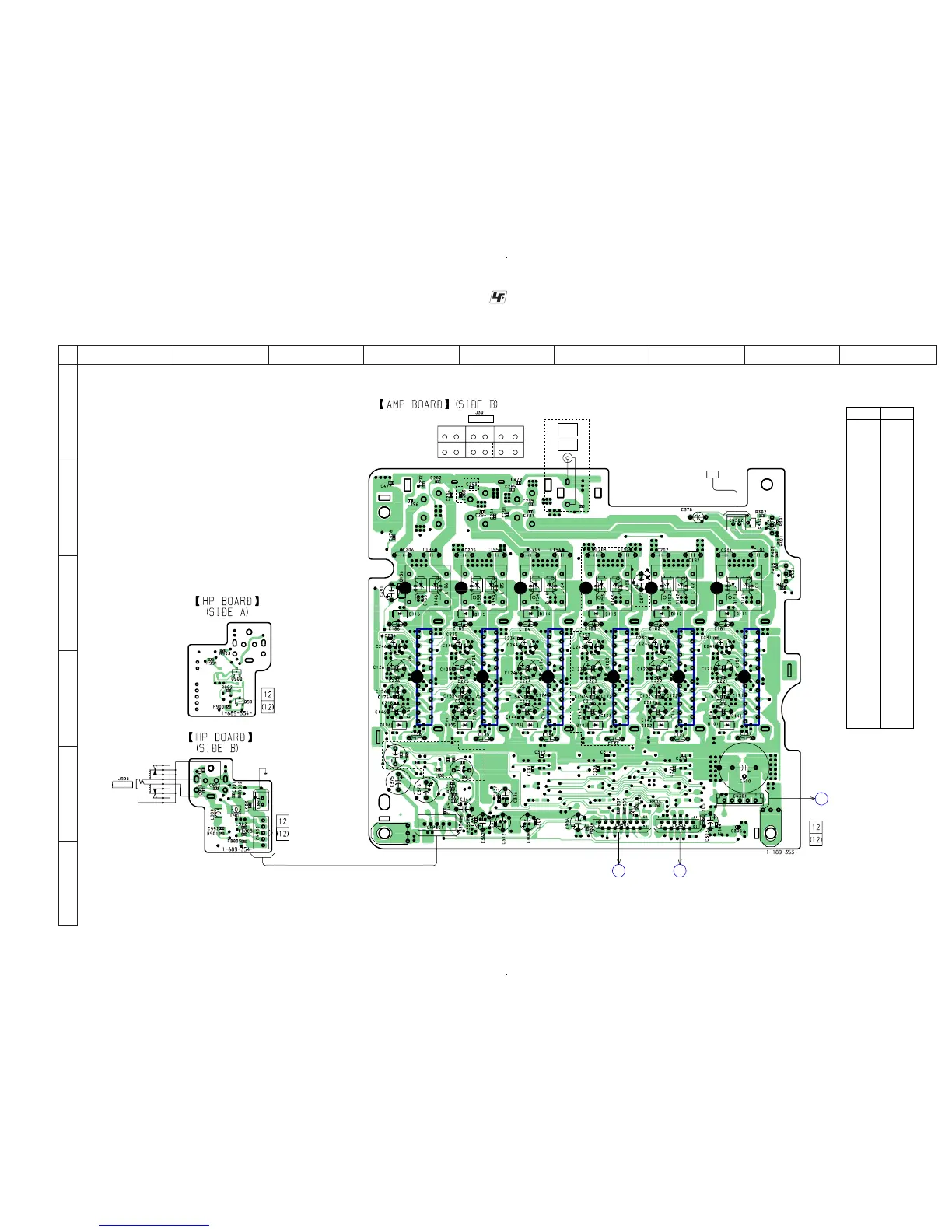

6-20. PRINTED WIRING BOARD – AMP SECTION (SIDE B) – • See page 30 for Circuit Boards Location.
• : Uses unleaded solder.
IC101 IC102 IC103 IC104 IC105 IC106
5
1
2
3
4
6
8
7
9
10
11
12
FRONT R
+
-
2
1
CEINTER
SPEAKER
+
-
6
5
FRONT L
+
-
10
9
REAR R
+
-
4
3
WOOFER
+
-
8
7
REAR L
+
-
12
11
FAN
TO
POWER
BOARD
CN904
L
TO
DVD
BOARD
CN001
G
(Page 61)
(Page 40)
TO
DVD
BOARD
CN004
F
(Page 40)
15
1
1
5
2
PHONES
E
E
E
E
E
12
A
B
C
D
E
F
3456789
SC5/SC6
SC5/SC6
SC5/SC6
C374
C380
R364
C381
R365
R368
R367
R352
C367
SC8
C369
R366
R362
SC8
J302
R370
AUDIO
OUT
SUB
WOOFER
(CHASSIS GND)
Ref. No. Location
D101 D-7
D102 D-6
D103 D-6
D104 D-5
D105 D-4
D106 D-4
D111 C-7
D112 C-7
D113 C-6
D114 C-5
D115 C-5
D116 C-4
D141 C-7
D142 C-7
D143 C-6
D144 C-5
D145 C-5
D146 C-4
D151 C-7
D152 C-7
D153 C-6
D154 C-5
D155 C-5
D156 C-4
IC101 D-8
IC102 D-7
IC103 D-6
IC104 D-5
IC105 D-5
IC106 D-4
Q303 B-8
Q304 B-8
Q401 C-8
Q900 D-2
Q901 D-2
• Semiconductor
Location
