Sony HCD-SC8 - Scart Board, DVD Board; Amp Board

13
HCD-SC5/SC6/SC8

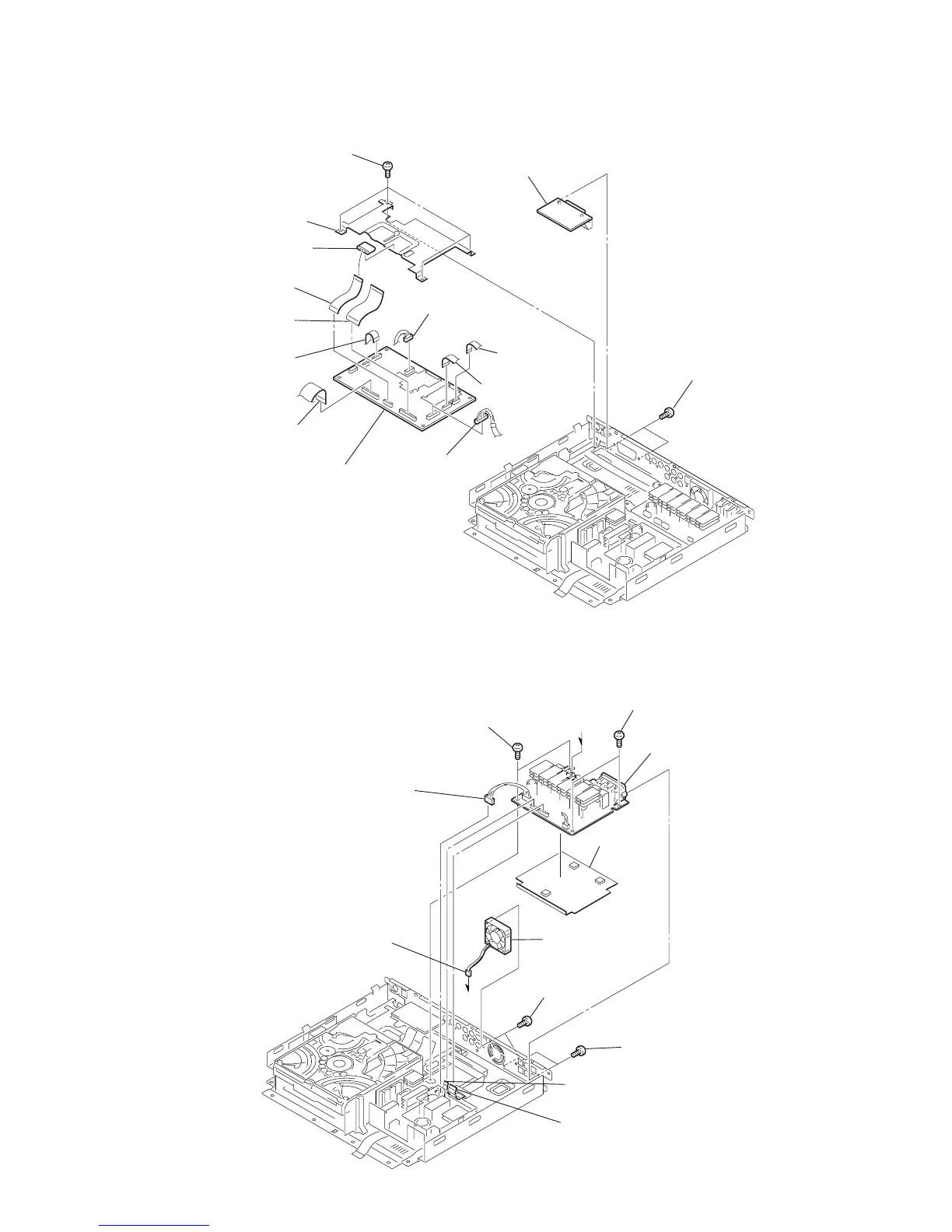

3-6. SCART BOARD, DVD BOARD
3 four screws
(+BV SUMITITE B3)
q; connector
(CN008)
qd connector
(CN007)
6 wire (flat type)
(CN005)
7 wire (flat type)
(CN401)
8 wire (flat type)
(CN003)
9 wire (flat type)
(CN002)
qa wire (flat type)
(CN004)
qs wire (flat type)
(CN001)
1 two screws (+BVTP 3 × 8)
(used only for AEP,UK an
d
Russian models)
2 SCART board
(used only for AEP,UK and
Russian models)
qf DVD board
4 ferrite core
5 heat sink DVD
3-7. AMP BOARD
8 two screws
(+BV SUMITITE B3)
9 two screws
(+BV SUMITITE B3
)
2 connector
(CN302)
5 connector
(CN904)
3 DC fan
q; amp sheet
qa AMP board
6 wire (flat type)
(CN304)
7 wire (flat type)
(CN303)
1 two screws
(+BVTT 4 × 8)
4 two screws
(+BVTP 3 × 8)
