Sony HCD-SC8 - Front Panel Section

5959
HCD-SC5/SC6/SC8

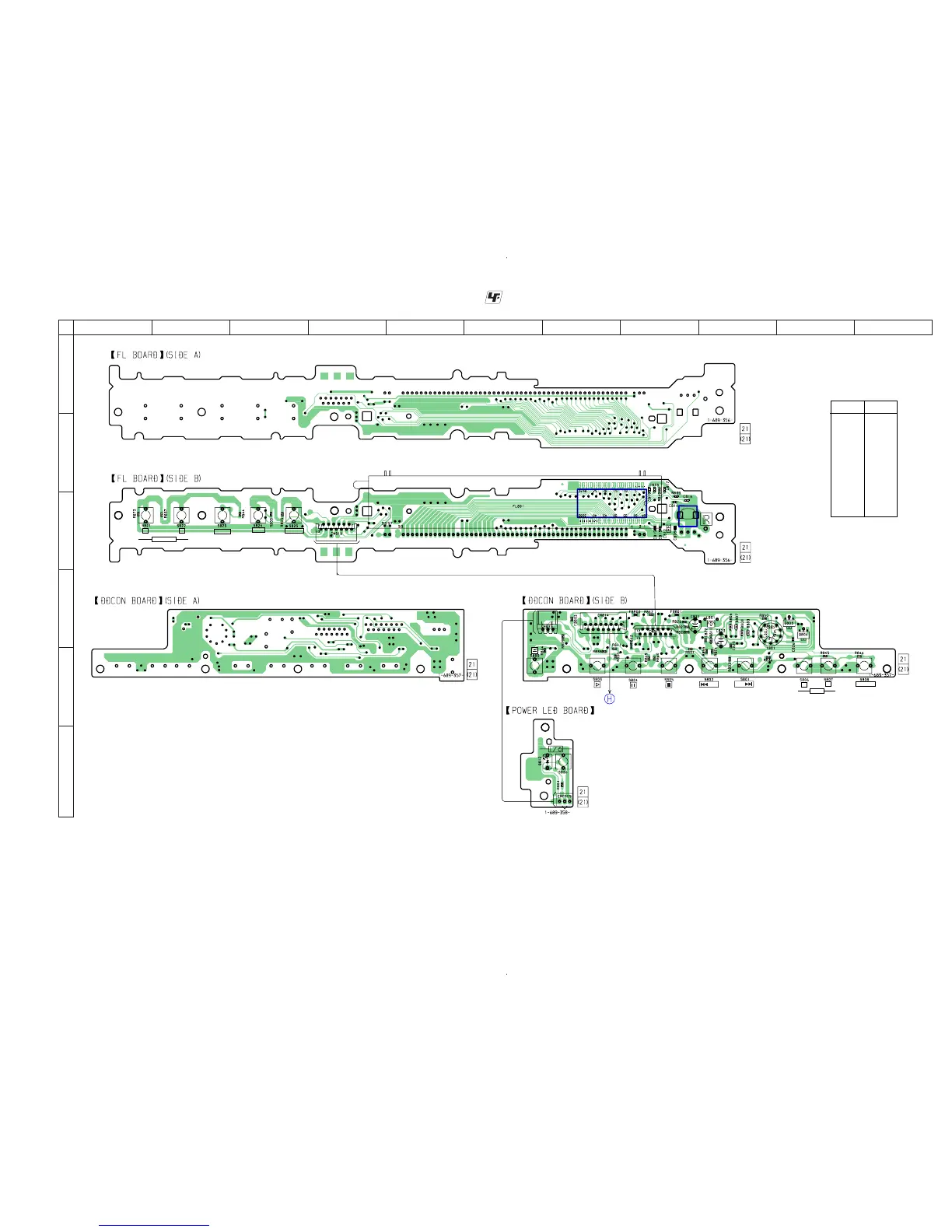

6-26. PRINTED WIRING BOARD – FRONT PANEL SECTION – • See page 30 for Circuit Boards Location.
• : Uses unleaded solder.
• Semiconductor
Location
Ref. No. Location
D806 D-9
D807 D-9
D808 D-9
D809 D-9
D810 D-9
D812 F-6
IC801 C-9
IC802 C-7
Q803 D-10
Q804 D-10
IC801
IC802
SOUND FIELD
DISPLAY
FUNCTION
BAND
-+
FLUORESCENT INDICATOR TUBE
PREV
NEXT
VOLUME
-
+
BASS LEVEL
DVD
BOARD
CN005
(Page 40)
12
A
B
C
D
E
F
34567891011
321
13
