HCD-SHAKE5/SHAKE6D
SECTION 7
EXPLODED VIEWS
Note:
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Items marked “*” are not stocked since
they are seldom required for routine
service.
Some delay should be anticipated
when ordering these items.
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Accessories are given in the last of this
parts list.
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.

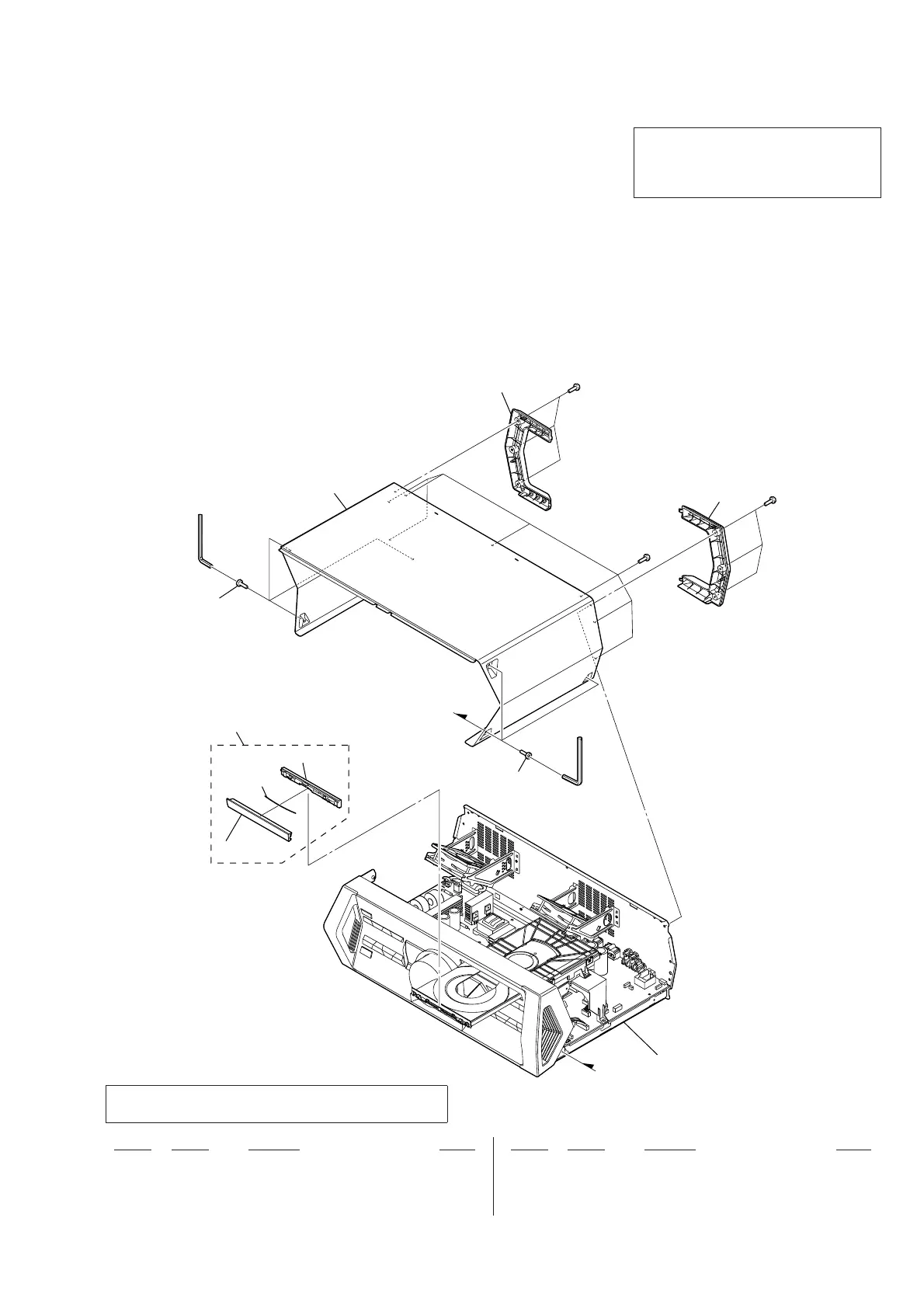

7-1. OVERALL CASE SECTION
1 4-462-227-01 PROTECTOR, REAR L
2 4-462-226-01 PROTECTOR, REAR R
3 4-464-752-01 SCREW, TAPPING (HEX)
4 4-462-250-01 CASE, OVERALL
5 X-2587-390-1 PANEL, LOADING ASSY
6 4-295-431-01 SPRING, LOADING
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
• Abbreviation
AUS : Australian model
E2 : 120 V AC area in E model
E4 : African model
E12 : 220 – 240 V AC area in E model
E51 : Chilean and Peruvian models
EA : Saudi Arabia model
MX : Mexican model
MY : Malaysia model
RU : Russian model
SAF : South African model
TH : Thai model
back panel section
A
3
6
5
not supplied
not supplied
#1
#1
#1
1
3
4
2
Note: To disassemble the CASE, OVERALL, allen key
is required to unscrew the SCREW, TAPPING (HEX).
