HCD-SHAKE5/SHAKE6D
9

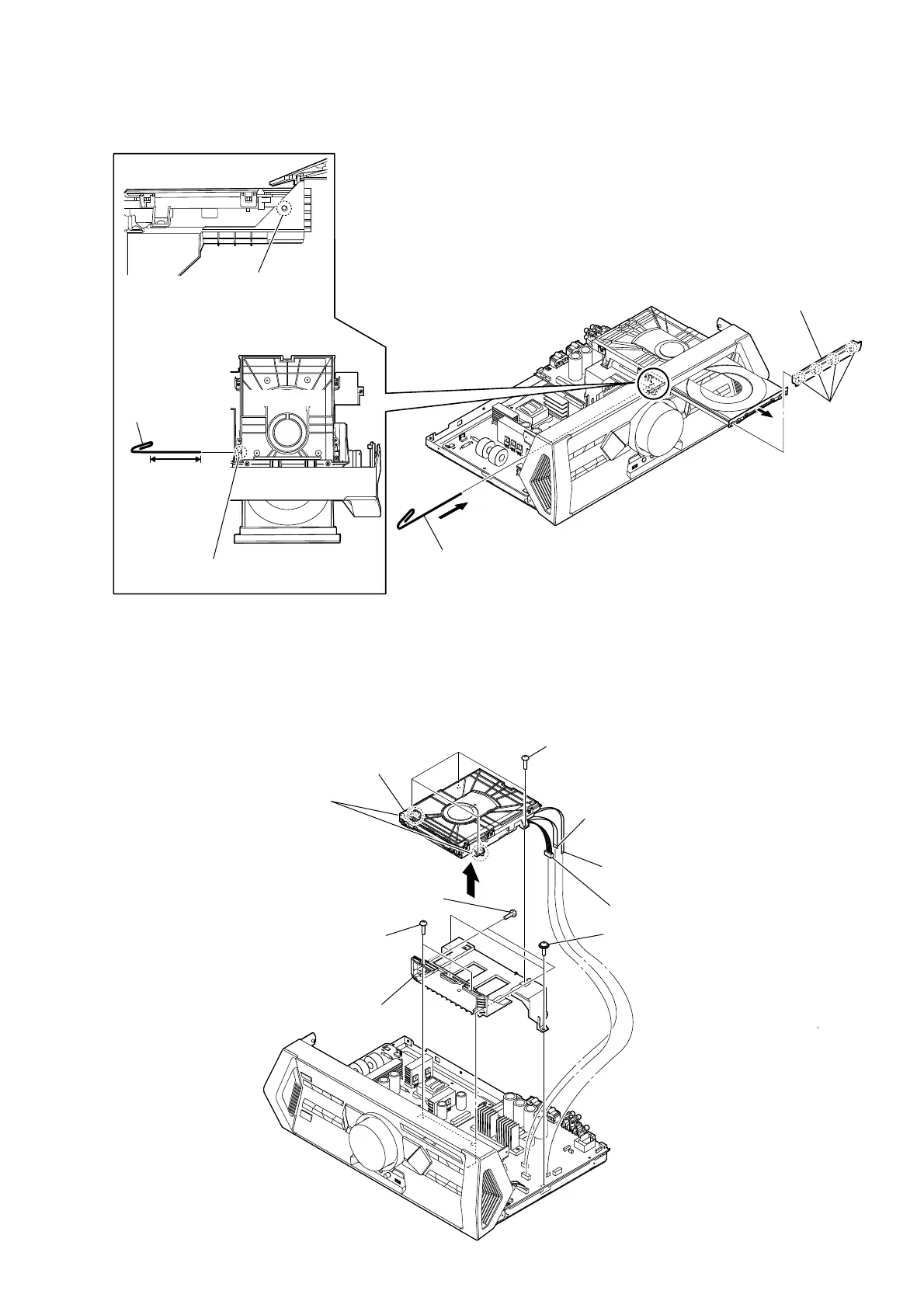

2-3. LOADING PANEL ASSY
2-4. CDM90-DVBU202//M
Note: When you install the CD
drive (CDM90-DVBU202//M),
please match the position of
the boss two places.
5 boss
8 two screws
(+BVTP 3 u 8)
9 two screws
(+BVTP 3 u 8)
qa bracket, CDM
0 two screws
(+PWH 3 u 8 (SUMITITE))
4 four screws
(+BVTP 3 u 8)
3 CN901 (6P)
1 wire (flat type) (24 core)
(CN305)
2 wire (flat type) (5 core)
(CN306)
6
7 CDM90-DVBU202//M
tray
Insert the clip etc.
processed to the
length of 8 cm or
more in the hole
on the side of the
chassis and push.
8 cm or more
hole
– Side view –
1 Insert the clip etc.
4 panel, loading assy
3 four claw
s
2
– Top view –
Note:
Push after it inserts it in this hole well.
DVD/CD drive
