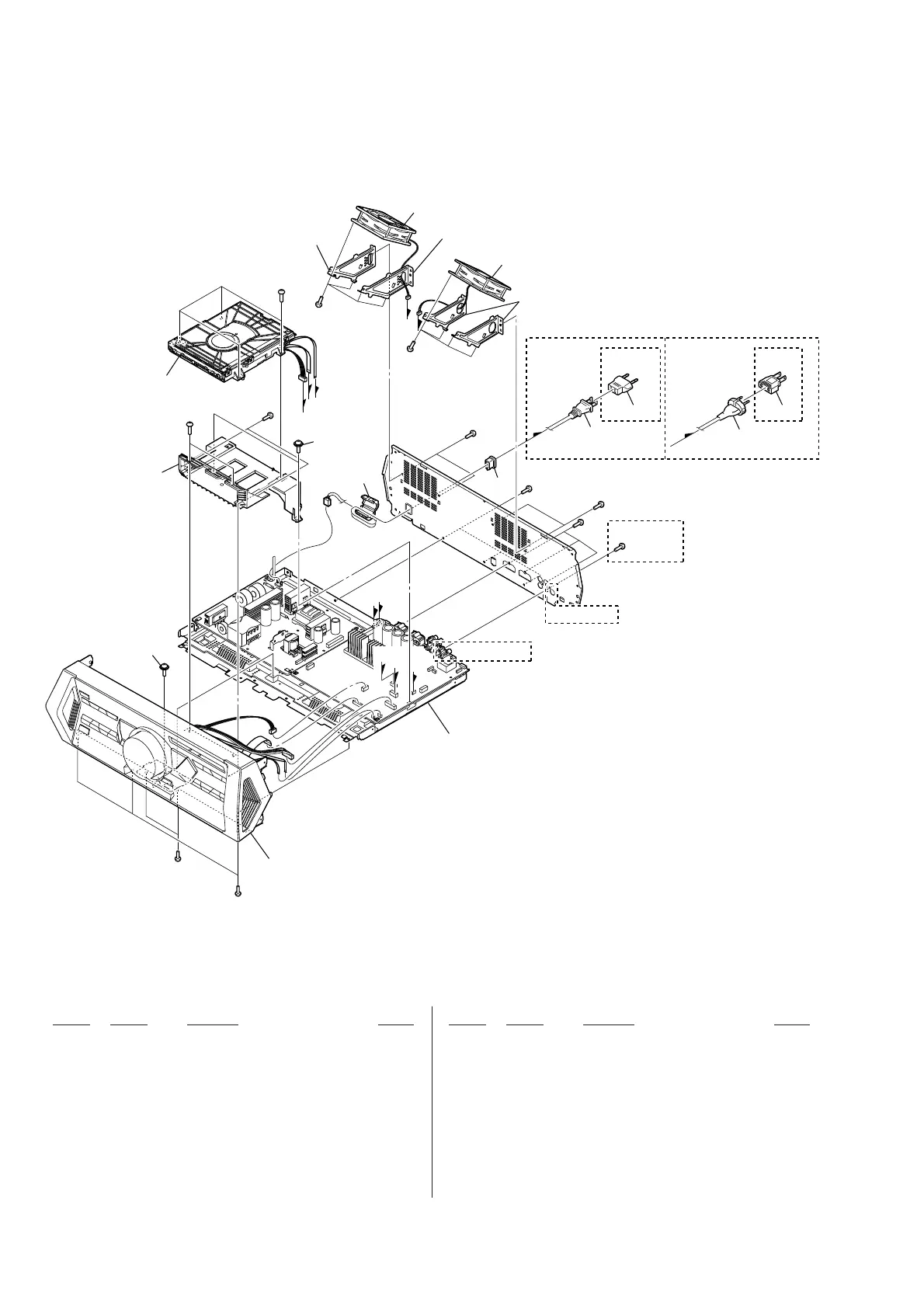

7-2. BACK PANEL SECTION
51 1-457-369-12 CORE, FERRITE
0
52 4-966-267-12 BUSHING (FBS001), CORD
0
53 1-834-966-41 POWER-SUPPLY CORD (AEP, RU)
0
53 1-835-068-21 CORD, POWER (AUS)
0
53 1-835-706-22 CORD, POWER-SUPPLY
(E51)
0
53 1-837-308-11 CORD, POWER-SUPPLY (US)
0
53 1-837-344-11 CORD, POWER-SUPPLY (E2, MX)
0
53 1-838-939-21 CORD, POWER (SAF)
0
53 1-839-940-21 POWER-SUPPLY CORD (TH)
0
53 1-839-999-21 POWER-SUPPLY CORD (UK, EA, MY)
0
53 1-848-053-11 POWER-SUPPLY CABLE (E12)
0
54 1-569-007-12 ADAPTOR, CONVERSION 2P (E2)
0
54 1-569-008-33 ADAPTOR, CONVERSION (E51)
0
54 1-843-324-11 ADAPTOR, CONVERSION 2P (E4)
0
55 1-855-006-41 FAN, DC
56 2-677-839-01 +PWH 3X8 (SUMITITE)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
