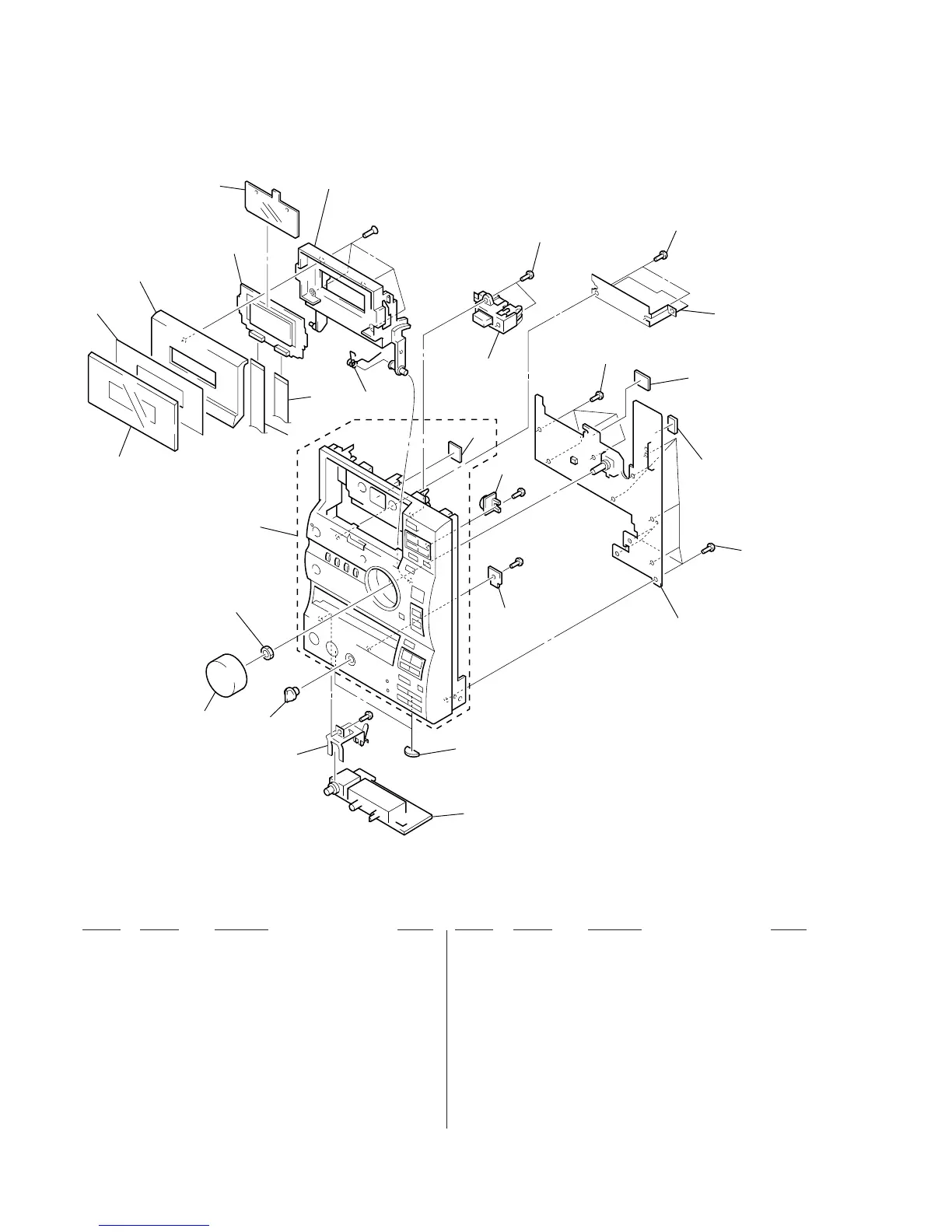

(2) FRONT PANEL SECTION
51 X-4951-108-1 KNOB ASSY
52 X-4951-938-1 PANEL SUB ASSY, FRONT
53 4-222-321-01 WINDOW (CASSETTE)
54 4-217-356-01 SHEET (WINDOW), ADHESIVE
55 4-217-316-01 LID, CASSETTE
56 1-675-188-11 LCD BOARD
57 4-217-319-01 PLATE, LCD LIGHT
58 4-217-317-01 HOLDER (CASSETTE)
59 4-217-345-01 SPRING, CASSETTE
60 1-790-628-11 WIRE (FLAT TYPE) (18 CORE)
61 1-790-629-11 WIRE (FLAT TYPE) (20 CORE)
62 1-418-482-11 ILLUMINATION BLOCK, LED
63 X-4951-937-1 LOCK (EJECT) ASSY
64 4-931-757-31 SCREW (DIA. 2.6X8) (IT3B), TAPPING
65 4-222-083-01 CUSHION (DSG)
66 4-221-075-01 KNOB (MIC VOL)
67 A-4426-610-A CONTROL BOARD, COMPLETE
69 3-351-377-11 GEAR, DAMPER
70 4-218-204-01 FOOT (FRONT)
71 1-675-190-11 HP/MIC BOARD
72 4-219-810-01 RUBBER (SPACE)
73 1-675-192-11 VIDEO SW STOPPER BOARD
not supplied
supplied with RV801
#1
#1
#1
71
51
66
52
53
54
55
56
58
59
61
#3
57
70
63
64
60
64
72
not
supplied
64
64
67
69
62
73
65
To Next Page
