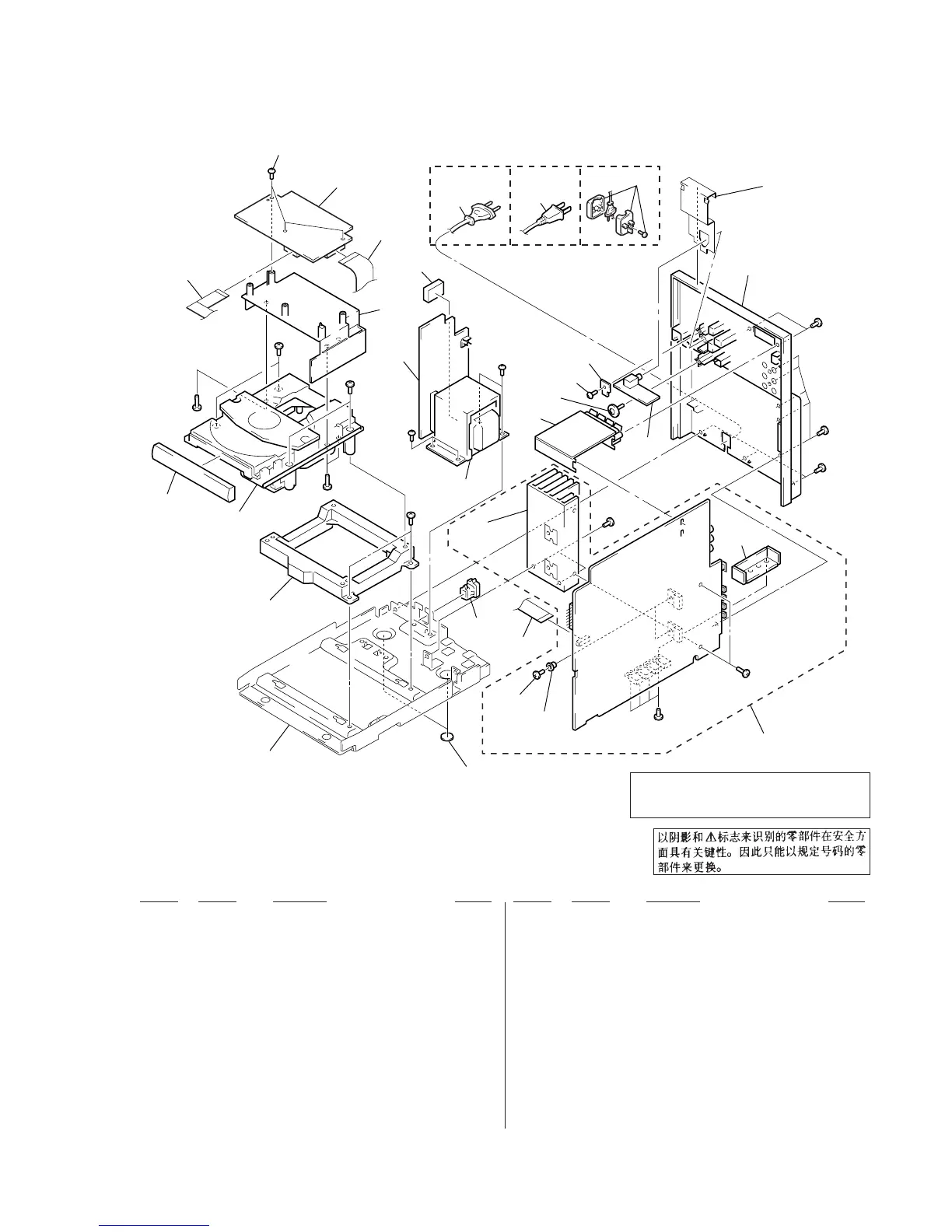

(3) CHASSIS SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
104 4-222-428-01 LID, CD
105 1-675-187-11 POWER BOARD
106 4-217-338-31 PANEL, BACK
107 A-4426-615-A MAIN BOARD, COMPLETE
* 108 4-217-354-01 BUSHING, INSULATING
109 4-217-355-01 FOOT
110 1-790-630-11 WIRE (FLAT TYPE) (12 CORE)
111 3-703-244-00 BUSHING (2104), CORD (CH)
111 3-703-571-11 BUSHING (S) (4516), CORD (TH)
111 4-217-350-01 STOPPER, CORD (MY, SP, HK)
112 A-4426-617-A TUNER PACK
115 4-931-757-31 SCREW (DIA. 2.6X8) (IT3B), TAPPING
! 116 1-558-943-31 CORD, POWER (TH)
! 116 1-696-169-21 CORD, POWER (MY, SP, HK)
! 116 1-783-205-11 CORD, POWER (CH)
! 117 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (HK)
118 3-911-135-01 SCREW (2.6X10), (+PWH) TAPPING
119 1-675-191-11 VIDEO SW BOARD
120 4-220-971-01 RUBBER (POWER)
121 1-675-192-11 VIDEO SW STOPPER BOARD
122 1-791-494-11 WIRE (FLAT TYPE) (24 CORE)
123 1-791-493-11 WIRE (FLAT TYPE) (19 CORE)
124 4-217-337-01 CHASSIS (CD)
125 4-217-342-03 CHASSIS (LOWER)
126 1-761-268-11 BOARD, UNIT (VCD BLOCK)
! T901 1-433-809-11 TRANSFORMER, POWER
109
108
124
#1
not
supplied
#1
#1
#1
not
supplied
104
105
#1
#1
#7
#7
#4
#4
KSL-2130CCP/K1N
120
107
112
110
111
115
not
supplied
T901
#1
#1
#1
119
118
106
116
TH, CHMY, SP, HK HK
116
117
125
121
115
not
supplied
122
126
115
123
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
