Sony HCD-VX90AV - Cassette Lid and Tape Mechanism Disassembly; CD SW Board and Panel Board Disassembly

– 10 –

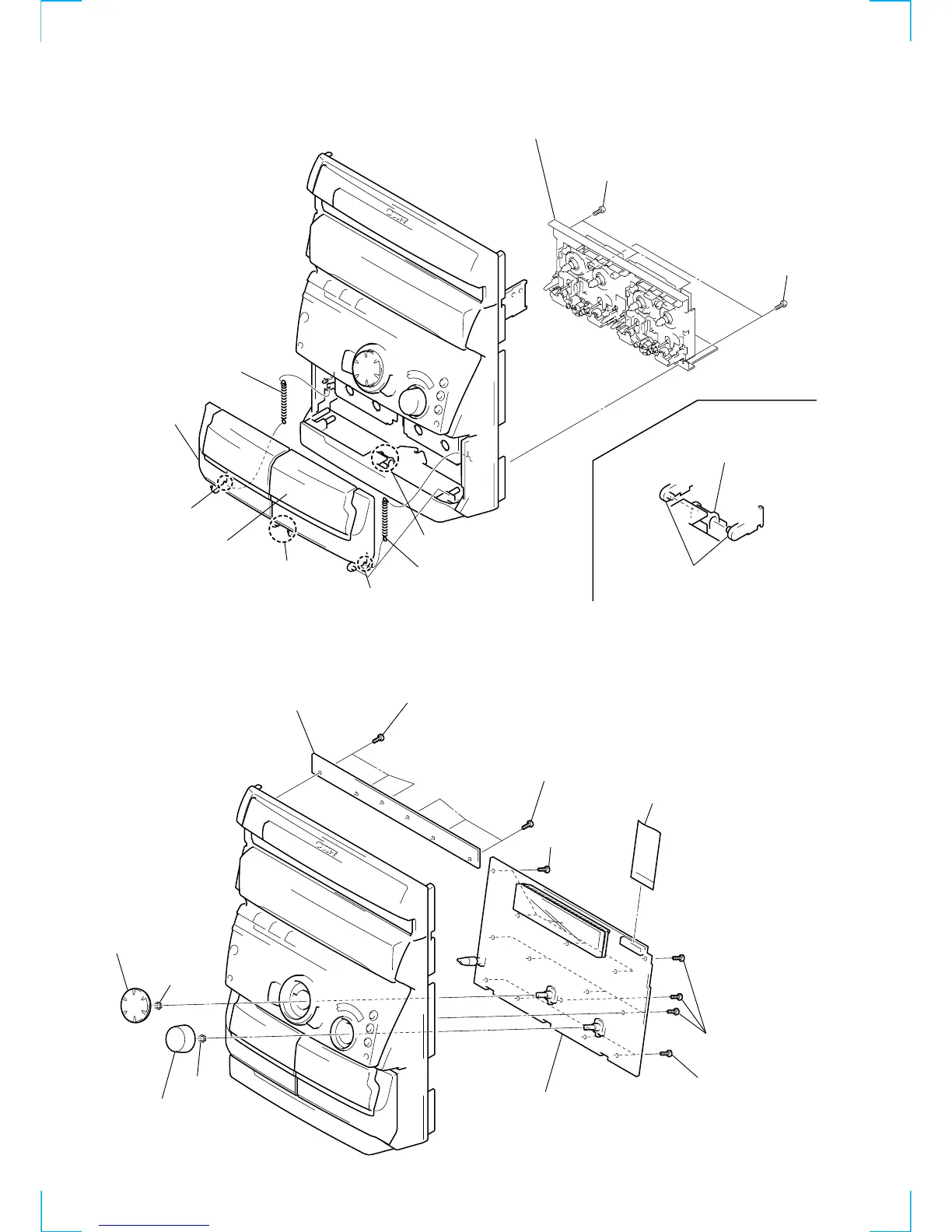

3-3. CASSETTE LID AND TAPE MECHANISM
3-4. CD SW BOARD AND PANEL BOARD
1 Release
3 Cassette holder (R)
assembly
4 Cassette holder (L)
assembly
Portion
A
Portion A
5 Tension spring
7 Two screws
(BVTP2.6x8)
8 Three screws
(BVTP2.6x8)
9 Tape mechanism
6 Tension spring
2 Release
Portion B
Portion B
Note for installation
4 Knob (Jog)
5 Knob (Vol)
9 Four screws
(BVTP2.6x8)
3 CD SW board
0 Six screws
(BVTP2.6x8)
!¡ Four screws
(BVTP2.6x8)
!™ Panel board
2 Three screws
(BVTP2.6x8)
8 Flat type wire
(CN601)
1 Three screws
(BVTP2.6x8)
7 Nut
6 Nut
