Sony HCD-VX90AV - Chassis Section

– 93 –

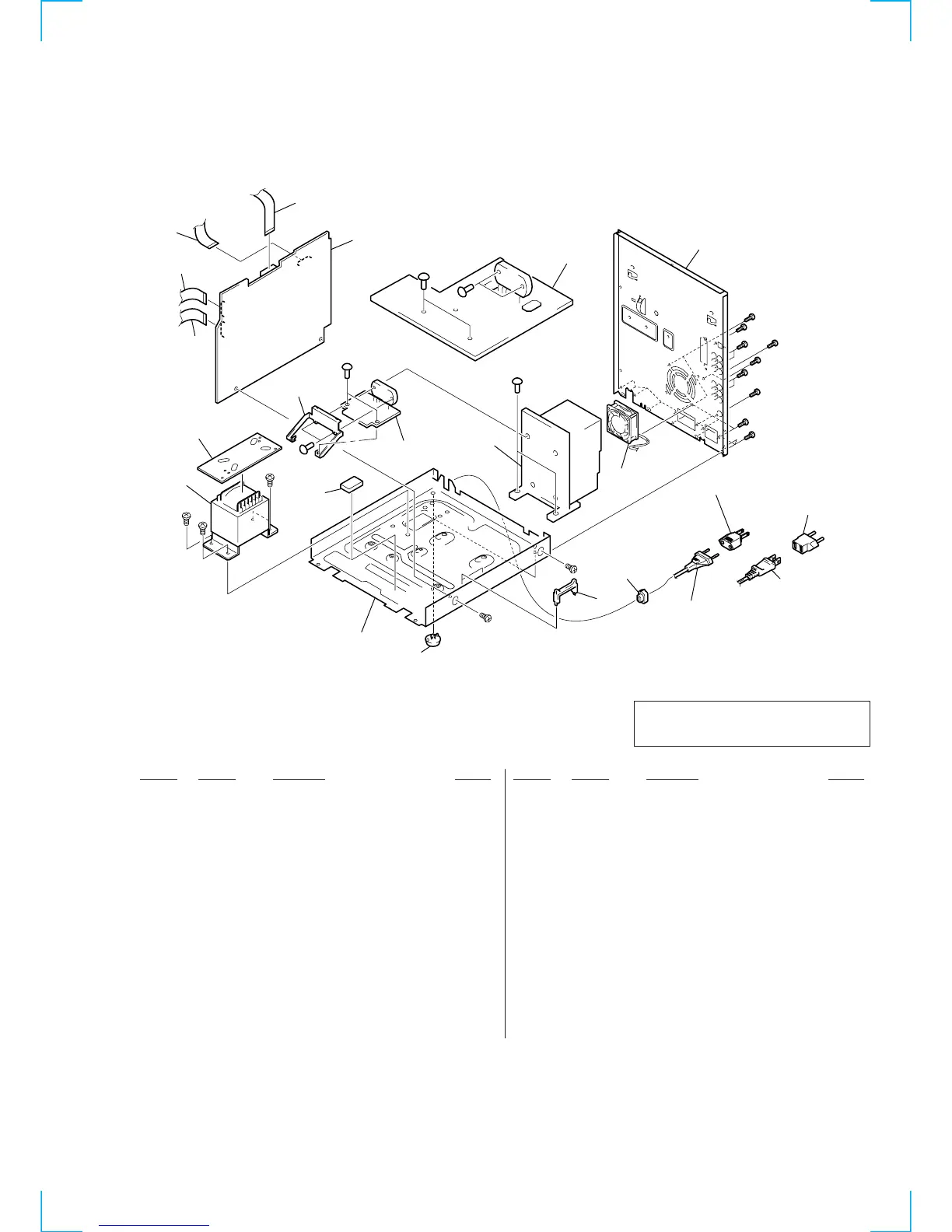

8-2. CHASSIS SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 4-965-822-01 FOOT
* 52 1-672-369-11 TRANS BOARD
53 A-4417-910-A MAIN BOARD, COMPLETE (TH)
53 A-4417-918-A MAIN BOARD, COMPLETE (EA)
53 A-4417-955-A MAIN BOARD, COMPLETE (E,SP,MY,IA)
54 1-783-570-11 WIRE (FLAT TYPE) (19 CORE)
55 1-769-976-11 WIRE (FLAT TYPE) (13 CORE) (TH)
55 1-773-008-11 WIRE (FLAT TYPE) (15 CORE) (140 mm)
(EXCEPT TH)
56 1-773-049-11 WIRE (FLAT TYPE) (17 CORE)
57 3-703-244-00 BUSHING (FBS001), CORD (SP,MY)
57 3-703-571-11 BUSHING (S)(4516), CORD (TH)
57 4-966-266-01 BUSHING (S)(FBS002), CORD (E,EA,IA)
58 1-569-007-11 ADAPTOR, CONVERSION 2P (E,IA)
58 1-569-008-21 ADAPTOR, CONVERSION 2P (EA,SP,MY)
#2
#4
not supplied
#2
#4
#2
60
63
not supplied
52
53
54
55
56
62
57
64
61
#2
#2
T951
not supplied
#3
#3
#3
51
58
(EA,SP,MY)
58 (E,IA)
59 (EA,SP,MY)
59 (E,IA,TH)
#2
#2
#2
#1
#2
#2
#2
#2
#2
M901
65
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
! 59 1-575-651-11 CORD, POWER (EA,SP,MY)
! 59 1-575-653-11 CORD, POWER (E,IA,TH)
60 A-4426-201-A FRONT AMP BOARD, COMPLETE
61 4-215-642-11 PANEL, BACK (EA,SP,MY)
61 4-215-642-31 PANEL, BACK (IA)
61 4-215-642-41 PANEL, BACK (E)
61 4-215-642-51 PANEL, BACK (TH)
62 1-773-023-11 WIRE (FLAT TYPE) (15 CORE) (310 mm)
63 A-4417-794-A 3CH AMP BOARD, COMPLETE
* 64 4-988-533-01 PCB HOLDER
65 4-985-642-01 CUSHION
M901 1-763-072-11 FAN, DC
! T951 1-433-555-11 TRANSFORMER, POWER
