Sony HCD-VX90AV - Printed Wiring Board - Leaf SW Section; Schematic Diagram - Leaf SW Section

Sony HCD-VX90AV
88 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
HCD-VX90AV
(Page 49)
– 59 – – 60 –

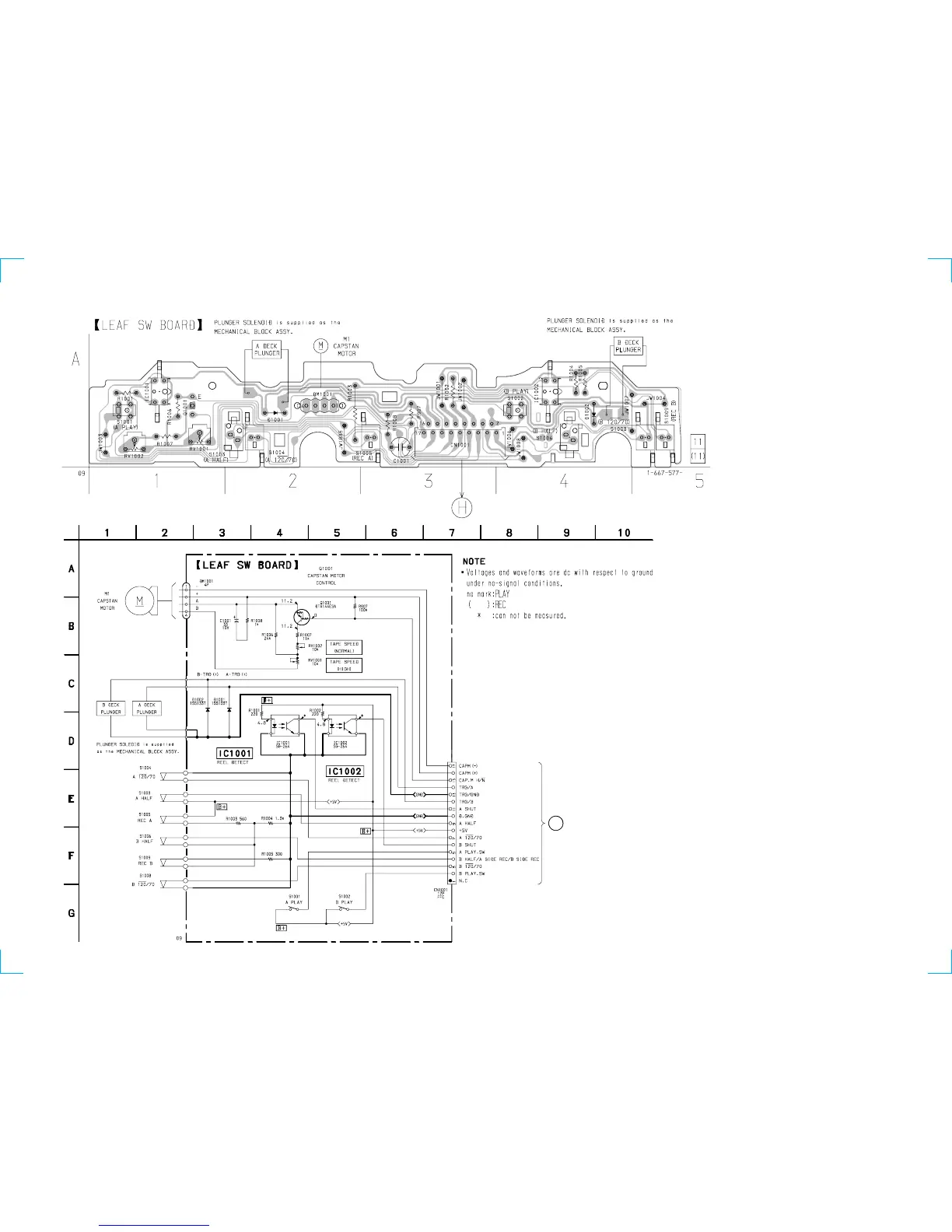

7-17. SCHEMATIC DIAGRAM – LEAF SW SECTION –
7-16. PRINTED WIRING BOARD – LEAF SW SECTION –
• See page 18 for Circuit Boards Location.
(Page 54)
