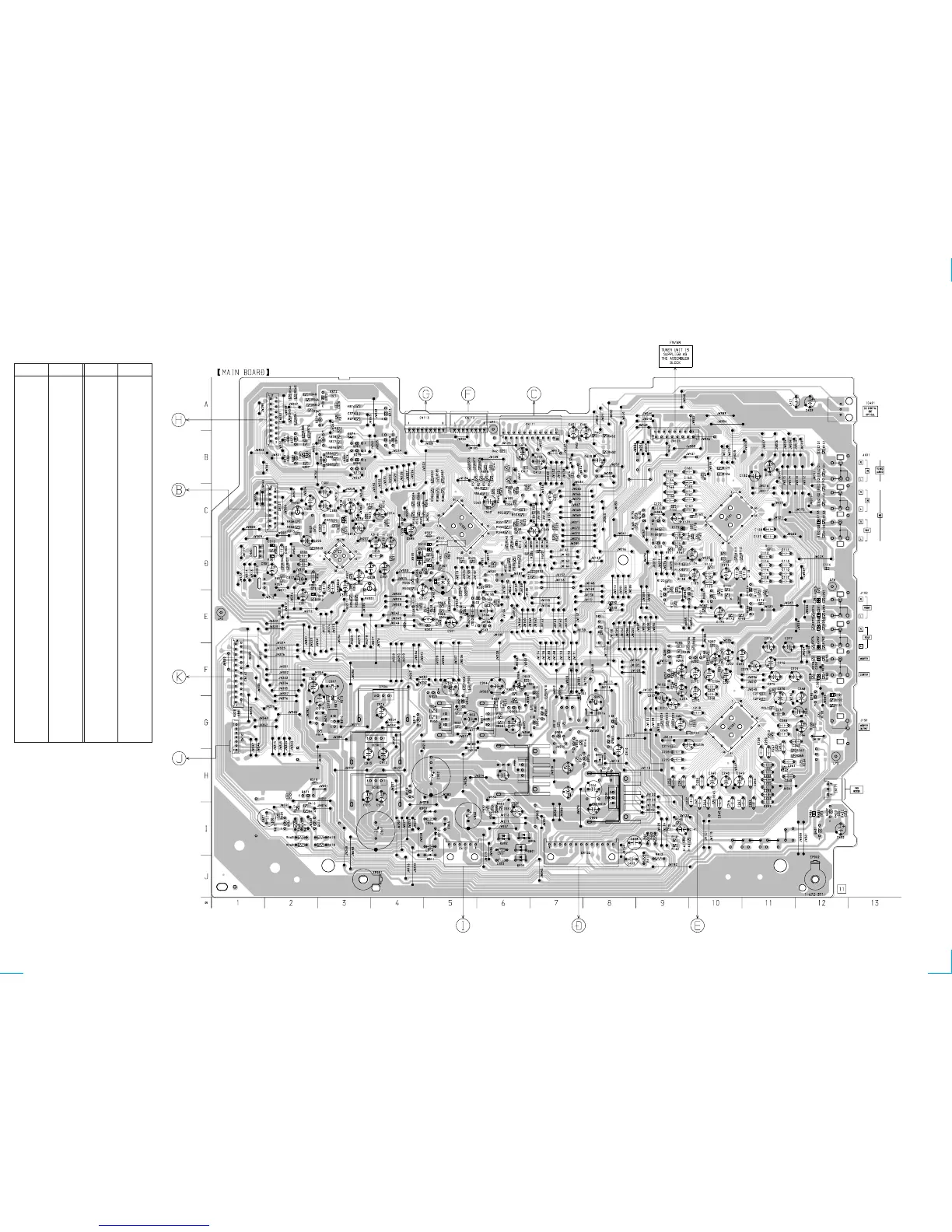

7-11. PRINTED WIRING BOARD – MAIN SECTION –
• See page 18 for Circuit Boards Location.
– 49 –
Ref. No. Location
• Semiconductor Location
Ref. No. Location
D141 I-9
D371 B-2
D372 B-2
D373 B-3
D374 B-3
D501 E-5
D502 E-5
D503 E-5
D504 E-5
D505 E-5
D506 D-4
D507 C-5
D508 E-4
D509 G-1
D510 H-2
D512 D-6
D901 I-6
D902 I-6
D903 J-6
D904 I-6
D905 G-6
D906 F-6
D908 I-5
D909 I-5
D910 I-5
D911 I-5
D912 G-3
D914 I-8
D915 H-8
D916 G-8
D918 H-8
D931 I-6
D932 I-6
IC101 C-10
IC201 G-10
IC301 D-3
IC421 A-13
IC501 C-5
IC502 E-5
IC901 H-8
IC902 G-4
IC903 H-4
IC904 F-4
Q111 E-10
Q112 E-9
Q113 E-10
Q114 D-11
Q161 C-9
Q162 C-9
Q163 D-9
Q164 E-11
Q191 F-12
Q281 F-9
Q282 F-10
Q291 F-9
Q371 A-3
Q372 A-3
Q373 A-4
Q374 B-4
Q375 B-3
Q376 B-3
Q377 B-2
Q378 B-3
Q379 B-4
Q380 B-3
Q381 B-2
Q382 B-3
Q383 B-3
Q411 I-2
Q421 H-2
Q431 I-12
Q432 I-12
Q461 I-2
Q501 D-5
Q502 E-5
Q503 E-6
Q901 G-6
Q902 F-7
Q903 G-6
Q904 G-7
Q905 G-7
Q906 G-8
Q907 G-8
Q909 G-7
Q910 G-3
Q913 G-4
Q914 H-4
Q915 H-8
Q916 G-7
Q951 G-5
Q952 G-5
Q953 F-5
– 50 –
