HCD-VX90AV
– 75 – – 76 –

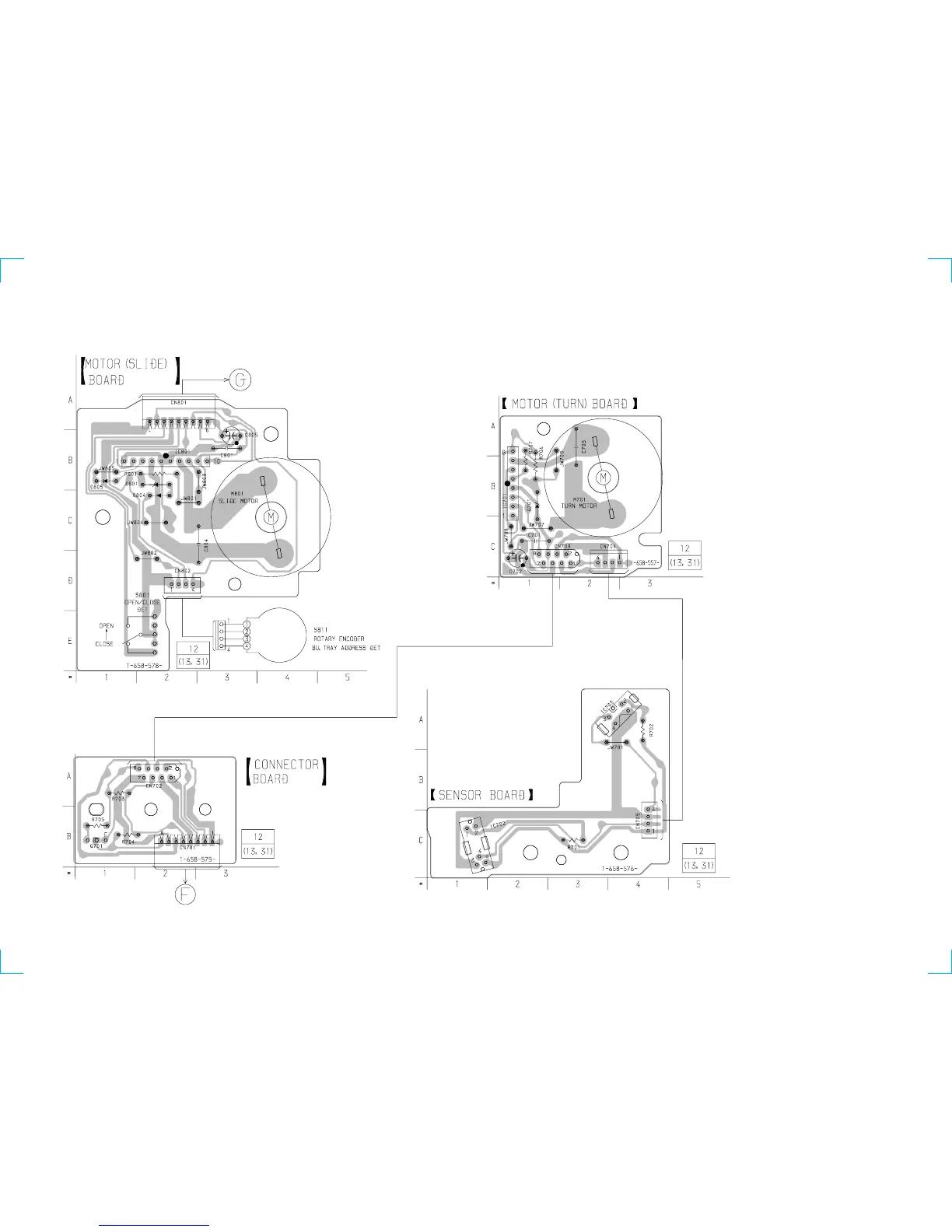

7-26. PRINTED WIRING BOARD – CD MOTOR SECTION –
• See page XX for Circuit Boards Location.
(Page 49)
(Page 49)
