Sony HCD-VX90AV - Printed Wiring Board - Front Amp Section

HCD-VX90AV
(Page 50)
(Page 68)
(Page 78)
(Page 49)
– 71 – – 72 –

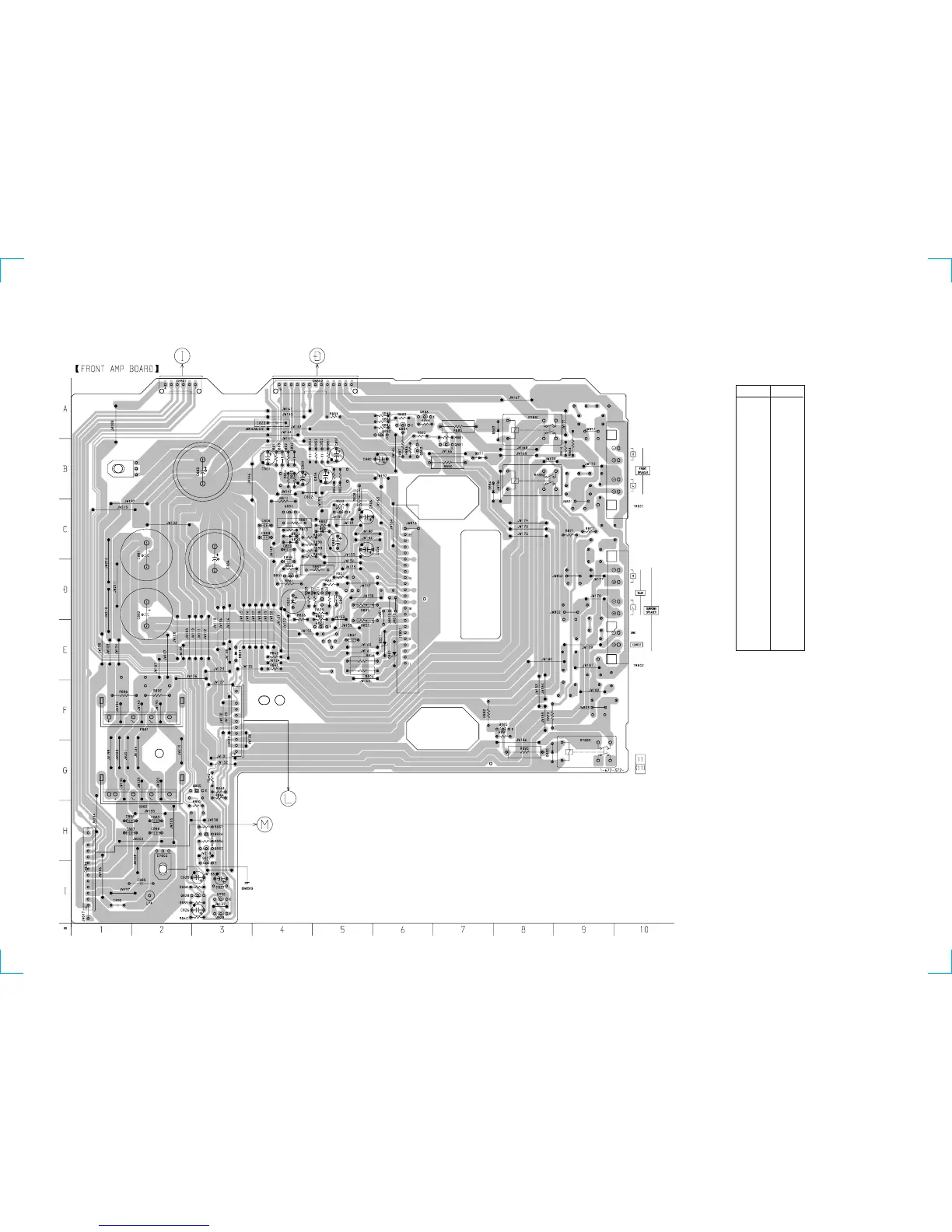

7-24. PRINTED WIRING BOARD – FRONT AMP SECTION –
• See page 18 for Circuit Boards Location.
Ref. No. Location
• Semiconductor
Location
D801 E-6
D802 C-4
D821 E-3
D831 C-5
D851 E-6
D852 C-4
D871 B-7
D881 F-2
D882 G-2
D883 A-8
D884 B-8
D885 G-8
IC801 E-6
Q801 C-4
Q821 D-5
Q822 E-5
Q825 G-3
Q826 H-3
Q827 H-3
Q828 I-2
Q829 I-3
Q830 I-3
Q831 C-5
Q851 D-4
Q881 B-7
Q882 A-6
Q883 B-6
Q884 A-6
Q885 F-8
Q886 A-6
