Sony HCD-VX90AV - 2 General

– 7 –
LOCATION OF PARTS AND CONTROLS
1 1/u button and indicator
2 DEMO (STANDBY) button
3 DISC 1 button and indicator
4 DISC 2 button and indicator
5 DISC 3 button and indicator
6 DISC SKIP/EX–CHANGE button
7 § (Eject) button
8 SYNC BASS H indicator
9 VIDEO CD indicator
10 PBC indicator
11 PBC OFF indicator
12 SYNC BASS L indicator
13 TUNER/BAND button
14 ^ (CD) button and indicator
15 p button
16 SYNC BASS button
17 SYNC EQ button
18 KARAOKE PON/MPX button
19 NON-STOP button and indicator
20 REC PAUSE/START button and
indicator
21 CINEMA SPACE/DSP button and
indicator
22 DBFB button
23 HI-DUB button
24 CD SYNC button
25 PHONES jack
26 VOLUME knob
27 ENTER/NEXT button
28 ) + button and indicator
29 PRO LOGIC button and indicator
30 JOG/0x) dial and indicator
31 GROOVE button and indicator
32 0 – button and indicator
33 DUB 5.1 CH button
34 CD FLASH button
35 CD LOOP button
36 MIC 2 jack
37 TIMER SELECT button and indicator
38 CLOCK/TIME SET button
39 MIC 1 jack
40 SPECTRUM ANALYZER button
41 DISPLAY button
42 MIC LEVEL knob
43 REPEAT/STEREO/MONO button
44 PLAY MODE/DOLBY NR button
45 EDIT DIRECTION/TUNER MEMORY
button
46 ECHO LEVEL knob
47 P FILE MEMORY button
48 GEQ CONTROL button
49 FILE SELECT button
50 EFFECT button
51 NEXT button
52 PREV button
53 RETURN button
54 SELECT button
55 ( (TAPE B) button and indicator
56 9 (TAPE B) button and indicator
57 ( (TAPE A) button and indicator
58 9 (TAPE A) button and indicator
59 FUNCTION button
60 SYNC EQ indicator
61 Remote sensor
62 EFFECT indicator
63 Display Window
64 Disc tray
SECTION 2
GENERAL

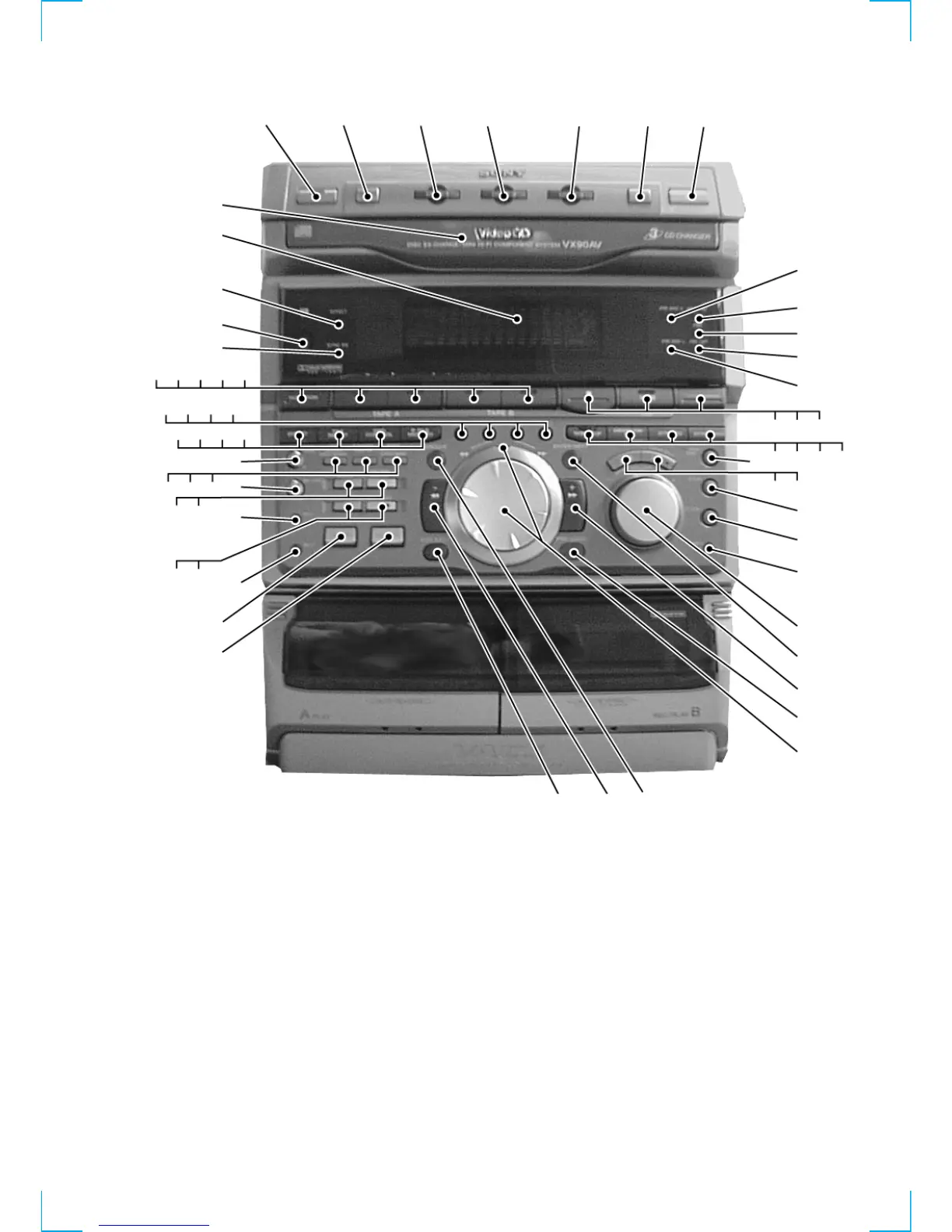

Front Panel
18
9
10
11
8
23
4
7561
12
13
14
16
17
15
19
20
21
22
38
4849
50
51
52
41
42
43
4445
46
47
40
39
37
53
55
56
58
60
61
54
57
59
62
31
30
29
23
24
25
3233
34
26
27
28
35
36
63
64
