SECTION 7
EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may have
some difference from the original one.
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• The mechanical parts with no reference number in
the exploded views are not supplied.
• Hardware (# mark) list and accessories and pack-
ing materials are given in the last of this parts list.
• Abbreviation
EE : East European model
SAF : South African model
MX : Mexican model
AUS : Australian model
AR : Argentine model
The components identified by mark !
or dotted line with mark ! are critical
for safety.
Replace only with part number
specified.

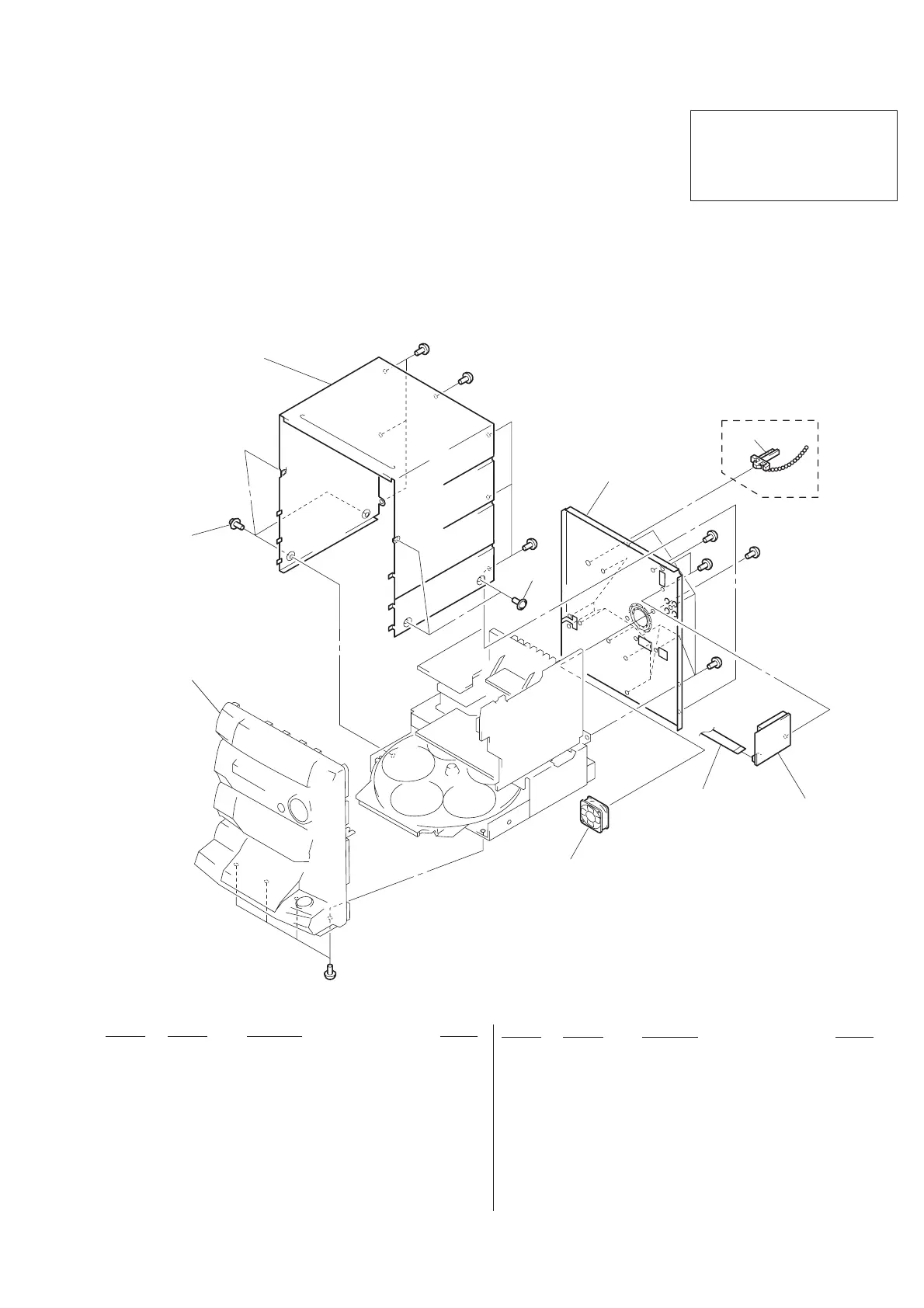

7-1. CASE AND BACK PANEL SECTION
#1
#2
UK, AUS
2
1
#2
3
1
FRONT PANEL
M901
6
5
4
#2
#3
#1
#1
#1
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 4-929-973-01 SCREW (CASE, 3 POINT)
* 2 4-987-052-31 CASE
* 3 4-987-045-01 PANEL, BACK (AEP,UK)
* 3 4-987-045-21 PANEL, BACK (EE,CIS)
* 3 4-988-222-01 PANEL, BACK (E,AR,SAF)
* 3 4-988-222-11 PANEL, BACK (AUS)
* 3 4-988-222-21 PANEL, BACK (PX)
* 3 4-988-222-31 PANEL, BACK (MX)
4 4-956-370-12 BAND, PLUG FIXED (UK,AUS)
5 1-233-545-11 ENCAPSULATED COMPONENT
(E,MX,AR,AUS,PX,SAF)
* 5 A-4303-571-A TCB BOARD, COMPLETE (AEP,UK)
* 5 A-4303-570-A TCB BOARD, COMPLETE (EE,CIS)
6 1-769-974-11 WIRE (FLAT TYPE)(13 CORE)
(E,MX,AR,AUS,PX,SAF)
6 1-773-006-11 WIRE (FLAT TYPE)(15 CORE)(AEP,UK,EE,CIS)
M901 1-698-792-11 FAN, DC
