Sony HCD-XB8 - Mechanism Deck and Base Unit Disassembly

— 8 —

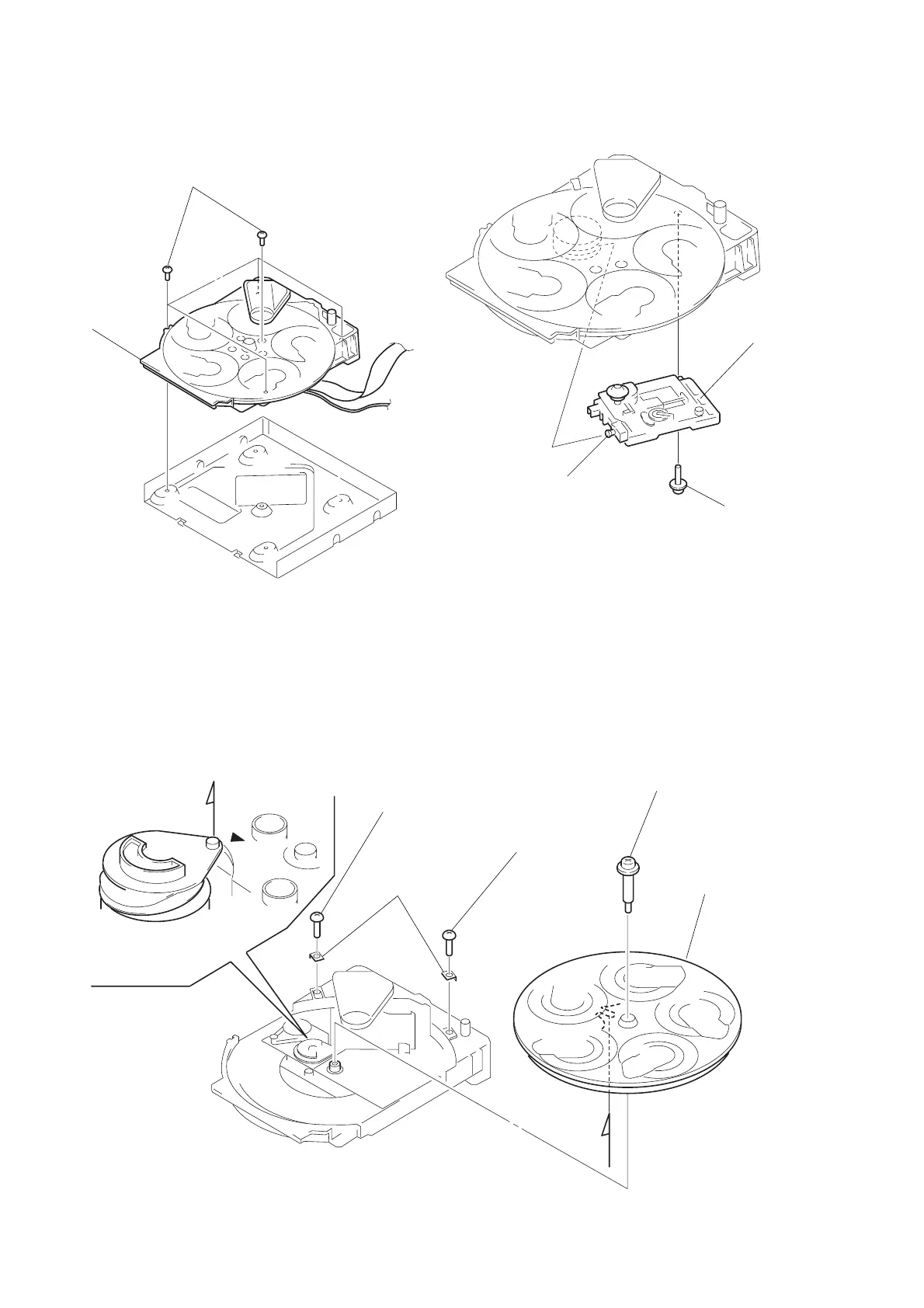

2-6. CD MECHANISM DECK
2-7. BASE UNIT
2 CD mechanism
deck
1 Five screws
(BVTP3x8)
3 Bass unit
2 Boss
1 Yoke bracket
2-8. DISC TABLE
1 Screw (BVTP3x8)
2 Screw (BVTP3x8)
3 Bracket (BU)
4 Stop screw
5 Disc table
A
A
Note:
When the disc table is installed, adjust the positions of
roller cam and mark ” as shown in the figure, then set to
the groove of disc table.
