Sony HCD-XB8 - CD Mechanism Section (CDM37 L-5 BD29 AL)

— 96 —

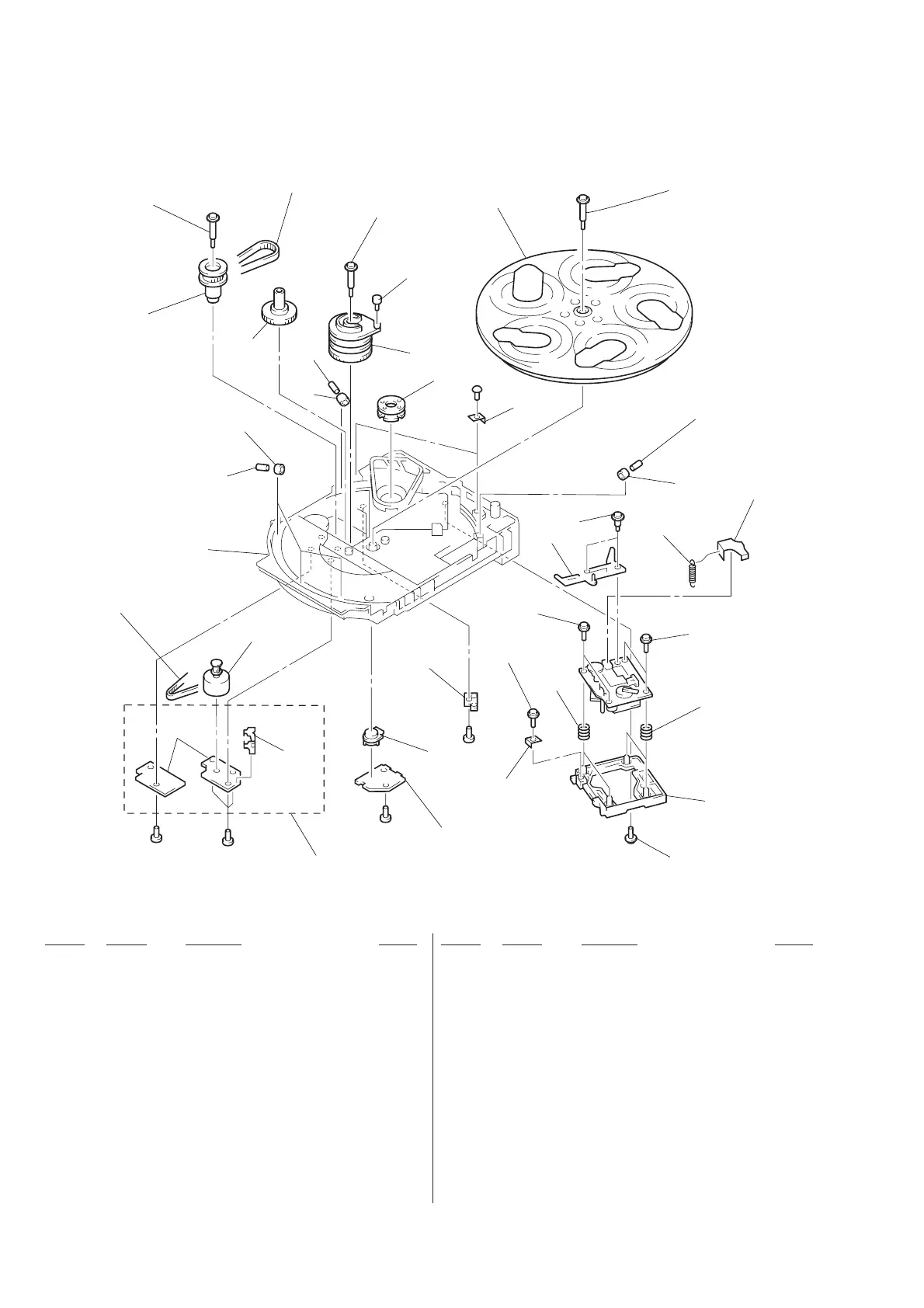

7-8. CD MECHANISM SECTION (CDM37L-5BD29AL)
#1
#1
#1
#1
371
367
#1
351
358
351
352
351
353
354
359
360
356
357
359
360
361
362
352
359
360
375
374
373
372
M201
368
368
369
369
370
361
366
365
364
363
not
supplied
355
368
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
365 4-978-426-01 INDICATOR (NO.)
* 366 1-659-059-13 LED BOARD
* 367 1-659-058-13 TABLE SENSOR BOARD
368 4-933-134-01 SCREW (+PTPWH M2.6X6)
369 4-958-593-01 SPRING (BU), COMPRESSION
* 370 4-978-419-01 HOLDER (BU-5)
371 4-917-583-71 BRACKET, YOKE
372 4-989-493-01 SLIDER (37)
373 4-989-494-01 SCREW (SLIDER), STEP
374 4-989-819-01 SPRING, TENSION
375 4-989-491-21 COVER, LENS
M201 A-4660-977-A MOTOR ASSY (TABLE)
351 4-987-976-01 SCREW, STEP
352 4-944-490-01 BELT (TIMING)
353 A-4660-978-A GEAR (PULLEY) ASSY
354 4-978-421-01 GEAR (MID)
355 4-978-425-01 ROLLER (CAM)
356 4-978-420-01 CAM (HOLDER)
* 357 1-452-879-11 MAGNET
358 4-978-417-01 TABLE, DISC
359 4-934-376-01 SHAFT (ROLLER)
360 X-4924-457-1 ROLLER ASSY
* 361 4-978-583-01 BRACKET (BU)
* 362 4-978-418-01 CHASSIS
* 363 4-980-385-01 HOLDER (SW)
* 364 A-4673-765-A CD MOTOR BOARD, COMPLETE
