Sony HCD-XB8 - Chassis Section; Not Supplied; Ref. no; Part no

— 92 —

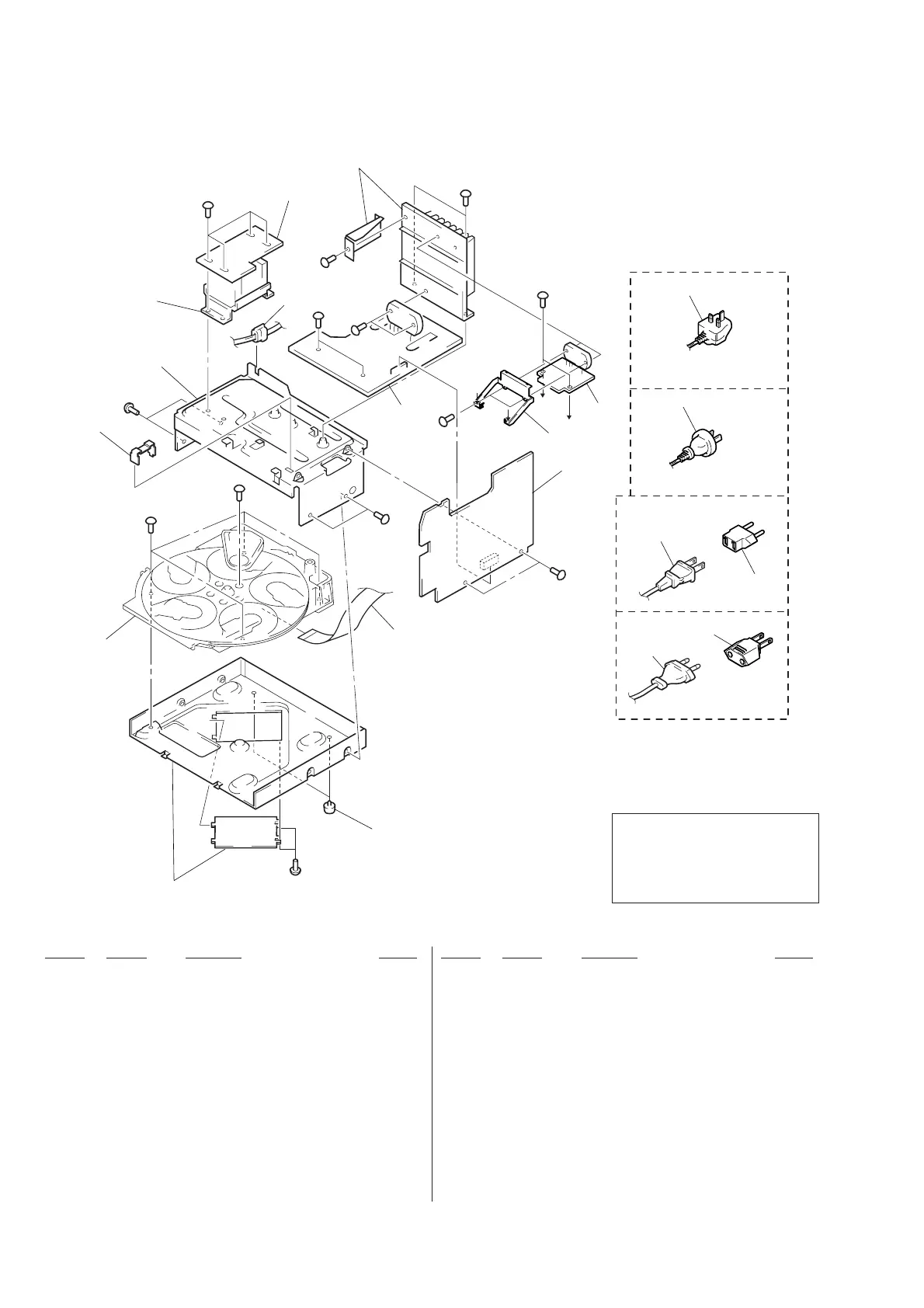

7-4. CHASSIS SECTION
The components identified by mark !
or dotted line with mark ! are critical
for safety.
Replace only with part number speci-
fied.
not supplied
151
153
#1
#1
154
155
#1
CDM37L-5BD29AL
157
not supplied
CNP901
161
#2
#1
#1
not supplied
T501
not supplied
#1
160
#4
CNP901
156
158
#1
#1
#1
#1
CNP901
(UK)
CNP901
(AUS)
(E, MX, PX)
(PX)
161
(AR)
(AEP, EE, CIS, AR, SAF)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
157 X-4941-228-1 FOOT (F22125H-M)
* 158 A-4392-662-A SURROUND BOARD, COMPLETE
(E,MX,AR,AUS,PX,SAF)
* 158 A-4392-663-A SURROUND BOARD, COMPLETE (AEP,UK,EE,CIS)
* 160 4-988-533-11 HOLDER, PCB
! 161 1-569-007-11 ADAPTOR, CONVERSION 2P (PX)
! 161 1-569-008-11 ADAPTOR, CONVERSION 2P (AR)
! CNP901 1-558-943-41 CORD, POWER (E,MX,PX)
! CNP901 1-575-651-21 CORD, POWER (AEP,EE,CIS,AR,SAF)
! CNP901 1-696-845-21 CORD, POWER (AUS)
! CNP901 1-751-522-11 CORD, POWER (UK)
! T501 1-431-139-11 TRANSFORMER, POWER (AEP,UK,EE,CIS)
! T501 1-431-140-11 TRANSFORMER, POWER (E,MX,AR,AUS,PX,SAF)
* 151 1-663-994-11 TRANS BOARD
153 3-703-244-00 BUSHING (FBS001), CORD
(AEP,UK,EE,CIS,AUS,AR,SAF)
153 4-966-266-01 BUSHING (S)(FBS002), CORD (E,MX,PX)
* 154 A-4392-678-A POWER BOARD, COMPLETE (AEP,UK,EE,CIS)
* 154 A-4392-679-A POWER BOARD, COMPLETE
(E,MX,AR,AUS,PX,SAF)
* 155 A-4392-669-A MAIN BOARD, COMPLETE (AEP,UK)
* 155 A-4392-670-A MAIN BOARD, COMPLETE (E,MX,AR)
* 155 A-4398-907-A MAIN BOARD, COMPLETE (SAF)
* 155 A-4398-046-A MAIN BOARD, COMPLETE (EE,CIS)
* 155 A-4398-051-A MAIN BOARD, COMPLETE (AUS,PX)
156 1-777-868-11 WIRE (FLAT TYPE)(19 CORE)
#4
