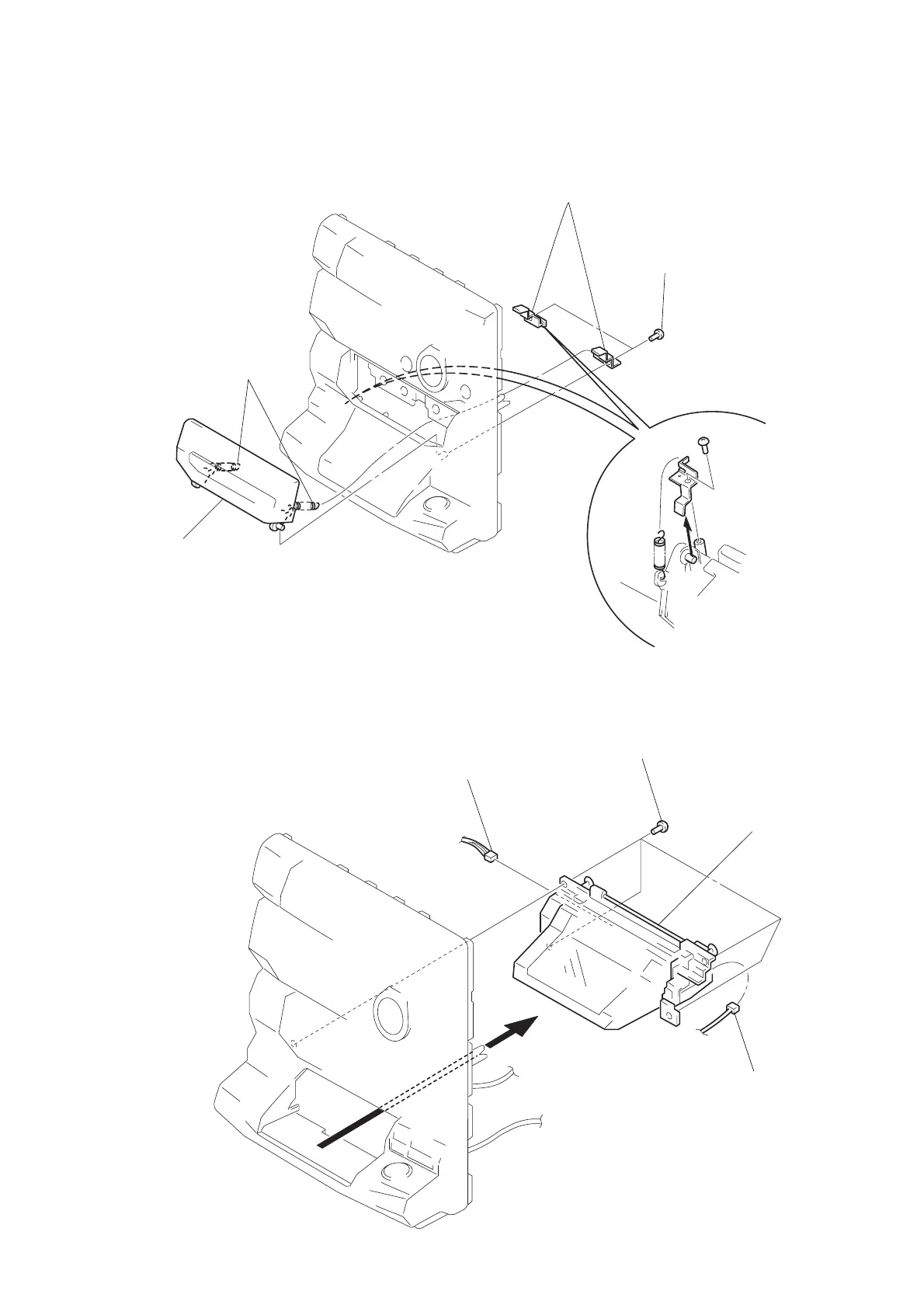

2-4. CASSETTE LID ASSEMBLY
1
Two springs
2
Two screws (BVTP2.6x8)
3
Two bracket
4
Cassette lid assembly
2-5. CD LID ASSEMBLY
1
Four screws (BVTP2.6x8)
3
Connector (CN661)
4
CD lid assembly
2
Connector (CN671)
