Sony HDVF-C950W - Removing the LE-316 Board

1-12 (E)
HDVF-C950W
BTP2.6 x 6
LED bracket,
LE-316 board
Bezel assembly
LE-316 board
(CN1)
LED bracket
Cut-out for the
harness (LE)
Protection panel
B
Protection panel
LE-316 board
LED bracket
A
Harness (LE)
CN1
LE-316 board
LED bracket
B2.6 x 5
Harness (LE)

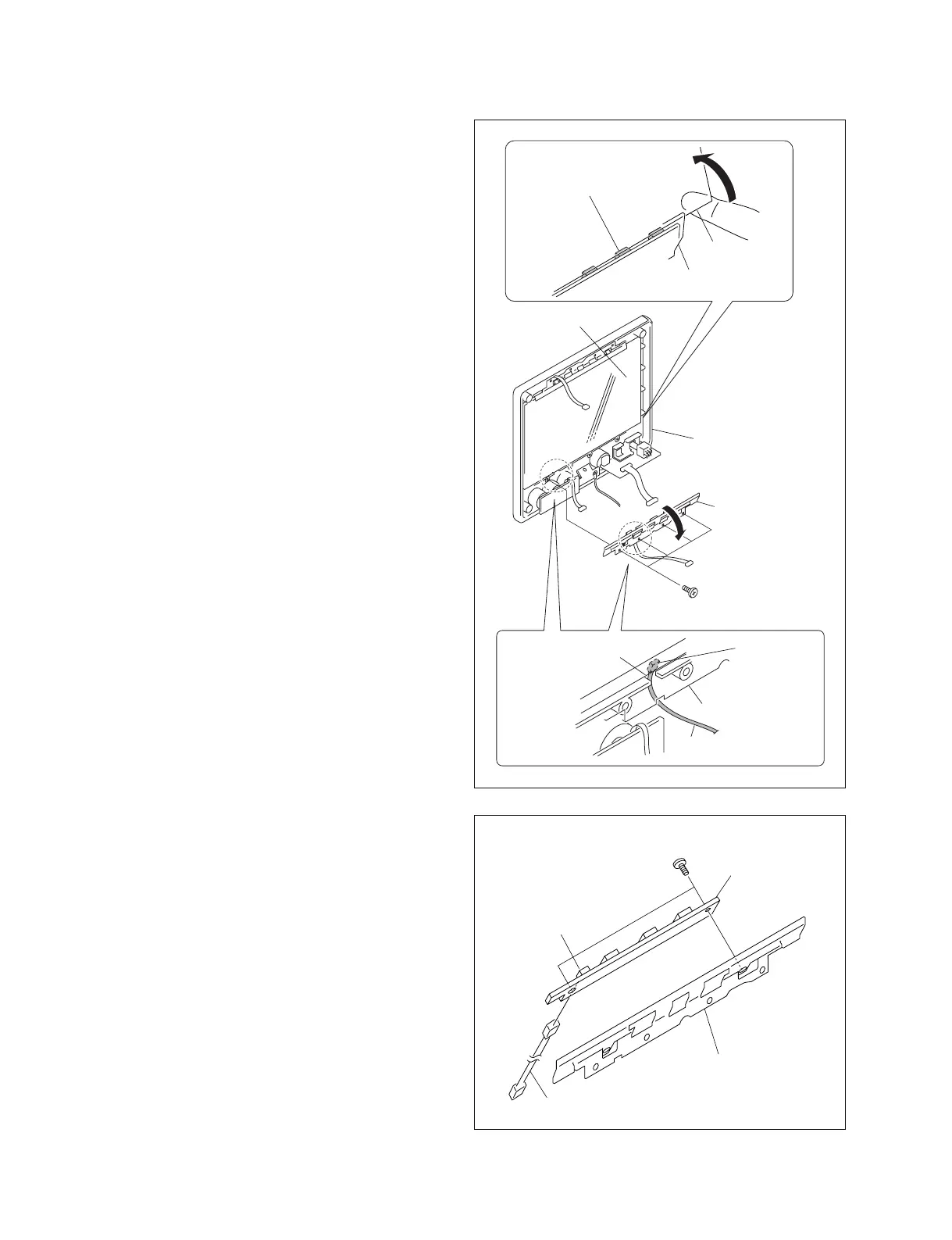

1-7-6. Removing the LE-316 Board
1. Remove the rear cover assembly.
(Refer to Section 1-7-1 step 1.)
2. Remove the bezel assembly.
(Refer to Section 1-7-1 steps 2 to 5.)
3. Remove the four screws. Raise the protection panel in
the direction of arrow A, and remove the LED bracket
and the LE-316 board in the direction of arrow B.
m
. To install the LED bracket and the LE-316 board in
the bezel assembly, pass the harness (LE) through
the cut-out for the harness (LE).
Be careful not to pinch the harness (LE) with the
LED bracket.
. Do not scar the protection panel.
n
Standard tightening torque :
25 x 10
_2
N.m (2.5 kg.cm)
4. Disconnect the harness from the connector (CN1) of
the LE-316 board.
5. Remove the two screws and remove the LED bracket
from the LE-316 board.
6. Reinstall it by reversing the steps 1 to 5 of disassem-
bling.
