Sony HDVF-C950W - Exploded Views

4-2
HDVF-C950W
No. Part No. SP Description
1 X-2149-576-1 s HOOD ASSY, INDOOR
2 X-2149-578-1 s COVER ASSY, REAR
3 ! 1-802-297-11 s MODULE, LCD
4 2-888-461-01 s SCREW, BINDING
5 2-888-472-01 s CUSHION (H), DUST PROTECTION
6 2-888-473-01 s CUSHION (V), DUST PROTECTION
7 2-888-490-01 s COVER, TILT SHAFT
8 3-364-941-01 s SCREW (+B) (2.6X5), NYLOK
9 3-701-440-21 s WASHER, 3.5
7-682-548-09 s SCREW, +B 3X8
Overall

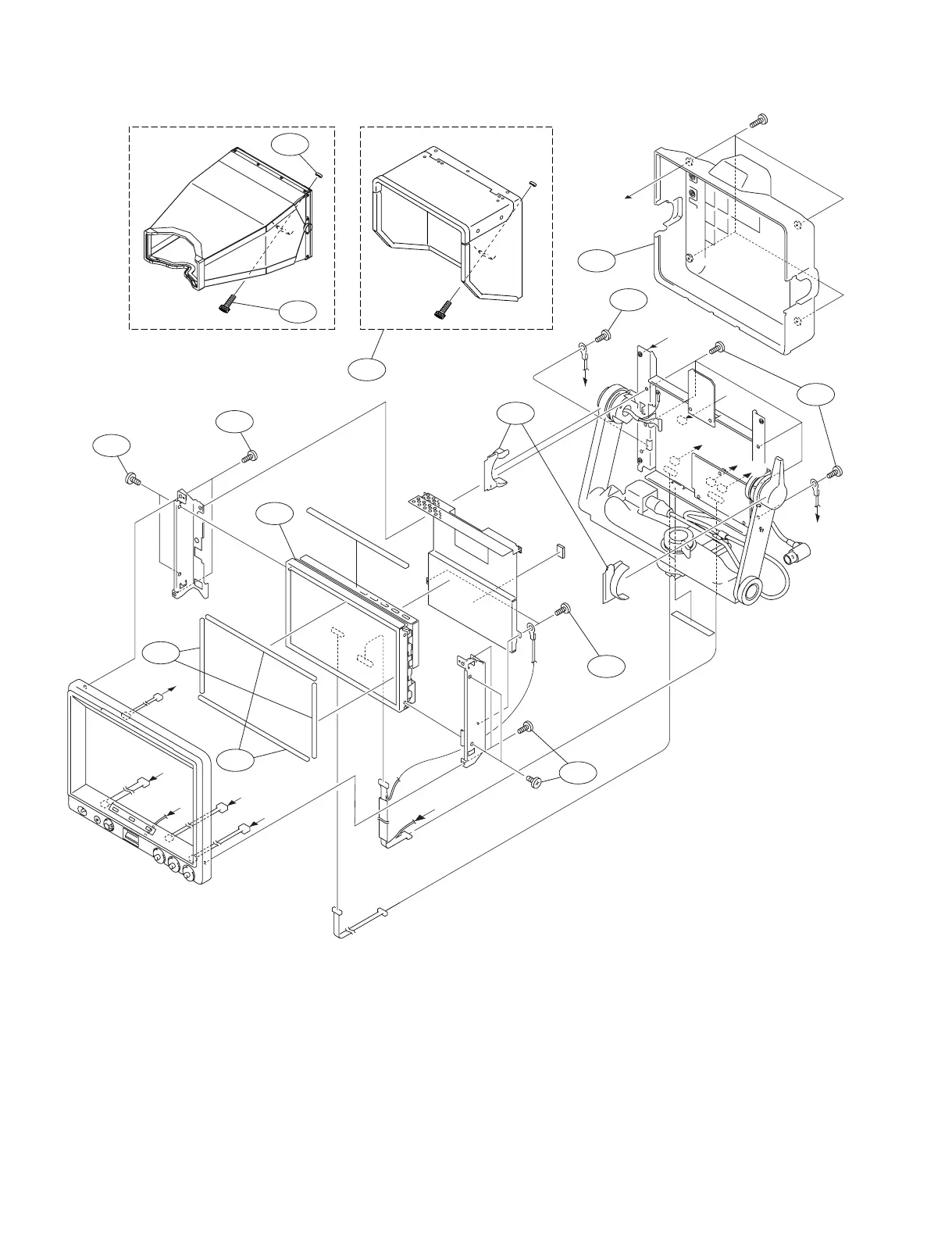

4-2. Exploded Views
3
2
B3 x 8
A
B
G
C
D
A
E
E
B
C
D
8
8
8
1
9
4
5
6
7
8
SUPPLIED ACCESSORYVFH-990
8
8
F
F
G
