Sony HDVF-C950W - Re-237

4-3
HDVF-C950W

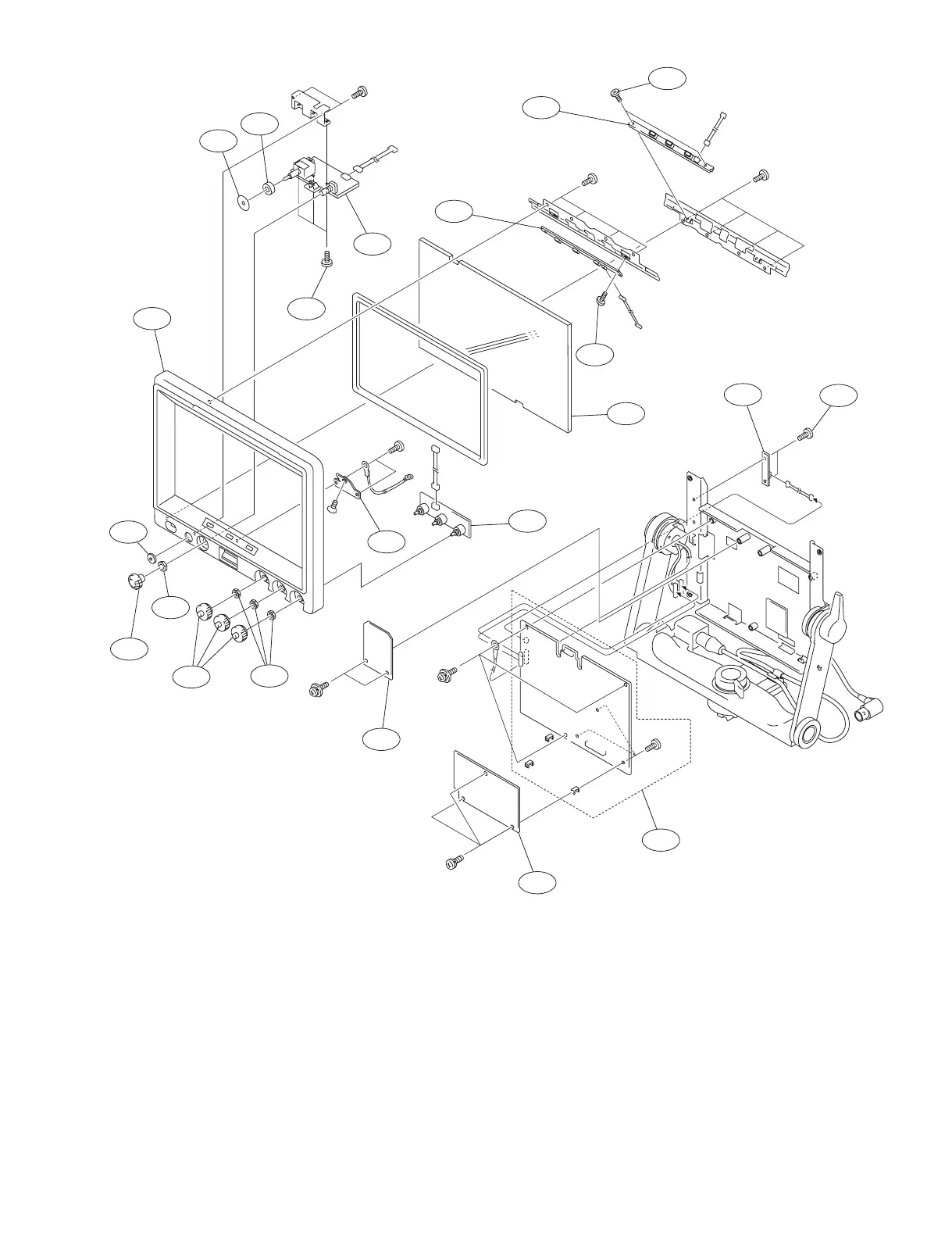

Front and Main
BTP2.6 x 6
BTP2.6 x 6
BTP2.6 x 6
BTP2.6 x 6
K4 x 8
PSW3 x 6
PSW3 x 6
PS2.5 x 5
PS2 x 5
109
116
117
110
118
115
103
108
107
106
104
113
112
105
114
114
114
114
119
111
101
102
No. Part No. SP Description
101 A-1137-282-A s MOUNTED CIRCUIT BOARD, LE-315
102 A-1137-283-A s MOUNTED CIRCUIT BOARD, LE-316
103 A-1137-284-A s MOUNTED CIRCUIT BOARD, LE-317
104 A-1137-285-A s MOUNTED CIRCUIT BOARD, VR-315
105 A-1137-286-A s MOUNTED CIRCUIT BOARD, SW-1298
106 A-1141-332-A s MOUNTED CIRCUIT BOARD, SW-1299
107 A-1211-827-A s MOUNTED CIRCUIT BOARD, PR-292
108 A-1211-828-A s MOUNTED CIRCUIT BOARD, RE-237
109 X-2149-575-1 s KNOB ASSY, VR
110 X-2149-577-1 s BEZEL ASSY
111 2-888-464-01 s CUSHION (PWR SW), PROTECTION
112 2-888-466-01 s PLATE, PROTECTION
113 2-888-618-01 s NUT, HOOD
No. Part No. SP Description
114 3-364-941-01 s SCREW (+B) (2.6X5), NYLOK
115 3-676-244-11 s COVER, SW
116 3-685-104-02 s NUT (M6), CONTROL
117 3-692-111-02 s KNOB, RE
118 3-703-078-02 s NUT
119 3-869-883-01 s RUBER, DROP PROTECTION
7-628-253-15 s SCREW, +PS 2X5
7-628-254-05 s SCREW, +PS 2.6X5
7-682-261-09 s SCREW, +K 4X8
7-682-947-01 s SCREW, +PSW 3X6
7-685-533-14 s SCREW, +BTP 2.6X6 TYPE2 N-S
