10
(US)

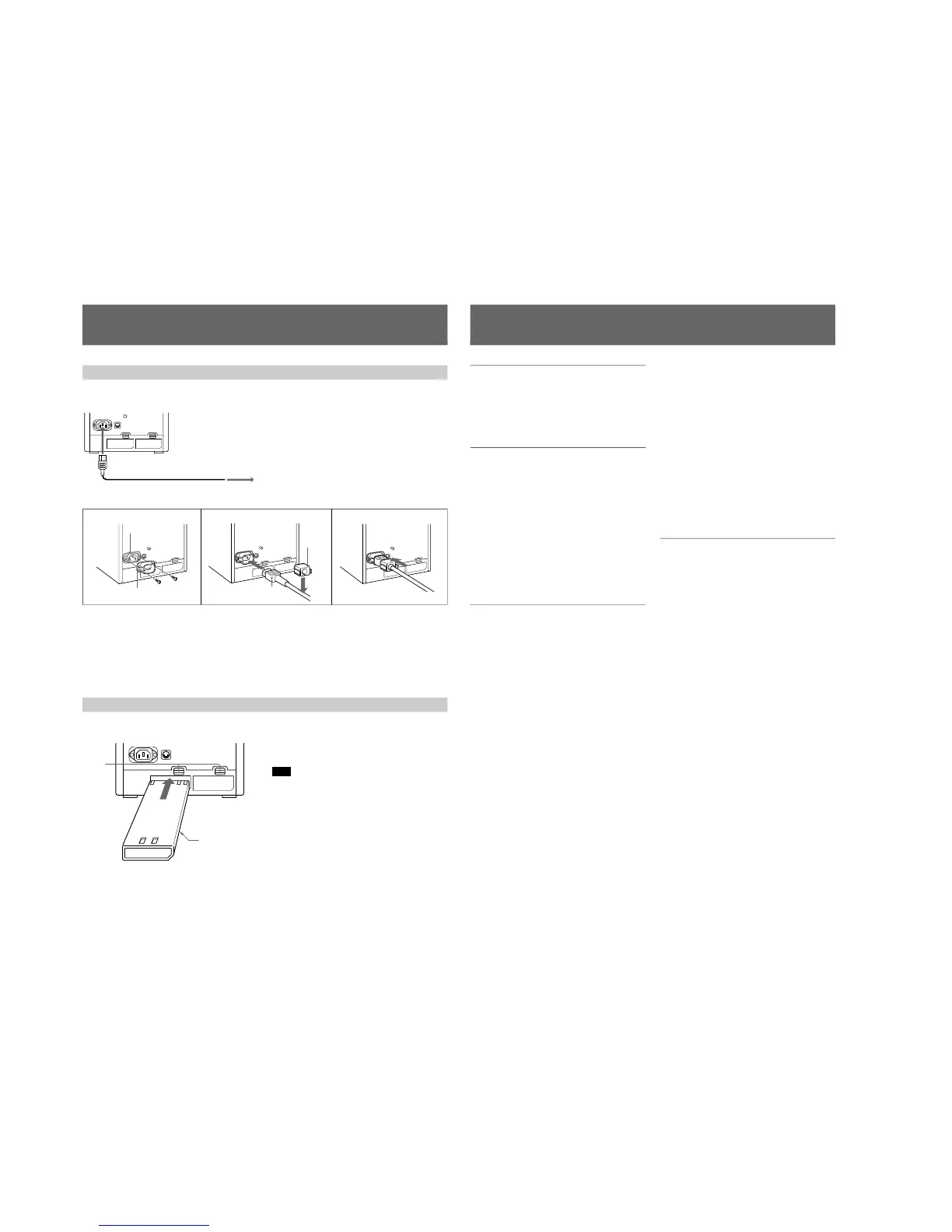

Power Sources
Connect the supplied AC power cord to the AC IN
socket and to a wall outlet.
1
Remove the AC IN socket screws and then use
them to attach the AC plug holder A (supplied) to
the AC IN socket.
2
Plug the power cord to the AC IN sokcet. Then,
attach the supplied AC plug holder B on top of the
AC power cord.
The monitor can operate with one or two battery packs.
For extended use, two battery packs are recommended.
House Current (for all models)
to AC IN
to a wall outlet
When the AC power cord is plugged into the AC IN
socket, the battery pack (if installed) or the AC power
adaptor (if connected) is automatically disconnected.
To connect an AC power cord securely with AC plug holders.
3
21
AC IN socket
AC plug holder A
AC power plug
AC plug
holder B
3
Slide AC plug holder B over the cord until is locks.
To remove the AC power cord
Pull out AC plug holder B by squeezing the left and
right sides.
Rechargeable Battery
To remove the battery pack, press the EJECT button
upwards.
For charging, use the BC-1WD for the NP-1B.
Note
Make sure you disconnect the cables connected to the
connectors (AC IN, DC 12 V IN) at the rear of the
monitor. Otherwise, the monitor cannot operate on the
battery pack(s).
SONY mark downwards
EJECT
buttons
NP-1B
(not supplied)
11
(US)
Specifications
Video signal
Color system PAL-M, NTSC
Resolution 450 TV lines
Aperture correction –4.0 dB to +6.0 dB (at 3.0 MHz)
Frequency response 6.0 MHz (–3 dB) at all inputs
Synchronization AFC time constant 1.0 msec.
Picture performance
Normal scan 6% over scan of CRT effective
screen area
Underscan 3% underscan of CRT effective
screen area
H. linearity Less than 5.0% (typical)
V. linearity Less than 5.0% (typical)
Convergence Central area: 0.43 mm (typical)
Peripheral area: 0.53 mm
(typical)
Raster size stability H: 1.0%, V: 1.5%
High voltage regulation
3.0%
Color temperature D65
Inputs and Outputs
Inputs Y/C IN: 4-pin mini DIN
connector
See the pin assignment on page
12 (US).
VIDEO IN: BNC connector
1 Vp-p ± 6 dB, sync negative
AUDIO IN: phono jack, –5 dBu
a)
,
less than 47 kohms
R/R-Y, G/Y, B/B-Y: BNC
connector
R, G, B channels: 0.7 Vp-p,
± 6 dB Sync on green: 0.3 Vp-p,
negative,
R-Y, Y, B-Y channels: 0.7 Vp-p,
±6 dB (Standard colour bar
signal of 75% chrominance)
EXT SYNC IN: BNC connector
Composite sync 4 Vp-p, ±6 dB,
negative
Loop-through outputs
Y/C OUT: 4-pin mini DIN
connector, 75 ohms terminated
(75 ohms automatic termination)
VIDEO OUT: BNC connector,
75 ohms terminated (75 ohms
automatic termination)
AUDIO OUT: phono jack
EXT SYNC OUT: BNC
connector, 75 ohms terminated
Speaker output Output level 0.5 W
Remote input REMOTE: 8-pin mini DIN
connctor (75 ohms automatic
termination)
See the pin assignment on page
12 (US).
a) 0 dBu = 0.775 Vr.m.s.
General
Power consumption & requirements
0.6 A 45 W MAX at 120 V AC
operation
3.7 A 38 W at 12 V DC operation
Operating conditions
Temperature 0 to +35°C (32 to 95°F)
Humidity 0 to 90% (no condensation)
Pressure 700 to 1060 hPa
Transport and storage conditions
Temperature –10 to +40°C (14 to 104°F)
Humidity 0 to 90%
Pressure 700 to 1060 hPa
Dimensions Approx. 217 x 217 x 352.5 mm
(w/h/d) (8
5
/
8
× 8
5
/
8
× 14 inches)
not incl. projecting parts and
controls
Mass Approx. 8.2 kg (18 lb 1 oz) not
incl. battery packs
Accessory supplied AC power cord (1)
Cable with an 8-pin connector (1)
AC plug holders (1 set)
Tally plate (1)
Design and specifications are subject to change
without notice.
