S MIC Chassis
12 (US)

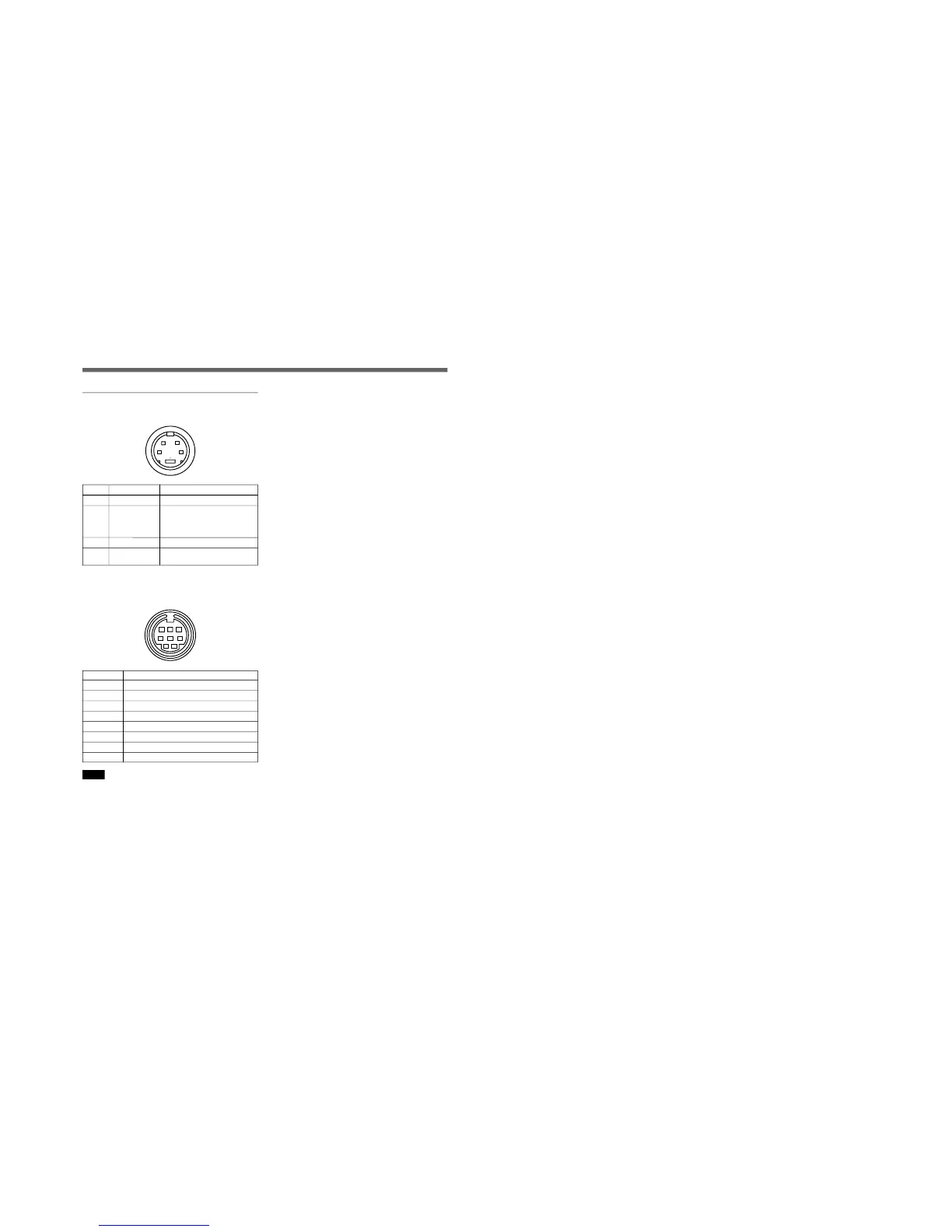

Pin Assignment
Y/C IN connector (4-pin mini DIN)
12
43
Pin No. Signal Description
1 Y-input 1 Vp-p, sync negative, 75 ohms
2 CHROMA 300 mVp-p (PAL-M),
286 mVp-p (NTSC), burst
sub-carrier-input Delay time between Y and
C: within 0 ±100 nsec., 75 ohms
3 GND for Y-input GND
4 GND for
GND
CHROMA-input
REMOTE connector (8-pin mini DIN)
(PVM-8045Q/8042Q only)
12
3
678
45
Pin No. Signal
1 16:9
2 H/V delay
3 GND
4 EXT SYNC
5 Tally
6 Underscan
7 A/B or RGB/Y R-Y B-Y
8 LINE/RGB
Notes
•For remote control, connect the pin of the desired
function to pin 3 (GND).
•For remote control, set the front button to OFF (the
switch is out).
Specifications
