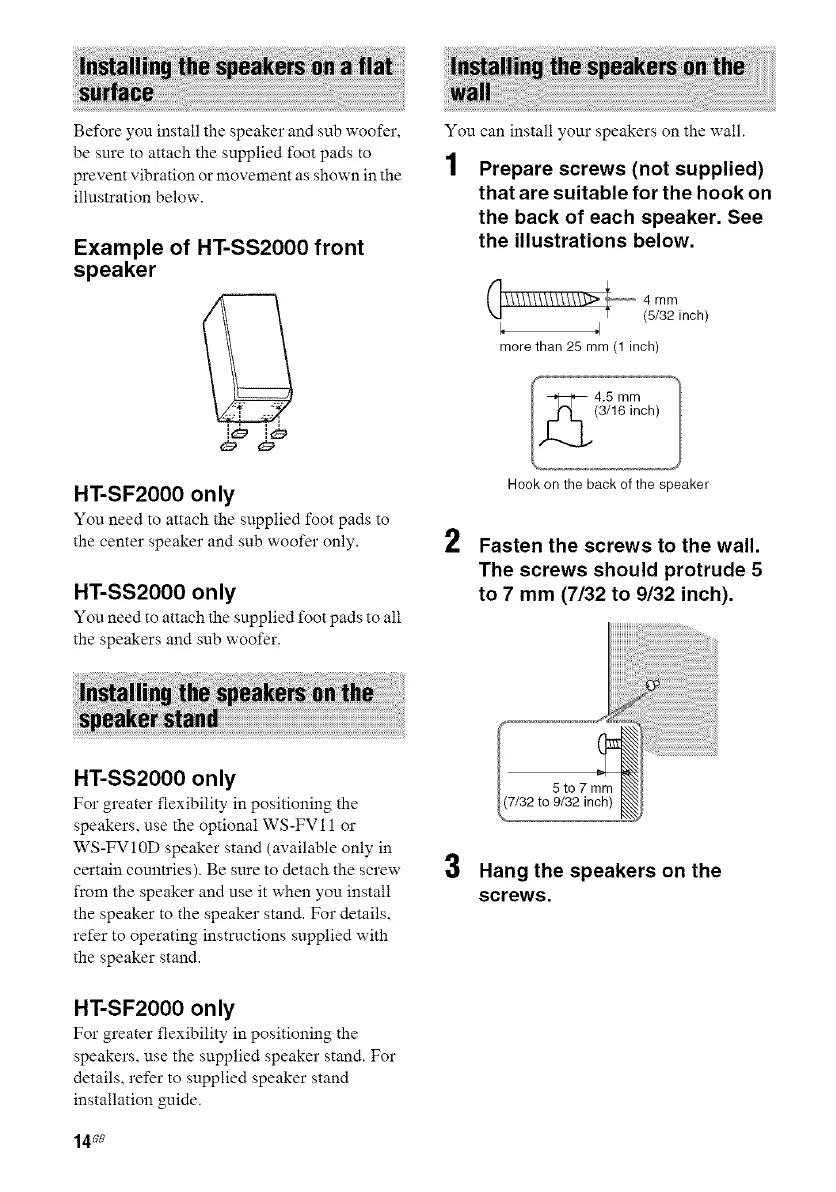

Before you install the speaker and sub woofer,
be sure to attach the supplied foot pads to
prevent vibration or movement as shown in the
illustration below'.
Example of HT-SS2000 front
speaker
HT-SF2000 only
You need to attach the supplied foot pads to
the center speaker and sub woofer only.
HT-SS2000 only
You need to attach the supplied foot pads to all
the speakers and sub woofer.
You can install your speakers on the wall.
Prepare screws (not supplied)
that are suitable for the hook on
the back of each speaker. See
the illustrations below.
4mm
(5/32 inch)
I, ,I
morethan 25 mm (1 inch)
2
Hook on the back of the speaker
Fasten the screws to the wall.
The screws should protrude 5
to 7 mm (7132 to 9/32 inch).
HT-SS2000 only
For greater flexibility in positioning the
speakers, use the optional WS-FV11 or
WS-FV10D speaker stand (available only in
certain countries). Be sure to detach the screw
from the speaker and use it when you install
the speaker to the speaker stand. For details,
refer to operating instructions supplied with
the speaker stand.
HT-SF2000 only
For greater flexibility in positioning the
speakers, use the supplied speaker stand. For
details, refer to supplied speaker stand
installation guide.
14_8
3 Hang the speakers on the
screws.
