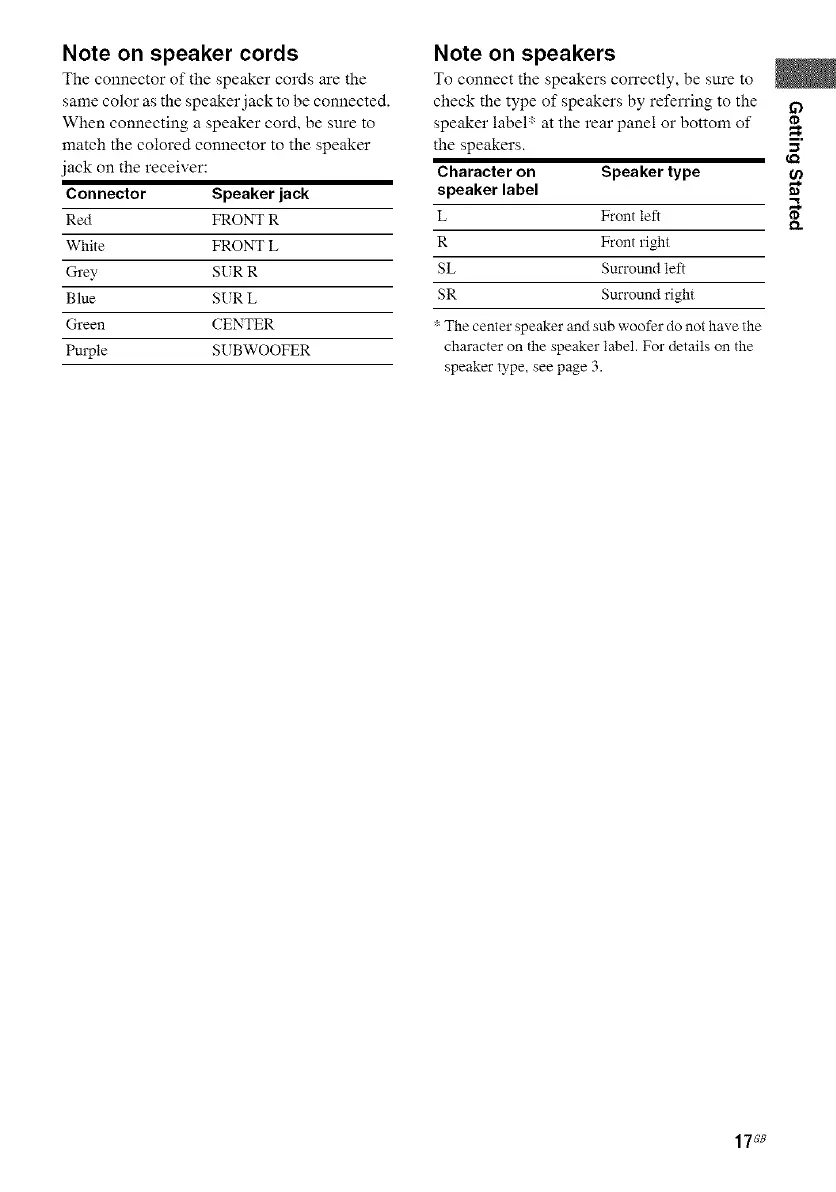

Note on speaker cords
The connector of the speaker cords are the
same color as the speaker jack to be connected.
When connecting a speaker cord, be sure to
match the colored connector to the speaker
jack on the receiver:
Connector Speaker jack
Red FRONT R
White FRONT L
Grey SUR R
Blue SUR L
Green CENTER
Pm_le SUBWOOFER
Note on speakers
To connect the speakers correctly, be sure to
check the type of speakers by referring to the
speaker label:": at the rear panel or bottom of
the speakers.
Character on Speaker type
speaker label
L _ont left
R Frontright
SL Surround left
SR Surround right
The center speaker and sub woofer do not haxe the
character on the speaker label. For details on the
speaker type, see page 3.
