– 26 –

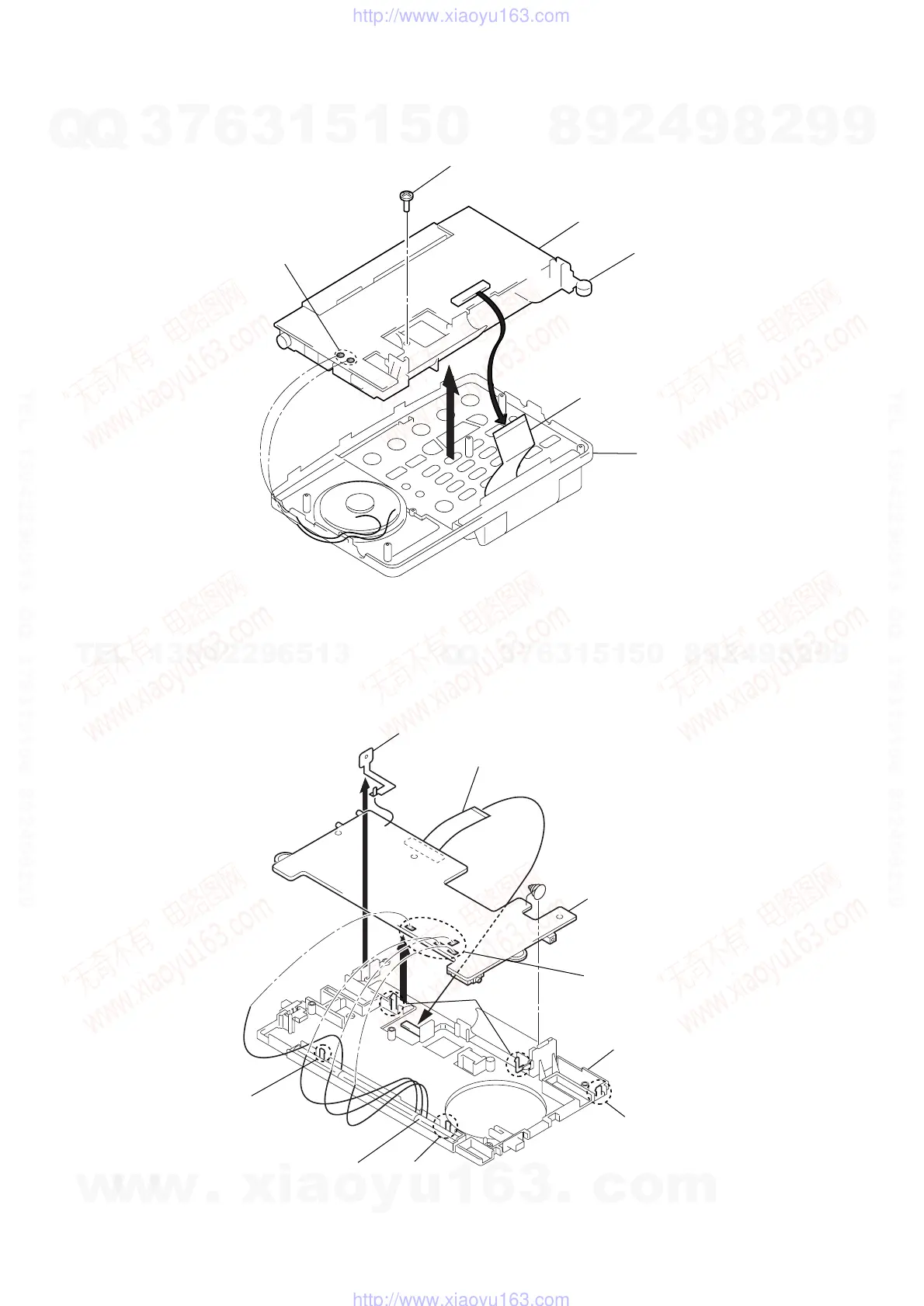

3-3. MAIN BOARD
3-2. CHASSIS ASSY
2
Screw (1.4x4)
1
3
4
Remove solder
Flexible board
Main board
Chassis ASSY
Cabinet ASS
Brown
Black
1
Remove solder
2
4
5
Flexible board
(Key board:CN701)
3
Claw
3
Claws
3
Claw
3
Claw
Terminal (+), Battery
Main board
Chassis
Yellow
Green
Black
Pink
Ferrite-rad anttena (MW/LW)
Caution :
A portion of the chassis and cabinet ASSY
are joined by adhesive sheet so use caution
during removal.
Caution :
A portion of the chassis and main
board are joined by adhesive sheet
so use caution during removal.
