Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
* 51 A-3683-027-A MAIN BOARD, COMPLETE
52 1-672-549-11 FLEXIBLE BOARD
53 3-031-529-01 TERMINAL (-), BATTERY
54 3-031-491-01 BUTTON (10 KEY)
55 X-3376-861-1 CABINET ASSY
56 3-031-511-01 KNOB(HOLD)
57 3-031-512-01 LEVER (HOLD)
58 3-895-823-11 SCREW (B1.4X3), TAPPING
59 3-031-519-01 KNOB(ATT)
* 60 A-3683-026-A KEYBOARD, COMPLETE
* 61 A-3638-687-A CONNECTOR ASSY
62 3-384-797-01 SCREW
63 3-031-494-01 CHASSIS
64 3-031-520-01 KNOB(TONE)
65 3-031-518-01 TERMINAL (+), BATTERY
66 3-033-844-01 LEAF(3.64M), COPPER
67 3-355-482-01 SHEET (KT), ADHESIVE
ANT101 1-501-657-22 FERRITE-ROD ANTENNA (MW/LW)
SP301 1-505-165-11 SPEAKER (4cm)

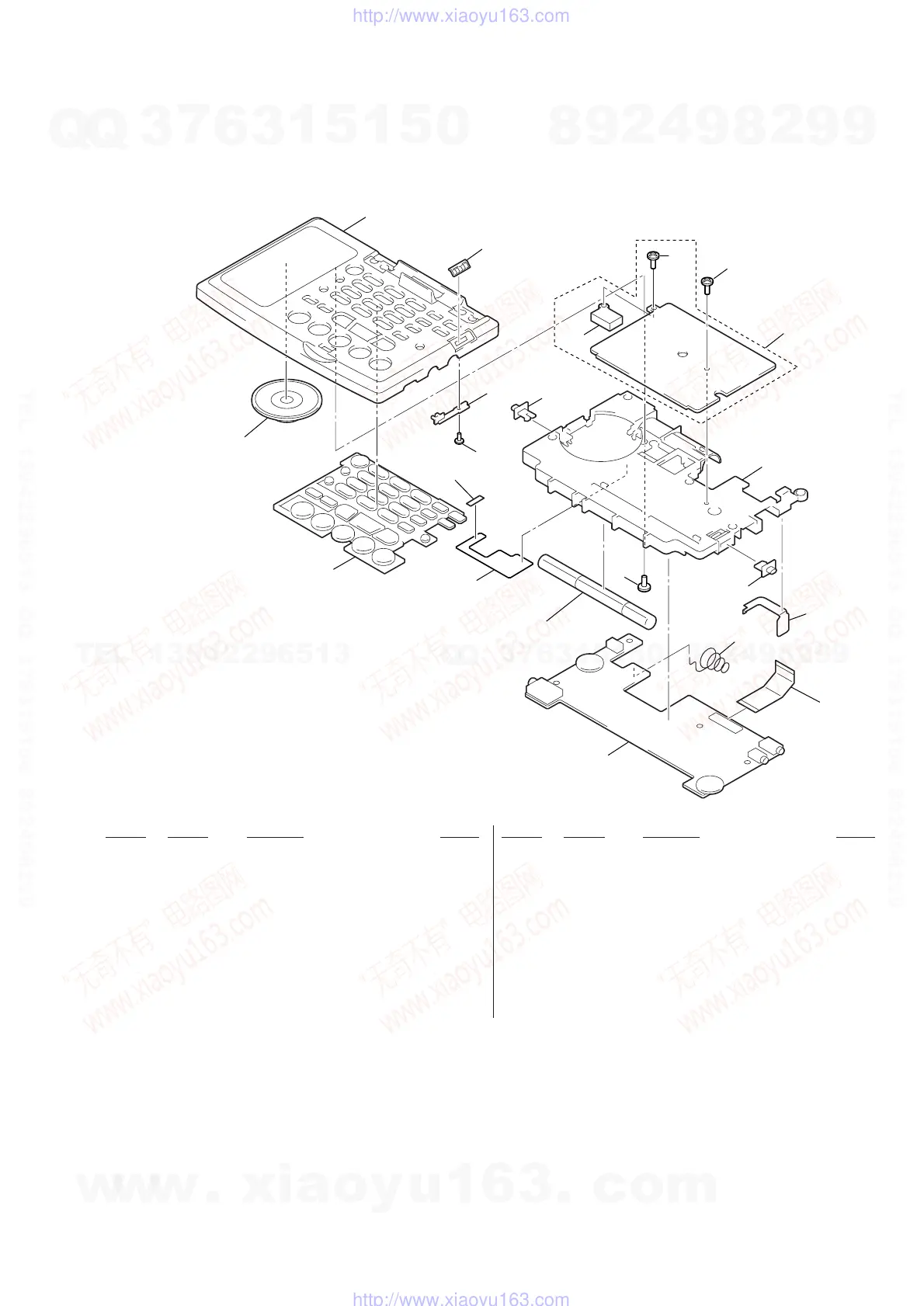

6-2. CHASSIS SECTION
51
52
53
54
55
56
57
62
58
67
59
60
61
62
58
63
64
65
66
SP301
ANT101
