3-2. KD-49X7*E

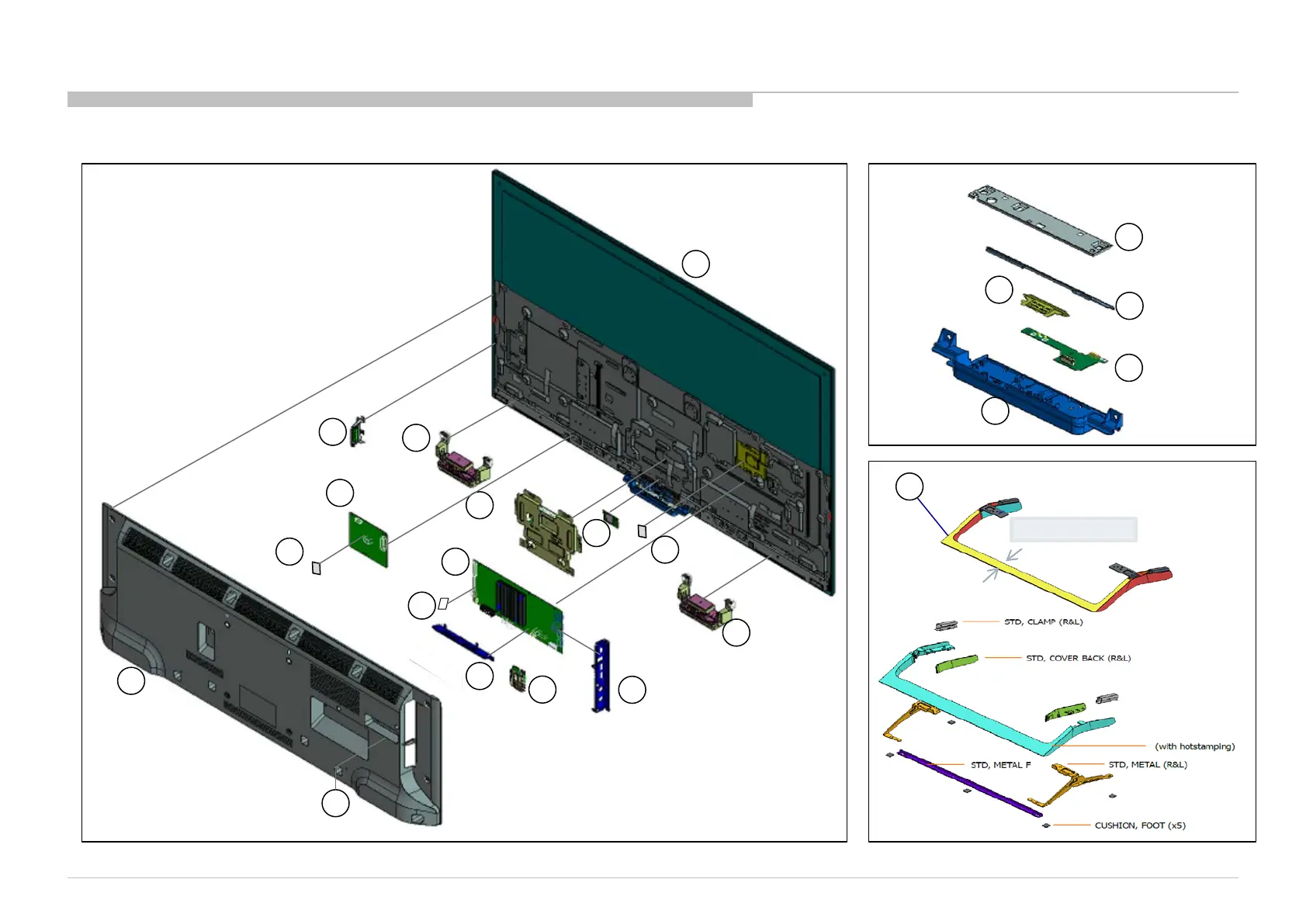

3-2-1. Disassembly, Exploded View
P-MOD
BB8
BOARD
9
LD1
BOARD
1
LABERL, UNDER
TERMINAL
BRACKET,
UNDER
5
REAR COVER
2
SHEET,
THERMAL
(BM)
13
T-CON
8
LOUDSPEAKER
3
LOUDSPEAKER
3
BRACKET, SIDE
4
SWITCH
UNIT
6
CARD,
WIRELESS
LAN
7
UNIVERSAL
SIL-TU
11
SHEET,
THERMAL
(BM)
13
SHEET,
THERMAL
(BAF
)
12
10
14
STAND, BASE
Narrow Type
51
74
SMART CORE
COVER, TOP (CPN)
72
GUIDE, LIGHT
71
PANEL,
ORNAMENT (FRE)
75
HKZ MOUNT
73
CASE, BOTTOM
(FRE)
