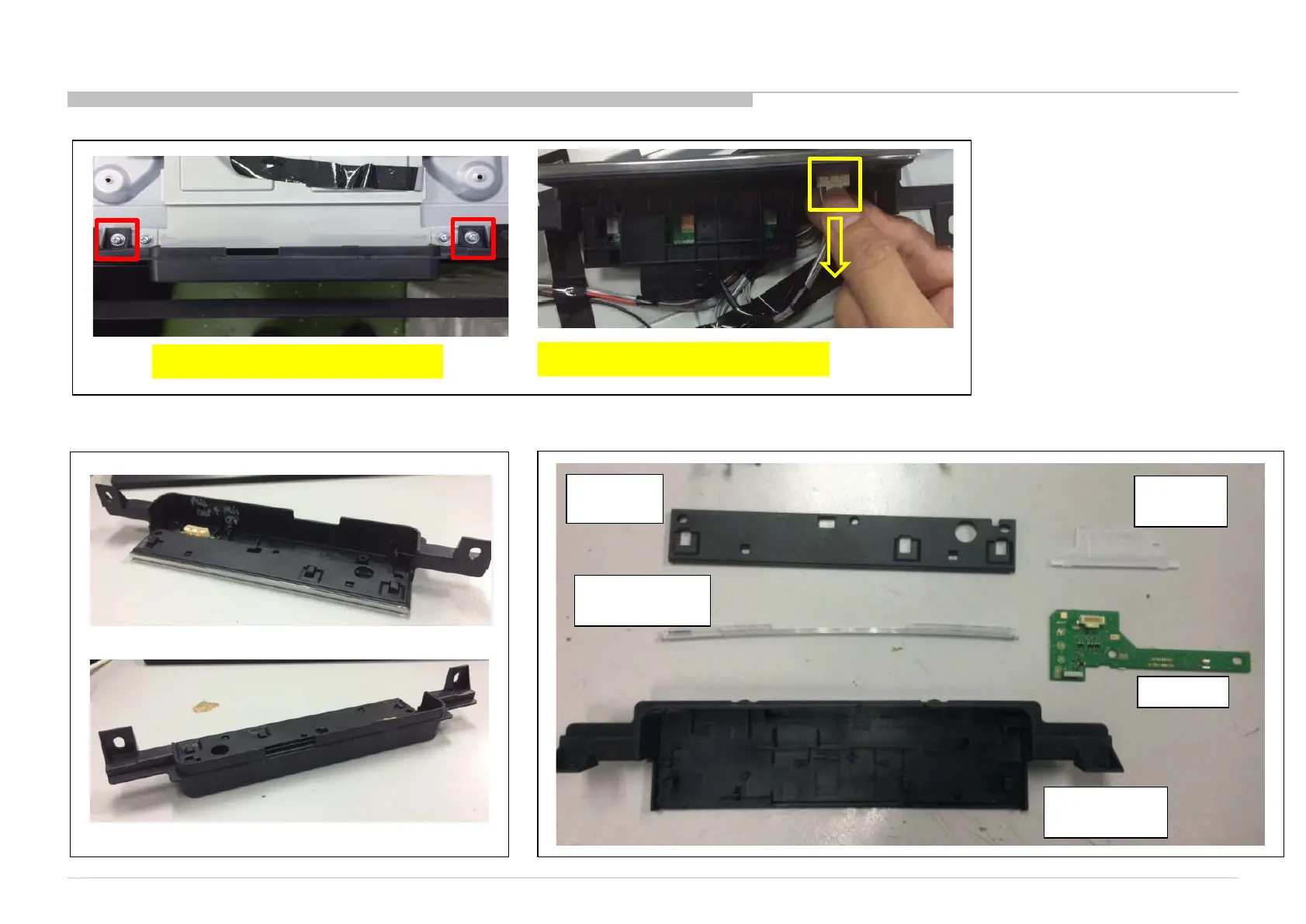

Disassemble Smart Core From Set
1. Remove screw in red box
2. Remove harness
Smart Core Structure
FRONT VIEW
BACK VIEW
CASE,
BOTTOM
H board
PANEL,
ORNAMENT
LIGHT,
GUIDE
COVER,
TOP
