Sony KD-43X720E - 3-3. KD-55 X7*E; 3-3-1. Disassembly, Exploded View

STD, Neck (R&L)
Foot stand (x5)
STD, Metal (R&L)
STD, Clamp (R&L)
STD, Cover Back (R&L)
STD, Metal F
With Hot stamping
Narrow Type
53
3-2. KD-55X7*E

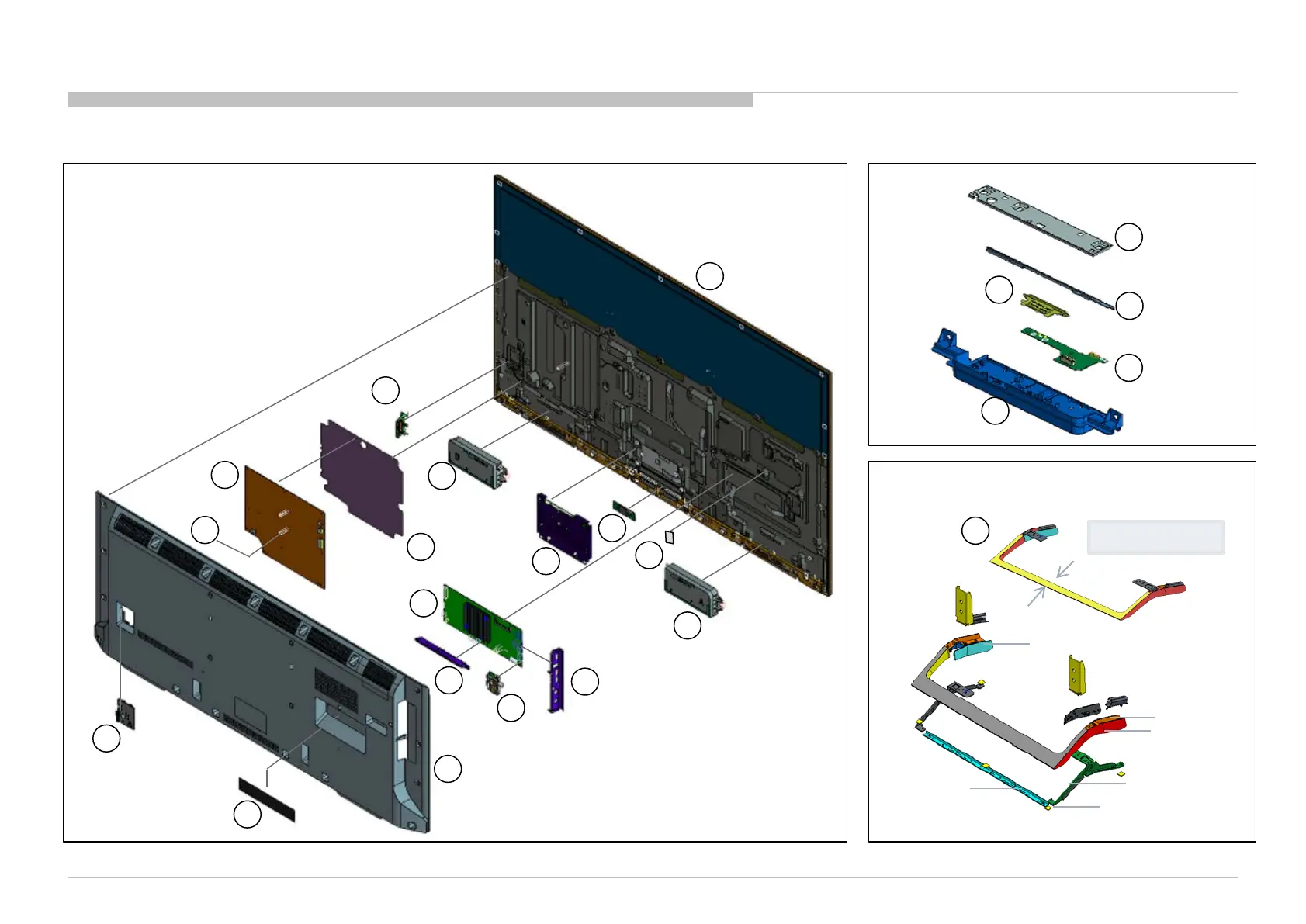

3-2-1. Disassembly, Exploded View
G BOARD
9
SPACER
2
LABERL, UNDER
TERMINAL
AC COVER
1
16
T-CON
BB8 BOARD
SPEAKER BOX
ASSY L
6
BRACKET, SIDE
5
SWITCH
UNIT
8
UNIVERSAL
SIL-TU
12
SHEET,
THERMAL
(BM)
11
SHEET,
INSULATION
13
15
14
STAND, BASE
51
74
SMART CORE
COVER, TOP (CPN)
72
GUIDE, LIGHT
71
PANEL,
ORNAMENT (FRE)
75
HKZ MOUNT
73
CASE, BOTTOM
(FRE)
4
BRACKET,
UNDER
REAR
COVER
3
SPEAKER BOX
ASSY R
7
LCD PANEL
17
CARD,
WIRELESS
LAN
10
