3-2. KD-65X7*E

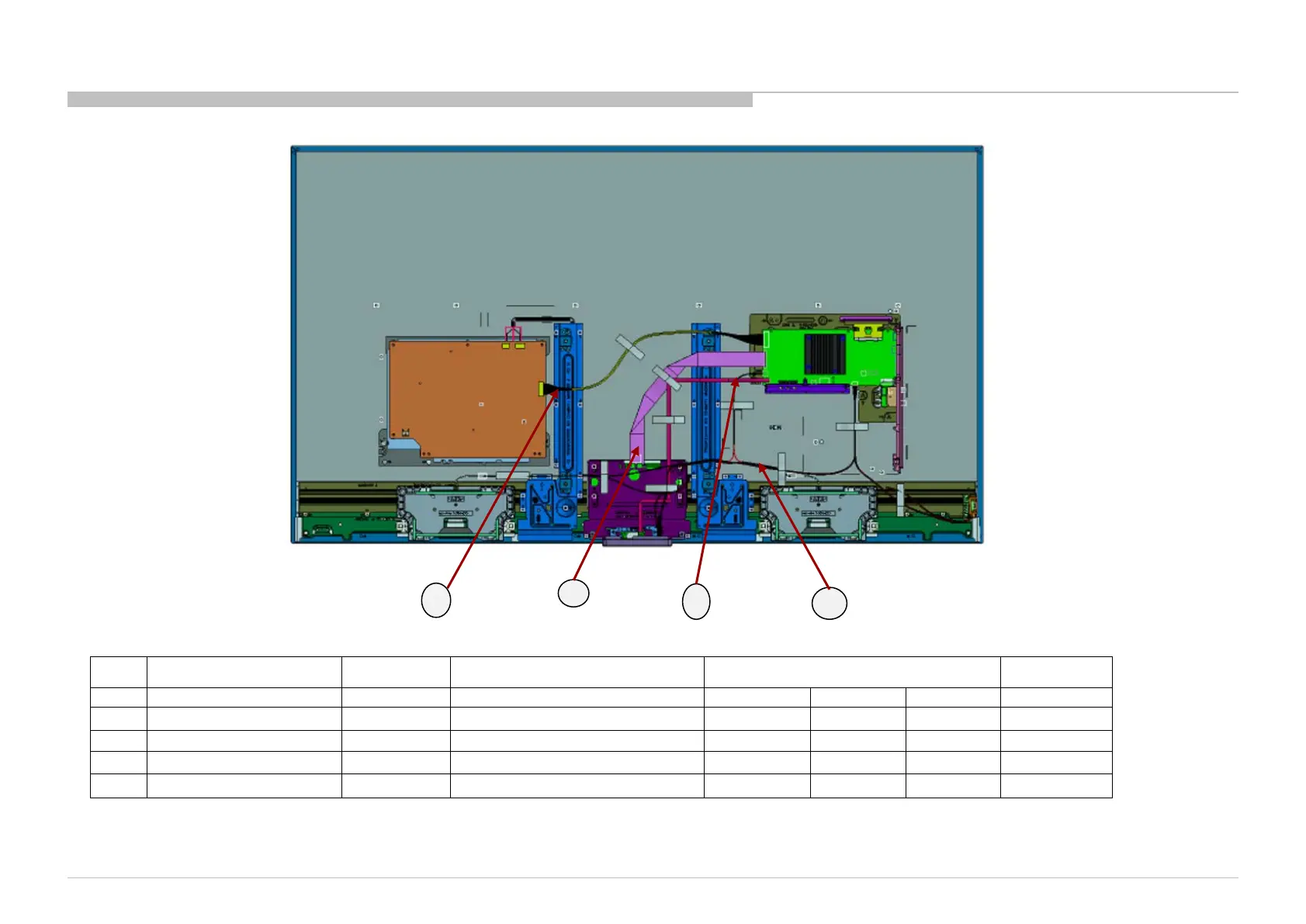

3-2-3. Connectors
WILL BE UPDATED SOON
82
81
83
84
REF.
NO.
DESCRIPTION PART NO.
KD-65X725E KD-65X727E
ECU LA8 AR4 CO1
81 CONNECTOR ASSY 30P 1-910-806-16
CN5500(BB8)
-CN6401(G)(1)
•
•
•
•
82 FLEXIBLE FLAT CABLE 5P
1-912-076-11
CN9500(BB8)
-WIFI (1) • • • •
83 FLEXIBLE FLAT CABLE 51P 1-912-086-11
CN9000(BB8)
-TCON (1)
•
•
•
•
84 HARNESS ASSY 1-910-806-15
CN9501(BB8)
-CN203(SM)-CN001(HKZ)(1) • • • •
