Sony KV-27FS13 - Picture Tube Removal (KV-27 FV17;29 FV17;29 FV17 C ONLY)

— 57 —
KV-27FS13/ 27FS17/ 27FV17/ 29FV17/ 29FV17C/ 32FS13/32FS17/ 34FS13C/ 34FS17
NOTE: The components identifi ed by shading and ! mark are critical for safety.
Replace only with part number specifi ed.
NOTE: Les composants identifi es par un trame et une marque ! sont critiques pour
la securite. Ne les remplacer que par une piece portant le numero specifi e.
REF. NO. PART NO. DESCRIPTION [Assembly Includes] REF. NO. PART NO. DESCRIPTION

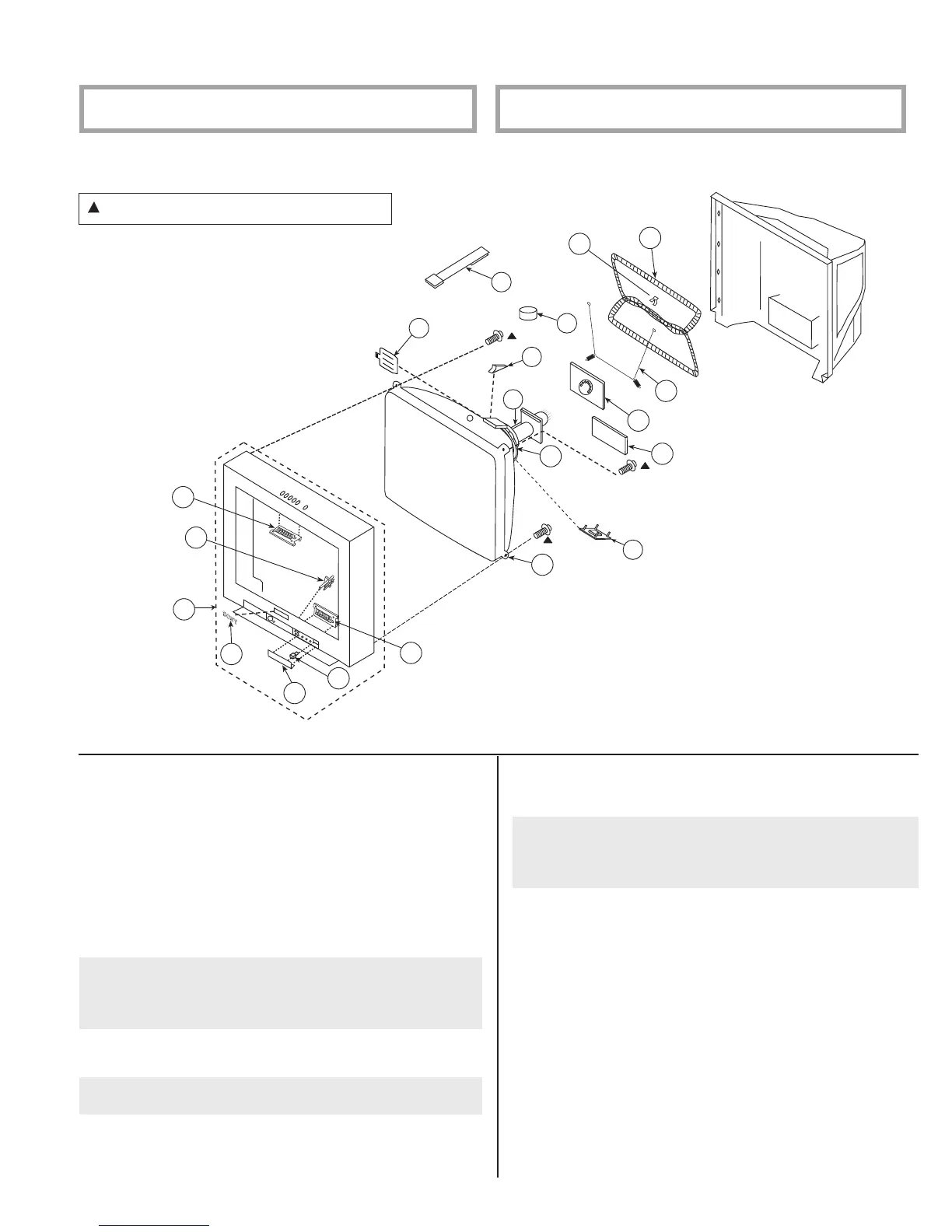

6-2. PICTURE TUBE REMOVAL (KV-27FV17/29FV17/29FV17C ONLY)
1 X-4038-944-1 BEZNET ASSY [2-4]
(KV-27FV17 ONLY)
1 X-4037-842-2 BEZNET ASSY [2-4]
(KV-29FV17/29FV17C ONLY)
2 3-704-179-31 EMBLEM (NO.9), SONY
3 X-4037-631-3 DOOR
4 3-703-574-00 RETAINER, DOOR
5 4-068-986-11 GUIDE, LED
6 4-068-982-11 MULTI-BUTTON (TOP)
7 4-068-984-01 MULTI-BUTTON (BOTTOM)
! 8 8-735-082-05 CRT 29RSN(SDP)
(KV-27FV17/29FV17 ONLY)
! 8 8-735-083-05 CRT 29RSN(SDP)(SOUTH)
(KV-29FV17C ONLY)
9 1-452-032-00 MAGNET,DISC
10 4-053-005-01 SPACER, DY
! 11 8-451-494-41 DY Y29RSA-V
! 12 8-453-011-11 NA299-M (NECK ASSEMBLY)
13 4-081-170-01 PLATE, TLH CORRECTION
14 1-452-896-11 COIL, NA ROTATION (RT200)
15
16
17
18
6
5
2
3
1
4
7
8
9
10
11
12
13
14
20
19
* 15 A-1332-063-A CA (VAR) MOUNTED PC BOARD
* 16 A-1342-550-A VA (VAR) MOUNTED PC BOARD
17 4-036-329-01 SPRING (B), TENSION
! 18 1-419-156-21 COIL, DEGAUSSING
(KV-27FV17/29FV17 ONLY)
! 18 1-419-523-21 COIL, DEGAUSSING
(KV-29FV17C ONLY)
* 19 4-062-970-12 CLIP (29RSN), DGC
20 4-062-047-02 PIECE A(110), CONV CORRECT
4-046-765-12 SCREW, TAPPING 7+CROWN WASHER
