Sony KV-27FS13 - Chassis (KV-27 FS13;27 FS17 ONLY)

— 58 —
KV-27FS13/ 27FS17/ 27FV17/ 29FV17/ 29FV17C/ 32FS13/32FS17/ 34FS13C/ 34FS17
NOTE: The components identifi ed by shading and ! mark are critical for safety.
Replace only with part number specifi ed.
NOTE: Les composants identifi es par un trame et une marque ! sont critiques pour
la securite. Ne les remplacer que par une piece portant le numero specifi e.
REF. NO. PART NO. DESCRIPTION [Assembly Includes] REF. NO. PART NO. DESCRIPTION

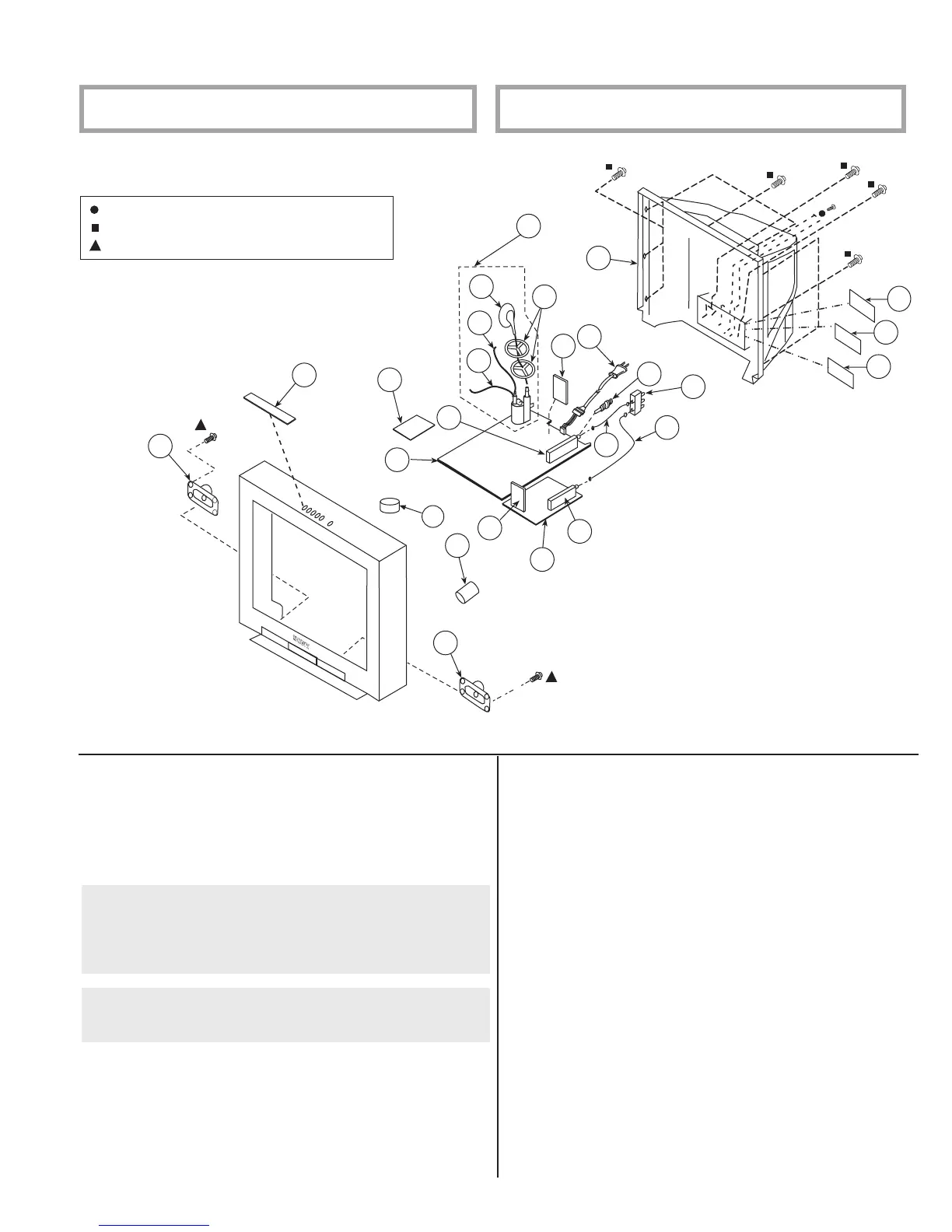

6-3. CHASSIS (KV-27FS13/27FS17 ONLY)
7-685-648-91 SCREW +BVTP 3 x 12 TYPE 2 TTB
7-685-663-91 SCREW +BVTP 4X16 TYPE2 TTB
4-388-477-02 SCREW (3X16) TAPPING, BV WASHER
* 1 A-1372-817-A HX MOUNTED PC BOARD
2 1-529-638-11 SPEAKER (6X12CM)
* 3 A-1299-502-A A COMPLETE PC BOARD (KV-27FS13 ONLY)
* 3 A-1299-503-A A COMPLETE PC BOARD (KV-27FS17 ONLY)
The high-voltage leads associated with the FBT on this board are not
included and must be ordered separately. (See 6-8.)
! 4 1-792-874-11 CORD, AC POWER (WITH CONNECTOR)
! 5 1-453-310-11 FBT ASSY NX-4521//X4J4 [6-8]
! 6 1-251-374-13 HV CAP ASSY
! 7 1-900-800-82 FOCUS LEAD
! 8 1-900-803-22 G2 LEAD
! 9 8-598-542-20 TUNER, FSS BTF-WA412
! 10 8-598-501-30 TUNER, FSS BTF-FA402
(KV-27FS17 ONLY)
11 8-598-414-20 CHANGER, ANTENNA AS-2F
(KV-27FS17 ONLY)
12 3-704-372-71 HOLDER, HV CABLE
13 4-075-652-11 COVER, REAR
The labels associated with the rear cover are not included and must be
ordered separately (See 17-19).
* 14 A-1304-200-A MA (VAR) MOUNTED PC BOARD
(KV-27FS13 ONLY)
* 14 A-1304-198-A MA (VAR) MOUNTED PC BOARD
(KV-27FS17 ONLY)
* 15 A-1380-632-A K (VAR) MOUNTED PC BOARD
* 16 A-1343-875-A D (VAR) MOUNTED PC BOARD
17 4-075-666-01 LABEL, 2-TUNER ANTENNA
(KV-27FS17 ONLY)
18 4-075-664-01 LABEL, 1-TUNER ANTENNA
(KV-27FS13 ONLY)
19 4-075-665-01 LABEL, TERMINAL
20 1-452-094-00 CIRCULAR DISC MAGNET B
* 21 A-1190-391-A P MOUNTED PC BOARD
(KV-27FS17 ONLY)
22 1-500-586-11 FILTER, CLAMP (FERRITE CORE)
23 1-557-056-31 CABLE. P-P (KV-27FS17 ONLY)
24 1-783-800-11 CABLE, PIN (KV-27FS17 ONLY)
25 1-766-374-11 PLUG, F-PIN (KV-27FS13 ONLY)
23
24
9
11
15
25
6
7
8
5
12
13
3
4
16
17
20
22
14
21
10
1
2
2
18
19
