Sony MHC-V5 Service Manual

MHC-V5
12

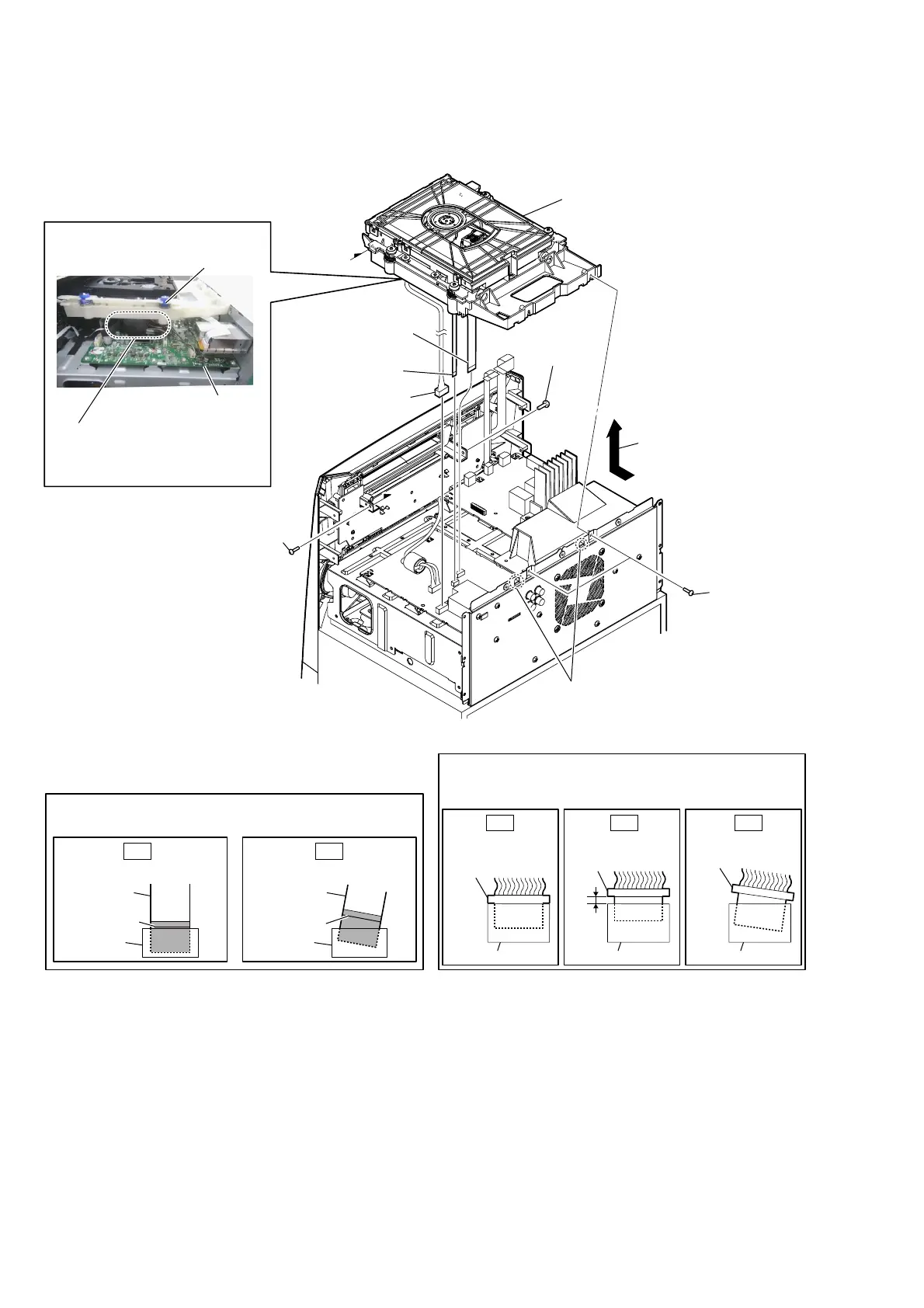

2-6. CDM BLOCK-2
3 Remove the CDM block
in the direction of the arrow.
5 flexible flat cable
(5 core) (CN303)
6 flexible flat cable
(24 core) (CN302)
7 CDM block
CDM block
WireVeWWiQJ
ARAGON board
–7RSreDrYieZ–
1 two screws
(BVTP3 u 10)
2 two hooks
1 screw
(BVTP3 u 10)
4 connector
(CN401)
1 screw
(BVTP3 u 10)
Note 2:
When installing the flexible flat cable,
ensure that
the colored line is not slanted after insertion.
colored line
colored line
Insert is straight to the interior. Insert is incline
flexible flat
cable
flexible flat
cable
connectorconnector
OK NG
Note 1:
Connect the wire from the CDM
block to the ARAGON board and
place it neatly inside the CDM
block.
Note 3:
When you install the connector, please install them correctly.
There is a possibility that this machine damages when not
correctly installing it.
Insert is shallow
Insert is straight
to the interior.
connector
Insert is incline
connector
connector
connector
connector connector
OK NG NG

Sony MHC-V5 Specifications

General

On/off switch	Yes
Product color	Black
Recommended usage	Universal
Suitable for outdoor use	-
Speaker type	3-way
Driver diameter	250 mm
Speaker position	Front
Tweeter diameter	40 mm
Number of drivers	3
Speaker placement	Floor
Audio output channels	1.0 channels
Mid-range driver diameter	100 mm
Number of tweeter drivers	1
Recommended amplifier power (max)	240 W
Recommended amplifier power (min)	0.5 W
Impedance	5 Ω
Frequency range	- Hz
RMS rated power	1440 W
Peak Music Power Output (PMPO)	15840 W
Number of amplifier channels	2 channels
Power source type	AC
USB 2.0 ports quantity	2
Connectivity technology	Wired & Wireless
AC input voltage	120 V
AC input frequency	60 Hz
Type	Home audio mini system

Weight and Dimensions

Depth	325 mm
Width	339 mm
Height	908 mm
Weight	18000 g
