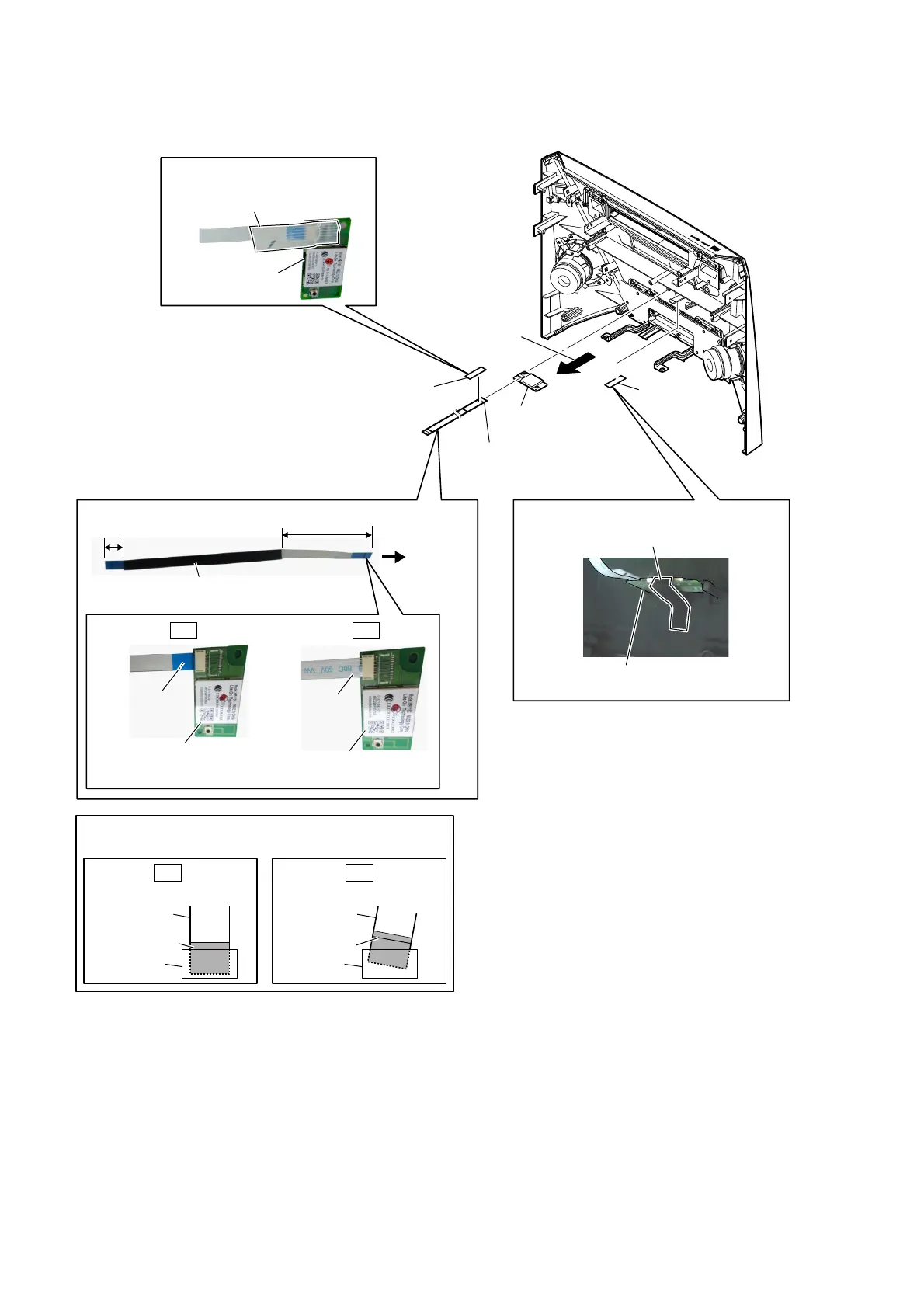

2-24. BLUETOOTH MODULE (BT1)
filament tape
(sub material)
3 filament tape
(sub material)
5 bluetooth module
(BT1)
bluetooth module
(BT1)
1 cishion (H)
4 wire (flat type) (10 core)
(FFC7)
wire (flat type) (10 core)
(FFC7)
short
long
bluetooth module
(BT1)
cushion (H)
WireVeWWiQJ
WireVeWWiQJ
Note:
When installing the wire (flat type),
ensure that
the colored line is not slanted after insertion.
colored line
colored line
Insert is straight to the interior. Insert is incline
wire (flat type) wire (flat type)
connectorconnector
OK NG
+RZWRiQVWDOOWKeEOXeWRRWKPRGXOe%7
to
bluetooth
module
(BT1)
OK NG
Terminal face is
below side
Terminal face
bluetooth module
(BT1)
bluetooth module
(BT1)
2 Remove the bluetooth
module (BT1) in the
direction of the arrow.
–)rRQWSDQeOreDrYieZ–
