Sony MHC-V5 - NFC Module (NFC1)

MHC-V5
30

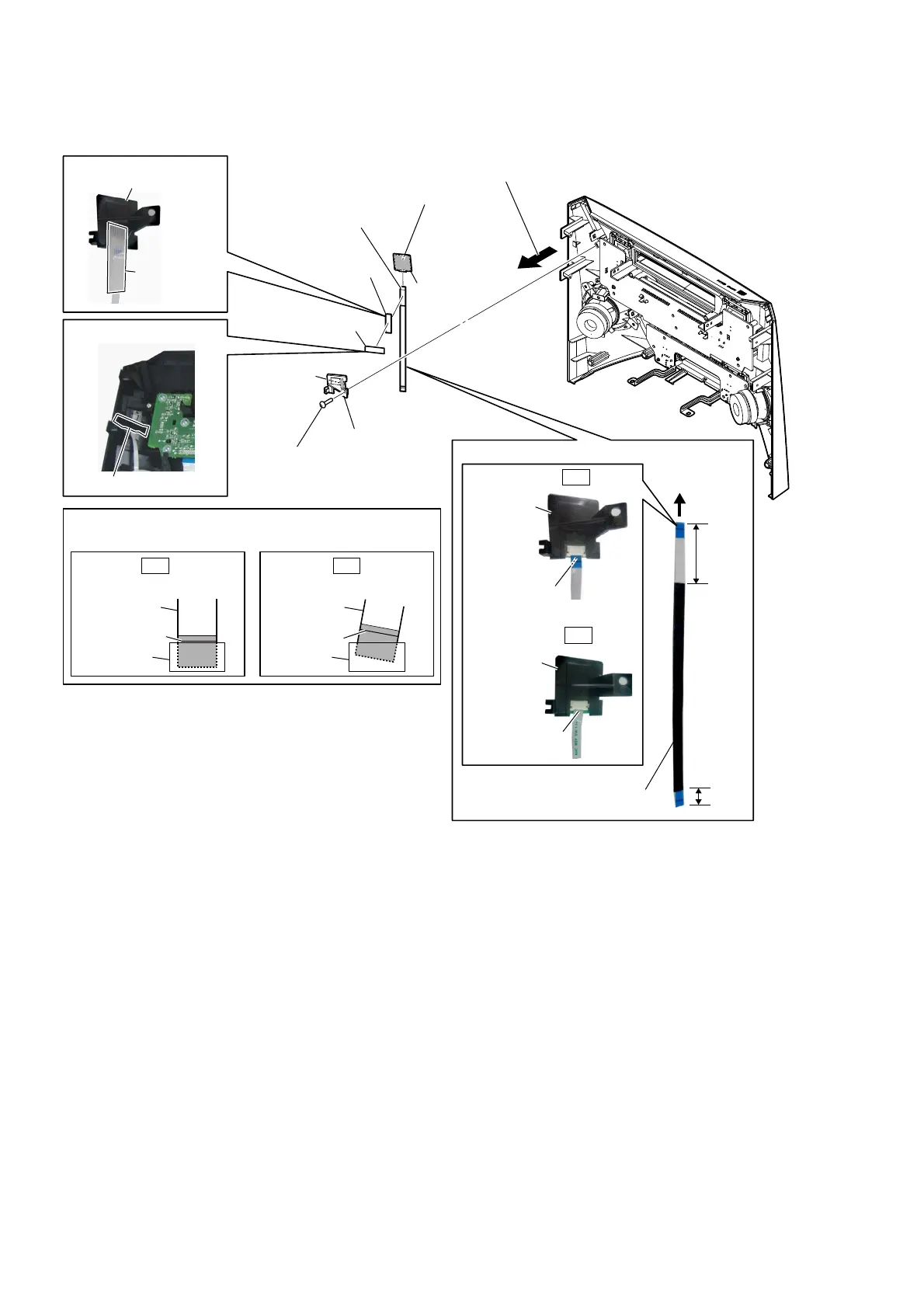

2-26. NFC MODULE (NFC1)
5 filament tape
(sub material)
9 NFC module
(NFC1)
WireVHWWLQJ
filament tape
(sub material)
NFC module block
8 NFC holder
2 screw
(BVTP3 u 8)
6 wire (flat type) (8 core)
(FFC6)
NFC module
block
NFC module
block
wire (flat type) (8 core)
(FFC6)
1 cushion (H)
cushion (H)
3 Peel off the adhesive sheet (NFC).
7 Peel off the
tape (NFC).
long
Note:
When installing the wire (flat type),
ensure that
the colored line is not slanted after insertion.
colored line
colored line
Insert is straight to the interior. Insert is incline
wire (flat type) wire (flat type)
connectorconnector
OK NG
WireVHWWLQJ
4 Remove the NFC module block
in the direction of the arrow.
WireVHWWLQJ
OK
NG
Terminal face is
below side
Terminal face
short
to
NFC module
(NFC1)
–)URQWSDQHOUHDUYLHZ–
